Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant
Specifications
Model Number :
Customized
Certification :
CE Certificate
Place of Origin :
China Liaoning
MOQ :
200square meter
Price :
19.98-49.98 dollar per quare meter
Payment Terms :
T/T,Western Union
Delivery Time :
15-20days
Brand Name :
Artisan Metal Structures
Frame material :
Aluminum 6061 / T6,anti-rust surface
Color :
White,Red,blue,Clear or Customized Color,Can be customized
Warranty :
5 Years
Snow load :
75KG/SQM,0.3KN/sqm
Wind resistance :
100km/h
Connectors :
Hot-DIP Galvanized
Fixing solution :
ground anchor,expandable bolt,weight plate,etc,ect.
Description

Products Introduce

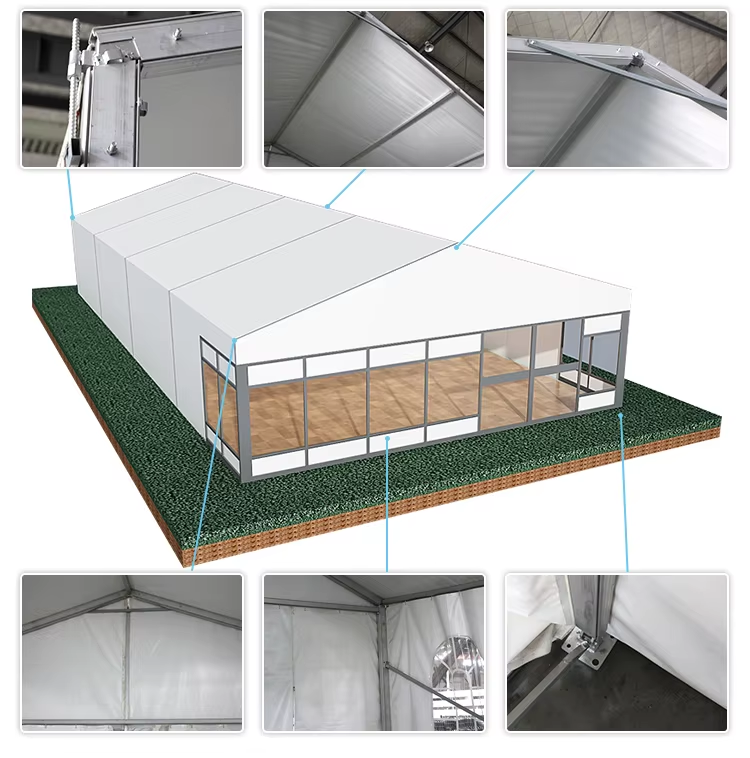

Frame
4 channels, hard pressed extruded aluminium alloy 6061/T6.
(Surface anodized finish. Anti rust.)
Roof Cover
1) Opaque, water proof, 850g/m². Flame retardant PVC-coated Polyester.
2) Inflatable PVC roof with thermal insulation and heat preservation features.
Side Wall
1) 750g/m² PVC-coated Polyester
2) Sandwich wall
3) Corrugated steel plate
Wind Resistance
80~140km/h
Fixing Solution
Ground anchor, expandable bolt, weight plate, etc.
Service Life
More than 15 years
Applicable temperature range
-30 degree Celsius ~ +70 degree Celsius
Ground Situation
Grassland,earth land,asphalt,cement ground,marble,etc
Connectors
Hot-dip galvanized twin plate;expansion bolts to fix tent
Additional Services
1) Provide engineering calculations for tent structure's wind, snow, and seismic resistance.
2) KENTEN's technical professionals provide on-site installation guidance services.
Frame
4 channels, hard pressed extruded aluminium alloy 6061/T6.
(Surface anodized finish. Anti rust.)
Roof Cover
1) Opaque, water proof, 850g/m². Flame retardant PVC-coated Polyester.
2) Inflatable PVC roof with thermal insulation and heat preservation features.
Side Wall
1) 750g/m² PVC-coated Polyester
2) Sandwich wall
3) Corrugated steel plate
Wind Resistance
80~140km/h
Fixing Solution
Ground anchor, expandable bolt, weight plate, etc.
Service Life
More than 15 years
Applicable temperature range
-30 degree Celsius ~ +70 degree Celsius
Ground Situation
Grassland,earth land,asphalt,cement ground,marble,etc
Connectors
Hot-dip galvanized twin plate;expansion bolts to fix tent
Additional Services
1) Provide engineering calculations for tent structure's wind, snow, and seismic resistance.
2) KENTEN's technical professionals provide on-site installation guidance services.

Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant

Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant

About the design

Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant

Aluminum Structure Warehouse Large Frame Industrial Tent Buildings Snow Resistant

Customizable Information

Tent roof optional
Transparent cover, white cover ; red color, green color.other color option
Tent Wall optional
PVC plain wall,PVC wall with clear windows,PVC clear wall, glass wall, Sandwich walls, plastic solid wall
Tent Door optional
glass door,sliding door, folding door, solid door
Tent floor optional
Wooden floor with plastic base, cassette wooden floor
Tent fixation optional
Expand screw, ground stake, weight plate
Tent decoration
Roof lining, sidewall drapery
Other option
lighting,rain gutter, carpettables, and chairs,air-conditioner

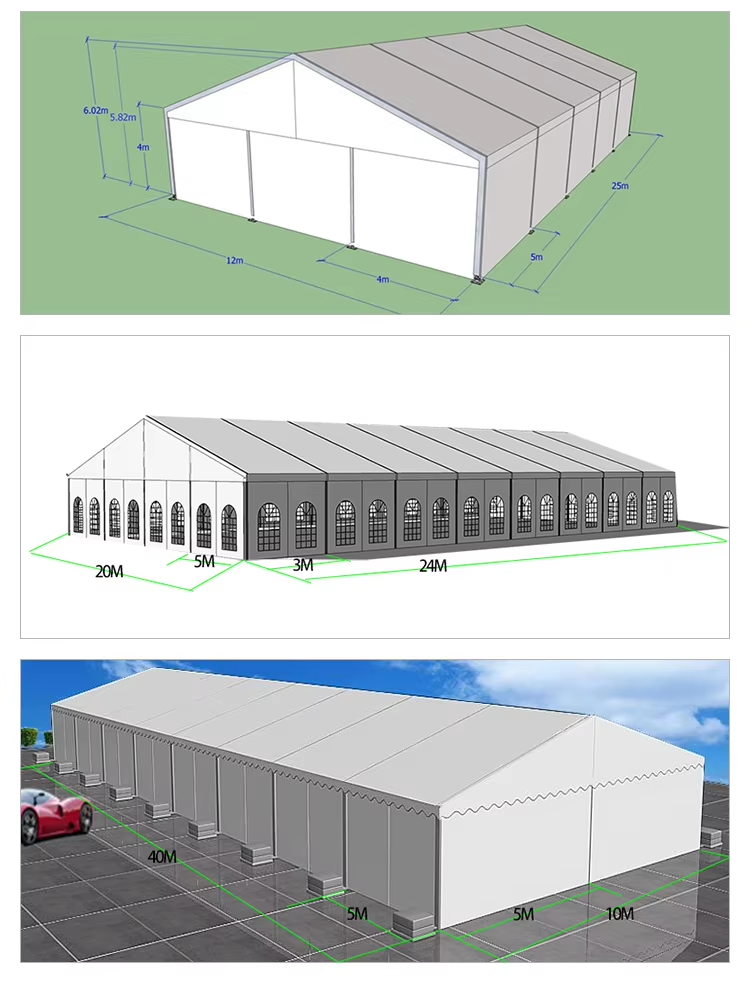

Specifications
1) Span Width: 3m, 6m, 8m, 9m, 10m,12m, 15m,1 8m, 20m, 21m, 25m, 30m, 40m, 45m, 50m, 55m, 60m
2) Length: unlimited and can be extended by 3m or 5m.
3) Eave height: 2.5m, 3m, 4m, 5m or special height per requested


Warehouse industrial canopy and steel construction contrast :


Item Industrial Storage Shade Structure Steel Structure Building
Structure Type Lightweight steel frame with high-tensile membrane or color-coated steel cladding Heavy-duty structural steel (e.g., H-beams, C-purlins) as main framework
Construction Period Rapid installation, typically completed within 7–15 days Longer construction time due to foundation work, usually 30–60 days
Initial Investment Lower upfront cost, highly cost-effective Higher initial investment including foundation, fireproofing, insulation, etc.
Spatial Flexibility Easily disassembled, relocatable, and expandable Permanent structure with limited flexibility for modification or relocation
Typical Applications Temporary storage, outdoor material yards, weather protection for logistics zones Permanent workshops, factories, large-scale warehouses, production facilities

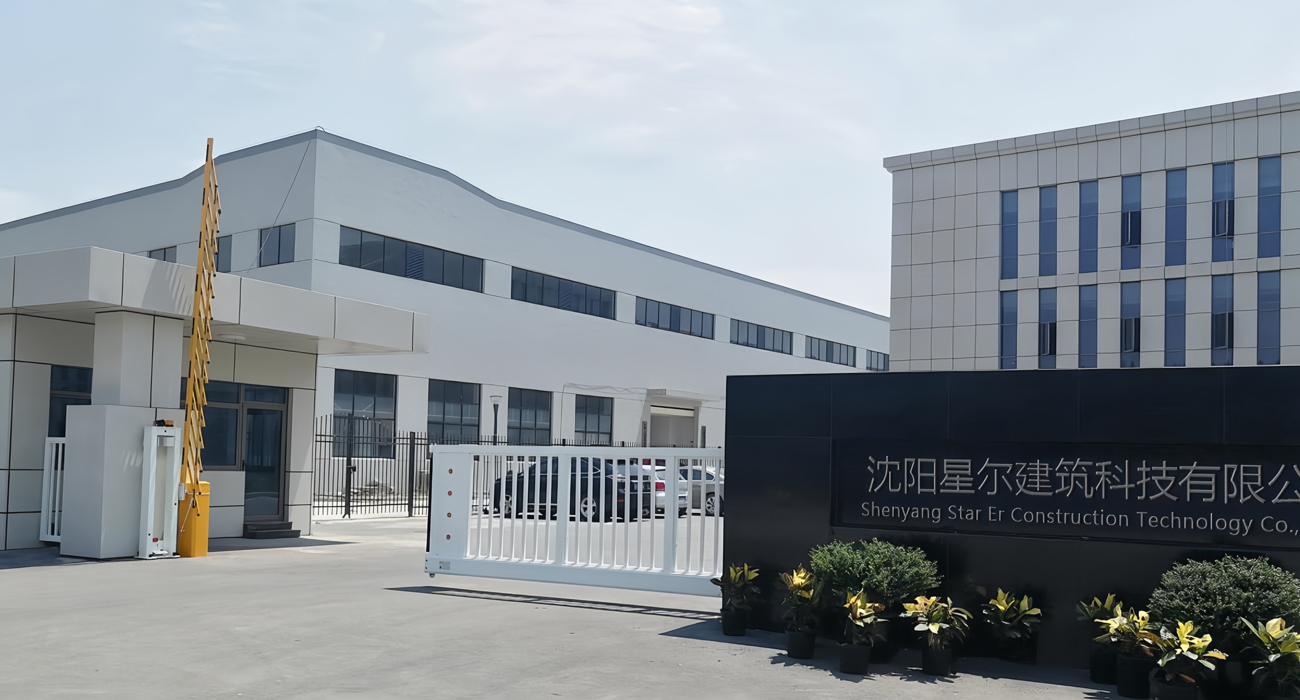

About us

As the High-Tech corporation with independent intellectual-property and core technologies, we are concentrating on the Industry production and management.

Star Er is a technology-based construction enterprise committed to promoting scientific and technological innovation to lead future life. We have been specializing in steel construction for more than 10 years.

Our products cover all types of steel structure buildings, including various prefabricated metal building warehouse, Warehouse Tent,steel structure workshops, steel structure garages, steel structure prefabricated houses, etc.

We not only pay attention to the appearance of the product design, but also pay attention to the functionality and intelligence of the product. We advocate the concept of green building, using environmentally friendly materials, energy saving technology, and are committed to creating sustainable homes that meet the needs of future living. We have a passionate and creative team, including talented designers, engineers and technicians. The company continues to increase investment in research and development, actively introduce advanced technology at home and abroad, and is committed to improving the quality and intelligent level of products.
