60 X 30 X 1.6mm Gal Oval Rail Hot Dip Galvanized Steel Sheep Yards

Sheep yards description

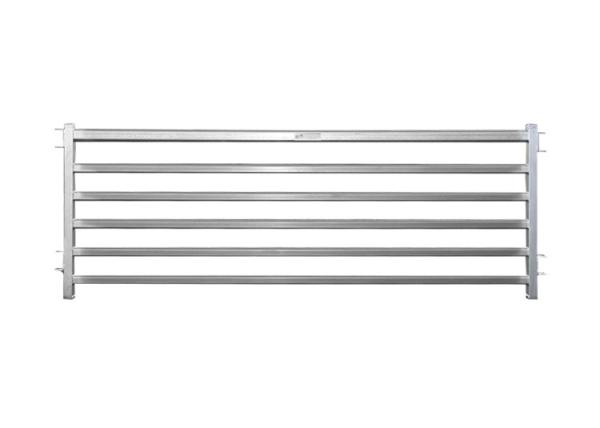

Our standard sheep yard panels have six rails and are 2.16m, 2.8m, or 4.17m long and 1.05m high. We can also manufacture sheep yard panels to custom length or height. We use two styles of panel rail material - 30 x 30 x 1.6mm gal SHS (Square Hollow Section) or our heavy duty panels have five 53 x 35 x 1.6mm oval rails and a heavier top rail of 75 x 40 x 1.6 gal oval rail. The heavy-duty panels have 50 x 50 x 1.6mm gal shs posts with a removable post cap that allows a star post to be driven through the center of the post to provide further stability through-out the yards.

Sheep yards specification

Sheep yards details

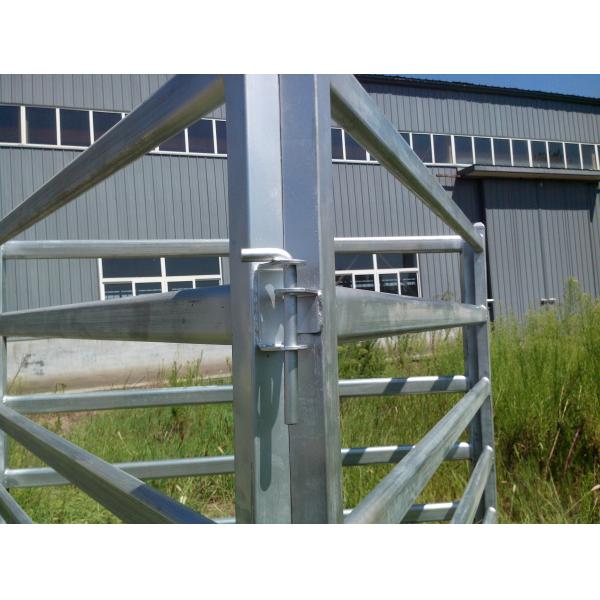

Sheep Yard Panel Joining / Pinning System

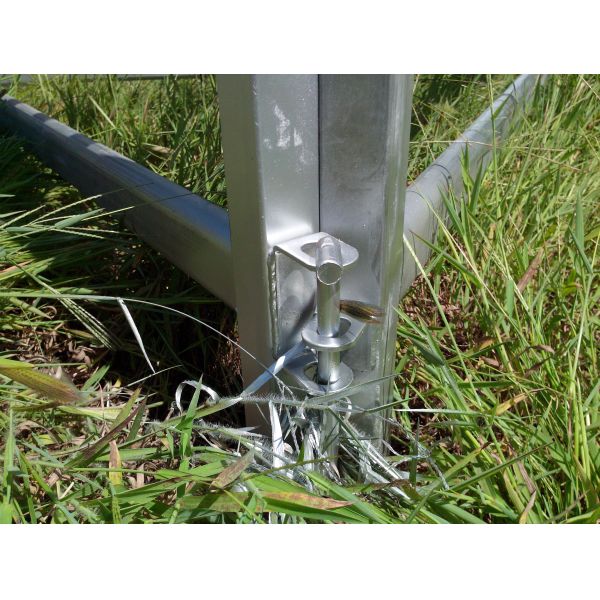

Identical to our cattle yard joining system our heavier sheep yard panels have our unique "U" shaped zinc plated cleat with a 19mm round hole to fit a tapered 16mm zinc plated pin. The lighter panels have a 14mm oval hole with a 12mm solid pin. This system is a low noise joining system with no sharp edges or protruding parts, located at both the top and the bottom of each end of a panel or gate frame. Each panel has two foot plates with two foot pins provided to allow the components to be pinned to the ground. The pinning system at the top of the panels has been positioned so that sheep's legs cannot get caught between the posts.

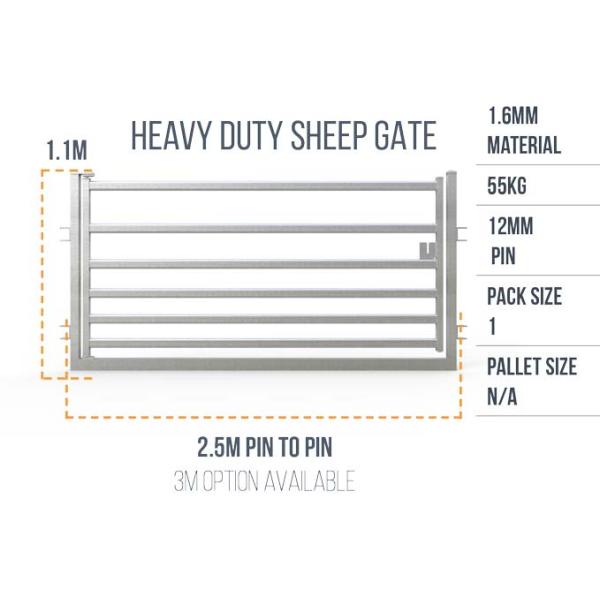

Sheep Yard Gates

Our sheep yard gates are either 2.16m or 2.82m long and 1.05m high. They are complete in a heavy duty 65 x 65 x 2.5mm gal SHS braced frame that is "U" shaped to allow easy access. Similar to the panel posts the cap is removable to allow a star post to be driven through the centre of the post to provide further stability throughout the yards. The gate catches are a quick action chain catch.
