Hot Dip Galvanised W Profile Triple Pointed Top Security Palisade Fence

Product Description

We supply Palisade Fencing in 2.75 meter bays, as is the industry standard for this security fencing product.

Each 2.75 meter Palisade Bay Contains:

17 No W Section Pales - each of these pales is 2.0mm thick (other palisade pale gauges are available upon request). As standard these palisade pales come with a Triple Point head.

1 No Excavated Post - these posts are 100 x 55 IPE section dig-in posts as standard, but we can also supply bolt down palisade posts upon request. Please note that you may wish to order an extra post for the end of your palisade fencing run.

1 No Horizontal Top Rail - 50 x 50 x 5 RSA

1 No Horizontal Bottom Rail - 50 x 50 x 5 RSA

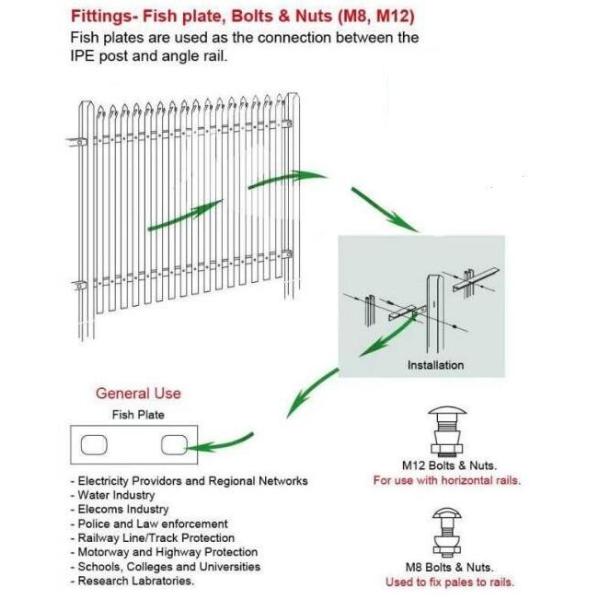

34 No M8 Bolts - palisade pale fixings

4 No M12 Cup Sq Bolts & Permacone Nuts

2 No Loose 30 x 5 RSF Fishpaltes

Each palisade bay is Galvanised to BS EN ISO1461 as standard. We can then powder coate these to meet your requirements, offering two layers of protection.

Specification

Paling Profiles

Available in 2 standard profiles - ‘W’ profile and ‘D’ profile.

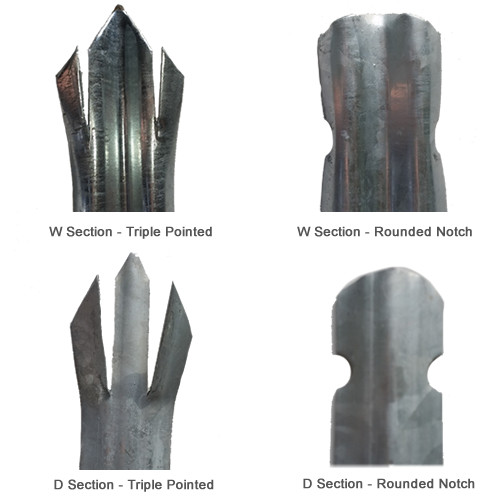

Paling Tops

Available in 5 standard tops; Single point - Triple point - Square - Round – Notched

Paling Thickness

Available in 3 standard gauges; 2.0MM - 2.5MM - 3.0MM

Horizontals

Available in 2 standard sizes according to height and site requirements - 50x50x6mm or 65x50x6mm

Drawing

Advantages

1. The galvanized steel pipe is selected and formed by T5 heat treatment.It is integrally formed without solder joints,with bright color and good overall strength.

2. The four-layer anti-corrosion treatment solves the problems of rust and cracking on the surface of guardrail products that have long been troubled.

3. The styles are complete,the appearance is elegant, the protection is good,and the colors and styles support customized drawings.

4. Any RAL series color(normal RAL 6005-Dark Green,RAL 9005-Black).

Application

Apartment building protection solutions

Industrial facilities protection solutions

Telecom&Mobile tower base station protection solutions

The airport & harbor protection solutions

Roads and railways protection solutions

The border protection solutions

Military defence and prison protection solutions

Packing and Shipping

1. plastic film/Pallet or according to customer's request
2. plastic film shrink with pallet or wooden
3. also can be customized

Our Service

1. 15 days after receiving the deposit shipment.
2. We will choose high quality low price of the shipping company.
3. Loading the goods, we will track all the way, to ensure product safety, quick to arrive at the designated ports.
4. Arrival of the goods, we will provide installation instructions and subsequent technical guidance.
5. Company for products and accessories, for a long time to be able to provide various products accessories at cost to the customer at any time.
