Livestock Farm Powder Coat Paint 6 Bars 5ft Heavy Duty Cattle Panel
Livestock Farm Powder Coat Paint 6 Bars 5ft Heavy Duty Cattle Panel
Livestock Farm Powder Coat Paint 6 Bars 5ft Heavy Duty Cattle Panel
Livestock Farm Powder Coat Paint 6 Bars 5ft Heavy Duty Cattle Panel
Specifications
Brand Name :
AOBIAO
Model Number :
FSL-CP-003
Certification :
ISO, CE
Place of Origin :
Anping China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per week
Delivery Time :
about 25-30 days after receiving the deposit.
Packaging Details :
in bulk or on pallet
Porduct name :
Livestock Farm Used Powder Coat Paint 6 Bars 12′ Green Corral Panel
Panel Height :
5ft(1.5m), 6ft(1.8m), etc.
Panel Length :
10ft,12ft,14ft
Material :
Q235 steel pipe
Frame Pipe :
32OD,38OD,42OD
Thickness :
1.5mm,1.8mm,2.0mm
Surface treatment :
Hot dip galvanized, powder coated
Usage :
Farm;Cattle,Sheep,Horse and other livestock
Applicant :
Garden Fence, Farm Fence
Rail diameter :
32mm,38mm,42mm
Description

Livestock Farm Used Powder Coat Paint 6 Bars 12′ Green Corral Panel

Corral panel description

Combines lower cost with great features

Great value in a corral panel, portable and easy to hook up on the uneven ground

Pin hookups:
-Are easy to use
-Reduce space between panels
-Are usable on uneven ground
-Allow 3 or 4-way connections for pens

18 gauge J-legs have a small contact point with the ground to prevent unwanted panel movement

Long-lasting UV resistant powder coat paint

All corral panels are 4″ less than the listed length to allow proper clearance and installation

Corral panel specification

Style

Length

mm

Height

mm

No. of rails

Size of Rail

Livestock panels round rail

 2100 1800 6 42mm O.D. 1.6mm

Livestock panels square rail

 2100 1800 6 40mm × 40mm RHS × 1.6mm

Livestock panels oval rail

 2100 1800 6 40mm × 40mm RHS × 2mm
2100 1800 6

30mm × 60mm × 1.6mm

30mm × 60mm × 2mm
2100 1800 5

40mm × 80mm × 1.6mm

40mm × 80mm × 2mm
2100 1800 5

42mm × 115mm × 1.6mm

42mm × 115mm × 2mm

Corral panel features

Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
Robust: the interlocking system makes the fence very stable;
Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. And it benefit grassland protection.
Livestock Protection: no sharp edge, very smooth welding spot punishment
Cost-effective: give your corral years of service and minimal maintenance at a low initial cost
It can quickly and easily be installed, without the need to disturb the surface area by
digging holes or laying foundations.
Main markets: Australia, European countries, Canada, America, and Asia countries.

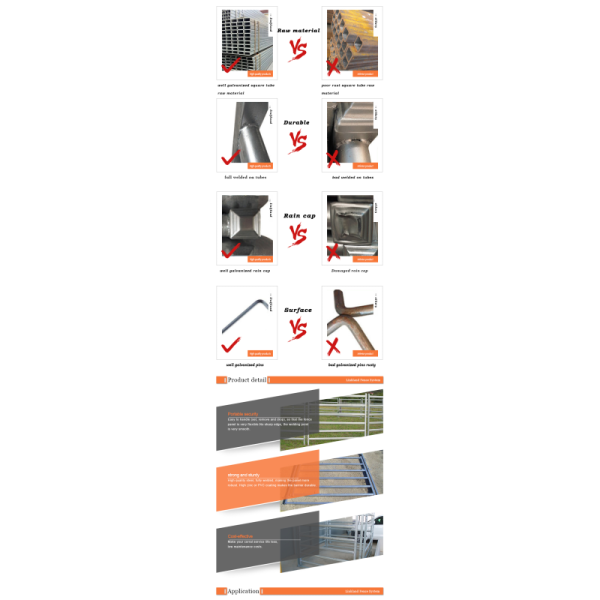

Corral panel details

Livestock Farm Powder Coat Paint 6 Bars 5ft Heavy Duty Cattle Panel

Corral panel usage

It is used in cattle yards, sheep yards, horse yards, and all need high-security protection livestock yards.
Field fence is a kind of mesh used in cattle, goats, deer, and pigs.
Papadopoulos grassland, forestry, highway, and environment.
It is used for grassland, pastures, protection of ecological projects.

Livestock Farm Powder Coat Paint 6 Bars 5ft Heavy Duty Cattle Panel
