As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm
As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm
As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm
As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm
Specifications
Brand Name :
AOBIAO
Model Number :
FSL-TSF-006
Certification :
ISO, CE
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 sets per week
Delivery Time :
about 25-30 days after receiving the deposit.
Packaging Details :
in bulk or on steel pallets.
Product name :
As 4687-2007 Standard Temporary Fence 42 Microns HDG 210cm*240cm Fence Panels
Wire thick. :
3.0mm-5.0mm
Hole :
75x75mm,75*100mm,60 x 150mm
Pipe size :
32OD,42OD,48OD
Thickness :
1.5mm,2.0mm
Size :
1800x2400mm,2100x2400mm
Usage :
temporary construction fence
Material :
steel wire and pipe
Surface treatment :
Galvanized
Application :
Villa,School /gardon/ playground,Sport Field; Construction site; Temporary Area,Driveway and Highway
Description

As 4687-2007 Standard Temporary Fence 42 Microns HDG 210cm*240cm Fence Panels

Fence panels introduction:

Temporary fence
Mesh panel
Hole size
50x50mm, 50x150mm, 60x150mm, 100x200mm
Wire diameter
2.8mm-4.0mm
Panel width
2.1m,2.4m,3.0m
Frame
Pipe size
Ø25mm-48mm, black pipe or galvanized pipe
Wall thickness
1.2mm-2.5mm
Whole height
1.8m, 2.1m
Accessories

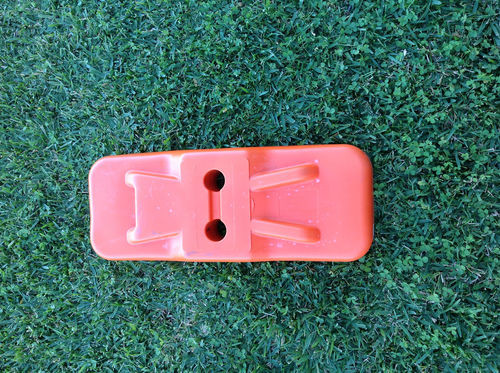

Plastic base:The fully enclosed plastic base can be filled with sand cement;
Hollow plastic base can be cast concrete cement in hollow part
Iron base: Rectangular base of plate base and tube products welding .
Connection
Regular fence accessories ,clips
Customization accepted

Fence panels specification:

Dimensions 2100mm(H)*2400mm(W)
Tubing OD 32mm*2.00mm Thick
Mesh Spacing 60mm*150mm
Infill Mesh Size 1736mm*2336mm
V Wire Number 36 *Sticks Wire *4.00mm
H Wire Number 17 *Sticks Wire *4.00mm
Finished 42 Microns /300 Gram/SQM
Weight Of Panels 20.5kg-22.0kg
Service Life Salt Spray Testing Result At Least 5 Years
40HC Container 560 Unit If Covered Clamp And Base
Packing Metal Pallet Wrapped With Plastic Film
Productions Time All Stocked
Ocean Time 25 Days To 35 Days To Any Port Of AU & NZ
What Papers You Provided After Shipping Containers

As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm

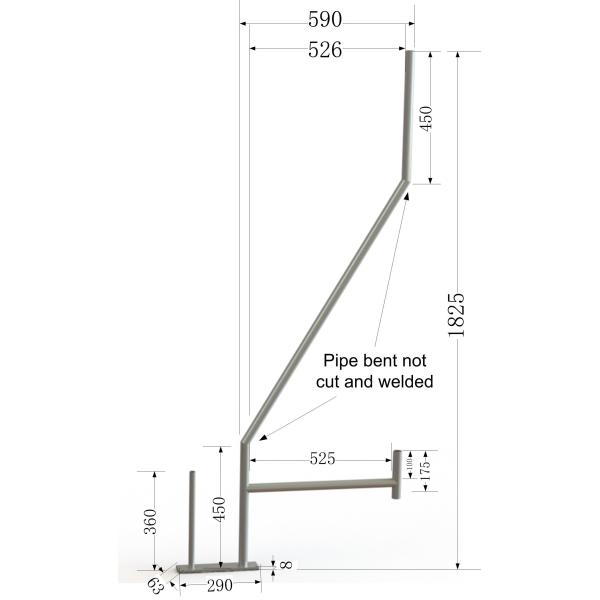

Fence panels drawing:

Fence panel details:

As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cmAs 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm

As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm

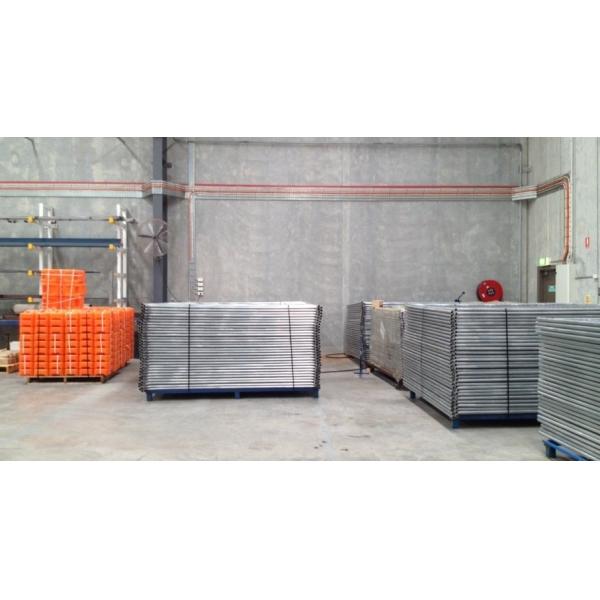

Fence panels packing:

As 4687-2007 Standard 42 Microns Hdg Portable Fencing Panels 210cm X 240cm
