Australian Standard Steel Tubular Fencing 2100mm High Security Panel
Australian Standard Steel Tubular Fencing 2100mm High Security Panel
Australian Standard Steel Tubular Fencing 2100mm High Security Panel
Australian Standard Steel Tubular Fencing 2100mm High Security Panel
Specifications
Brand Name :
AOBIAO
Model Number :
AB-STF-002
Certification :
ISO9001,CE
Place of Origin :
Anping China
MOQ :
50 sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 set per week
Delivery Time :
10-20 work days
Packaging Details :
1.Steel Tubular Fencing Wrapped with plastic bubble film for each panel, then packaged on the pallet 2.Post Wrapped in the plastic bag, then packaged on steel pallet 3. clamps & bolts In small cartons
Product Name :
Australian Standard 2100mm High Steel Security Tubular Fence Panel
Size :
1.8mX2.4m, 2.1x2.4m, 1.5mX3.0m, 1.8mX3.0m
Rail :
40x40mm,45x45mm,50x50mm
Picket :
25x25mm,19x19mm,20x20mm
Fence post :
65x65mm, 100x100mm
Post length :
2.7m, 2.7m, 3.0m
Picket Spacing :
110mm, 115mm, 120mm
Material :
Galvanized tube
Color :
Black, green, blue, white,gray, etc
Tube :
hot dipped galvanized square tube
Advantage :
High Security Steel Tubular Fence
Service :
instruction book, video of installation
Description

Australian Standard 2100mm High Steel Security Tubular Fence Panel

Product introduction:

Tubular fence panels are manufactured from pre-galvanized steel with a ‘punched through’ top and bottom rail design for superior strength and are available in a wide variety of profiles, heights, and colors to suit almost every preference and specific fencing application.

There are 2 types of tubular fence panels available for purchase or manufacture: Light Duty or Heavy Duty

Light Duty Profiles:

  • Applications: Pools, Parks, Kindergartens…
  • Specifications:
    • Rails – 38×25 Galv RHS Top & Bottom Punched Rails
    • Pickets – 19mm CHS (Round) Galv Vertical Pickets
  • Picket Spacing: 104mm Centres
  • Standard Panel Heights*: 1200mm, 1500mm & 1800mm
  • Standard Panel Widths*: 2400mm
    *Non-standard Panel Heights & Widths are available upon request.

Heavy Duty Profiles:

  • Applications: Industrial, Commercial, Schools…
  • Specifications:
    • Rails – 40×40 Galv SHS Top & Bottom Punched Rails
    • Pickets – 25×25 Galv SHS Vertical Pickets
  • Picket Spacing: 140mm Centres
  • Standard Panel Heights*: 1800mm, 2100mm & 2400mm
  • Standard Panel Widths*: 2400mm
    *Non-standard Panel Heights & Widths are available upon request.

Australian Standard Steel Tubular Fencing 2100mm High Security Panel

Product specification:

Color Family Black Number of rails for panels 3
Color/Finish Black Panel Assembly Assembled Panel
Contact Type Allowed Above Ground Panel Pattern Spaced Bar
Features Galvanized,Pool,Water Resistant Product Weight (lb) 50
Fencing Product Type Ornamental Metal Fence Panels Returnable 30-day
Gauge 18 Structure type Ornamental only
Includes No Additional Items Included Top Shape Flat
Material Metal Top Style Squared

Tubular Panels currently in stock are:

  • All pre – galvanised materials were used.
  • All materials include high quality powder-coating.
  • 65mm x 65mm garrison square fence posts (also available in 2700mmL x 3000mmL)
  • 40mm x 40mm horizontal rails.
  • 25mm x 25mm uprights.
  • Available in: 1800mm high/ 2100mm high/ 2400mm high x 2400mm wide.
  • 14g Black powder coated tek screws or the option of upgrading to anti-vandal fixings.
  • 4-hole rail brackets for additional strength for security fencing.
  • A complete range of accessories is available. All powder coated to match the panels.

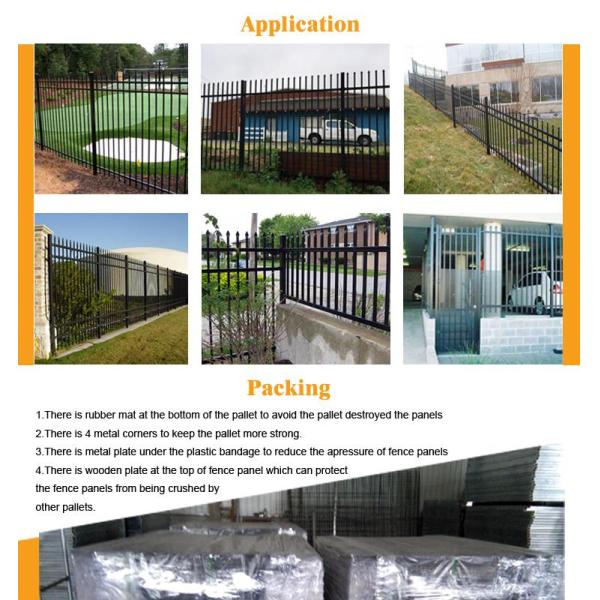

Application:

  • Schools
  • Power stations
  • Government infrastructure projects
  • Parks
  • Factories
  • Warehouses
  • Sports facilities
  • Commercial and industrial applications

Australian Standard Steel Tubular Fencing 2100mm High Security Panel
