6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
6x19 FC Galvanized Steel Wire Rope with Hot Dip Galvanized Finish and DIN 3060 Compliance for Lifting and Rigging
Specifications
Supply Ability :
200000 Meters per Month
Standard :
DIN 3060
Model Number :
6x19FC-GS
Diameter Range :
4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm
Payment Terms :
T/T,L/C,Western Union
Delivery Time :
7-15 working days after order confirmation
Material :
High Carbon Steel
Place of Origin :
Hebei, China
MOQ :
1000 Meters
Tensile Strength :
1570 N/mm² - 1960 N/mm²
Certification :
ISO 9001:2015, DIN 3060
Core Type :
Fiber Core (FC)
Zinc Coating Weight :
Minimum 60 g/m²
Brand Name :
AOKAI
Construction :
6x19 + Fiber Core (FC)
Application :
General Lifting, Rigging, Winching, Towing
Packaging Details :

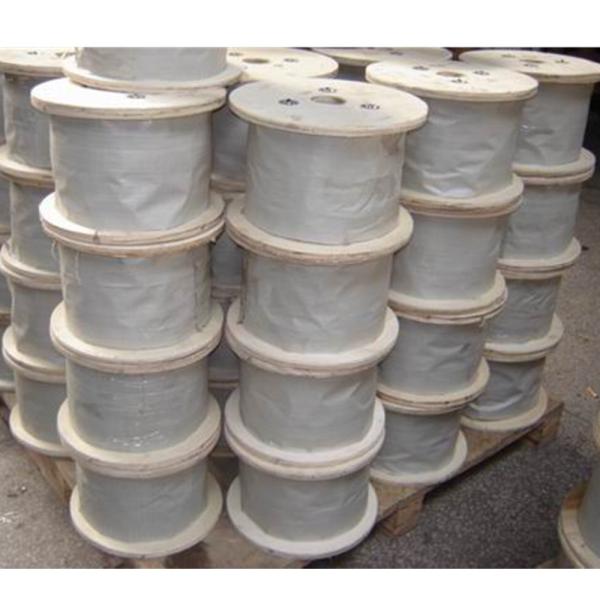

Wooden spool or coil packaging with waterproof wrapping, export-grade pallet
Lay Type :
Regular Lay (Right Hand)
Surface Treatment :
Hot Dip Galvanized
Price :
USD 0.15-3.50 / Meter
Description

6x19 FC Galvanized Steel Wire Rope - General Purpose Lifting Cable

The 6x19 FC Galvanized Steel Wire Rope is engineered for reliable performance in general lifting, rigging, and industrial applications. Constructed with 6 outer strands of 19 wires each around a fiber core (FC), this construction offers an excellent balance of strength, flexibility, and abrasion resistance.

Key Features

  • 6x19 Fiber Core Construction: Provides superior flexibility while maintaining high tensile strength, ideal for general lifting and rigging tasks.
  • Hot Dip Galvanized Finish: Each wire is individually zinc coated via hot-dip process, delivering outstanding corrosion resistance for outdoor and marine environments.
  • Wide Diameter Range (4mm-22mm): Covers most general industrial lifting needs from light-duty utility winching to medium-duty crane applications.
  • DIN 3060 Compliant: Manufactured to German industrial standards, ensuring consistent quality, dimensional accuracy, and reliable breaking loads.
  • High Carbon Steel Core Wire: Premium grade raw material with tensile strength up to 1960 N/mm² for demanding applications.

Applications

  • General lifting and hoisting operations
  • Winch lines for utility trucks and recovery vehicles
  • Rigging and mooring systems
  • Towing cables and tie-down straps
  • Industrial material handling equipment

Technical Specifications

Diameter (mm)Approx. Weight (kg/100m)Min. Breaking Load 1570 N/mm² (kN)Min. Breaking Load 1960 N/mm² (kN)
45.48.710.9
612.219.624.5
821.734.943.7
1033.954.668.3
1248.978.698.2
1686.9139174
20135218272
22164264329

Custom diameters available upon request. Contact our sales team for non-standard specifications and bulk order quotations.
