DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
Specifications
Delivery Time :
15-30 days
Model Number :
7x7
MOQ :
1000 meters
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Supply Ability :
200000 meters
Payment Terms :
L/C,D/A,D/P,T/T
Certification :
ISO9001
Brand Name :
gaosheng
Place of Origin :
China
Description
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
Galvanized aircraft cable is manufactured according to strict requirements for pulling force and tensile strength. Designed for use as winch cable or control cable in aircraft operating systems, including applications in rudder, aileron, engine, landing gear, and compass needle corrector systems. Manufactured to MIL-W-83420D standard.
Key Features
  • Precision manufacturing with dimensional accuracy up to ±0.01mm
  • Exceptional surface quality and brightness
  • Superior corrosion resistance and high tensile strength
  • Excellent fatigue resistance for long service life
  • Minimal impurities with stable chemical composition
  • Manufactured from premium 60#, 65#, or 70# carbon steel
  • Available with hot galvanizing or electrogalvanizing treatment

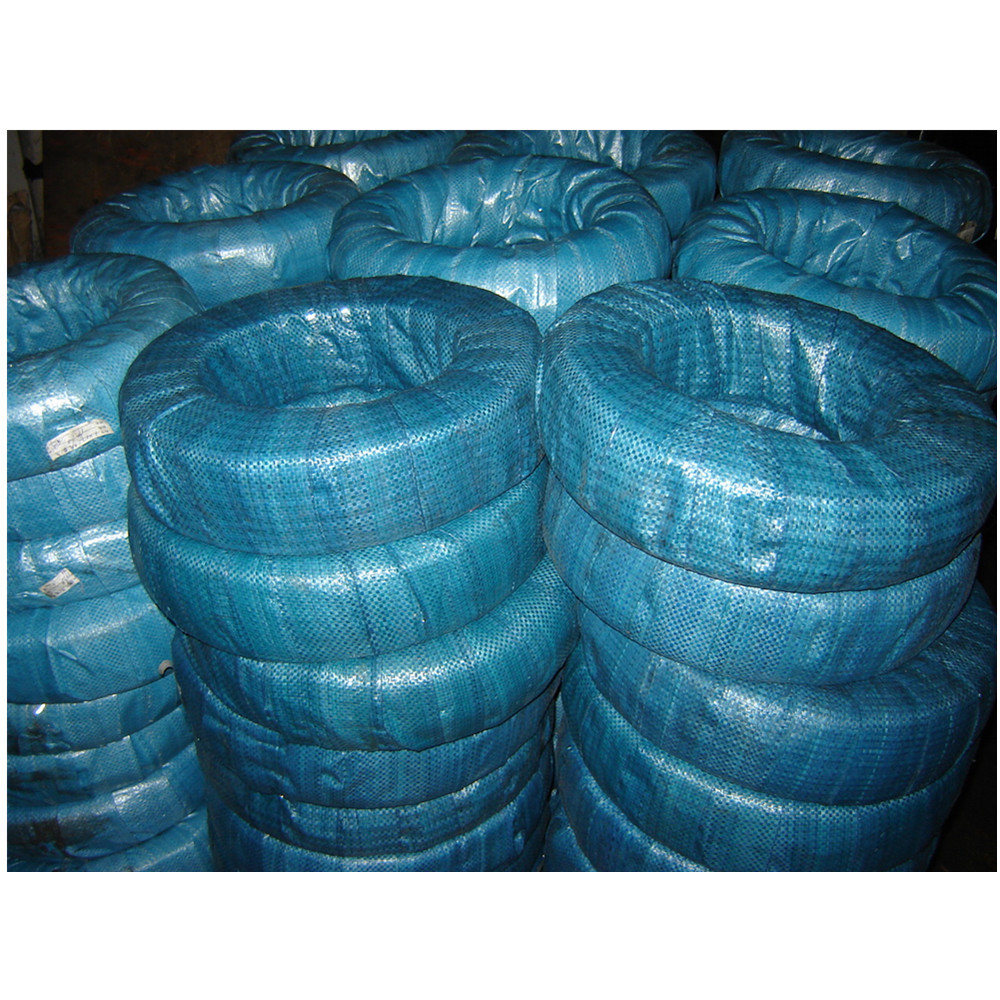

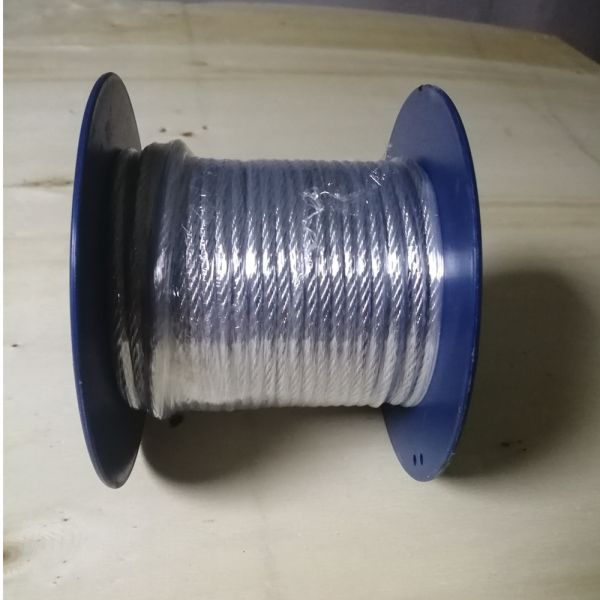

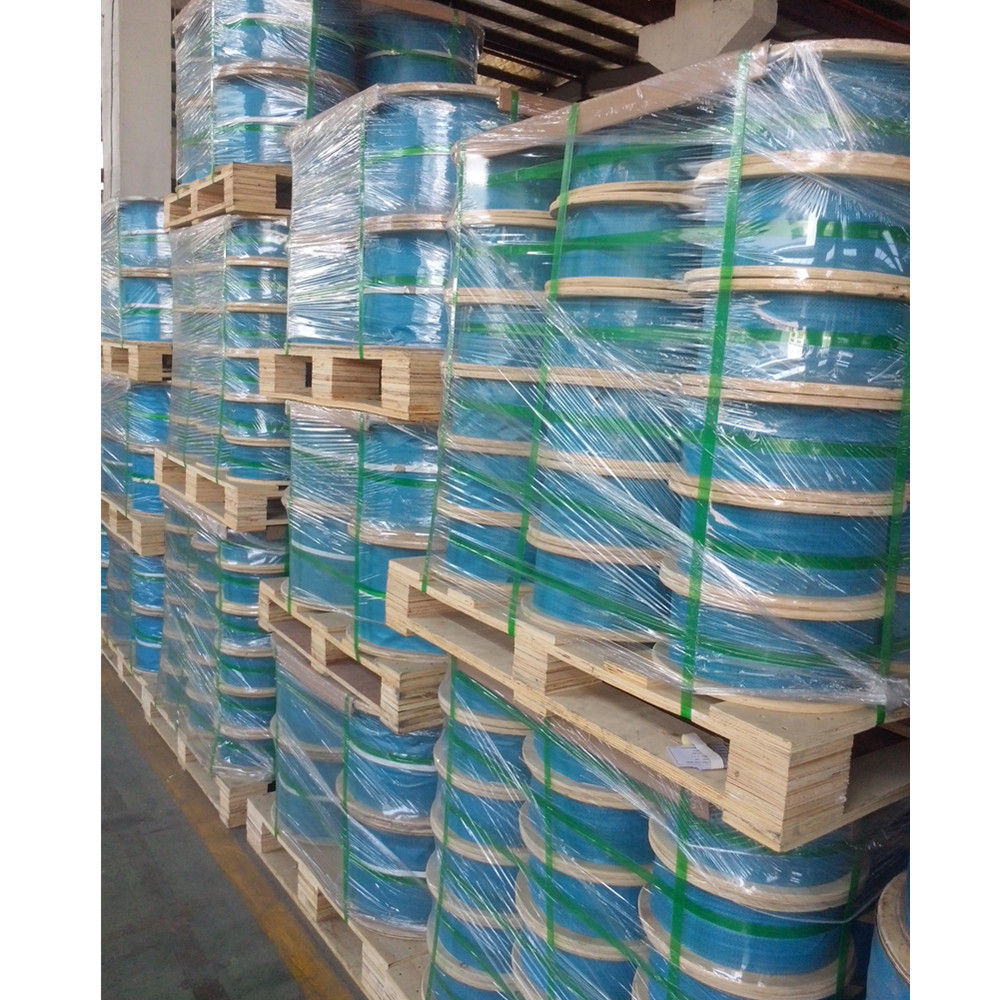

  • Packaging options: wooden reel or coil
Technical Specifications
Diameter (inches) Construction Breaking Strength (lbs) Weight (lbs)/1000 Ft
1/16" 1×7 500 10
3/64" 7×7 270 5
1/16" 7×7 480 8
5/64" 7×7 650 12
3/32" 7×7 920 16
1/8" 7×7 1700 28
5/32" 7×7 2600 46
3/16" 7×7 3700 64
1/4" 7×7 6100 106
3/32" 1×19 1200 20
3/32" 7×19 1050 17
1/8" 7×19 2000 29
5/32" 7×19 2800 45
3/16" 7×19 4200 65
7/32" 7×19 5600 89
1/4" 7×19 7000 111
5/16" 7×19 9800 173
3/8" 7×19 14400 243
DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable DIN 3055 High Tensile Strength 7x7 Galvanized Aircraft Cable
