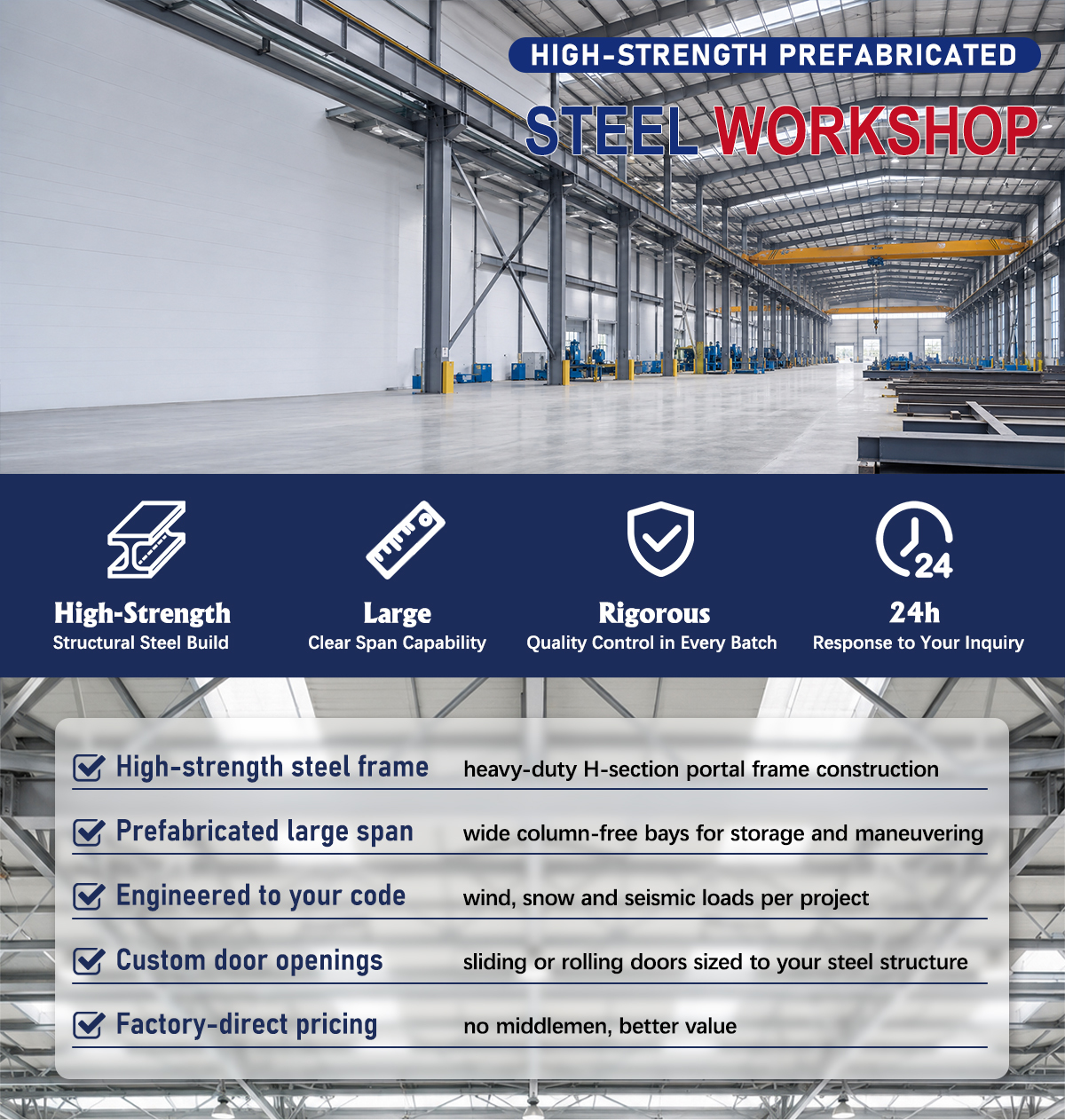

Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System
Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System
Specifications
Model Number :
PSW-06
Supply Ability :
5000 square meters per month
Structural Frame :
Q355 steel, hot-dip galvanized
Delivery Time :
30-45 days after deposit
Design Standard :
GB / AISC / Eurocode
Price :
USD 30 - 80 per square meter
Warranty :
15 years structural warranty
Payment Terms :
T/T,30% deposit + 70% before shipment
Place of Origin :
Shandong, China
Roof & Wall Panel :
Sandwich panel / steel sheet
Main Selling Point :
Fire Resistant Steel Workshop
Brand Name :
SDKM
Certification :
ISO 9001, CE
MOQ :
500 square meters
Packaging Details :
Standard export packing with steel frame support
Span Range :
10m - 60m clear span
Description
Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System
Fire Resistant Prefabricated Steel Workshop A2 Rated Panel Building
Product Overview

This fire resistant prefabricated steel workshop is built with A2 rated non-combustible rock wool sandwich panels and fire retardant intumescent coating on structural steel, giving proven fire resistance for people, equipment and goods.

Engineered to GB / AISC / Eurocode standards with ISO 9001 and CE certified production, the workshop provides up to 2 hours structural fire resistance and fire compartment design that slows flame spread, supporting fire safety compliance for industrial facilities.

Overview: A2 rated rock wool panels and fire retardant coating give this workshop proven fire resistance for people, equipment and goods.

Key Features
  • A2 rated non-combustible rock wool panels
  • Fire retardant coating on structural steel
  • Up to 2 hours structural fire resistance
  • Fire compartment design slows flame spread
  • ISO 9001 and CE certified engineering and production
  • Hot-dip galvanized Q355 steel frame with 15-year structural warranty
  • 10m - 60m clear span working space for flexible layouts
  • Optional sound insulation and dustproof airtight panels for sensitive processes

Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System

Specifications
Panel Rating A2 rock wool
Fire Rating up to 2h
Coating intumescent
Use chemical shops
Structural Frame Q355 steel, hot-dip galvanized
Span Range 10m - 60m clear span
Design Standard GB / AISC / Eurocode
Certification ISO 9001, CE
Warranty 15 years structural warranty
Price USD 30 - 80 per square meter
Minimum Order Quantity 500 square meters
Delivery Time 30-45 days after deposit
Payment Terms T/T, 30% deposit + 70% before shipment
Supply Ability 5000 square meters per month
Applications

Applications: Welding workshops, chemical storage and high fire risk plants.

Typical applications include chemical and pharmaceutical plants, paint shops, welding workshops, battery production lines and any high fire risk facility where fire rated construction is required by local codes.

Fire rated partitions and compartmentalized layouts can be designed to meet your local fire code, with documentation to support approval and insurance requirements.

Get a Quote: Contact SDKM for a fire safety design meeting your local code.


Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System

Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System

Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System

Fire Rated Steel Workshop Building with A2 Rock Wool Panel Protection System
