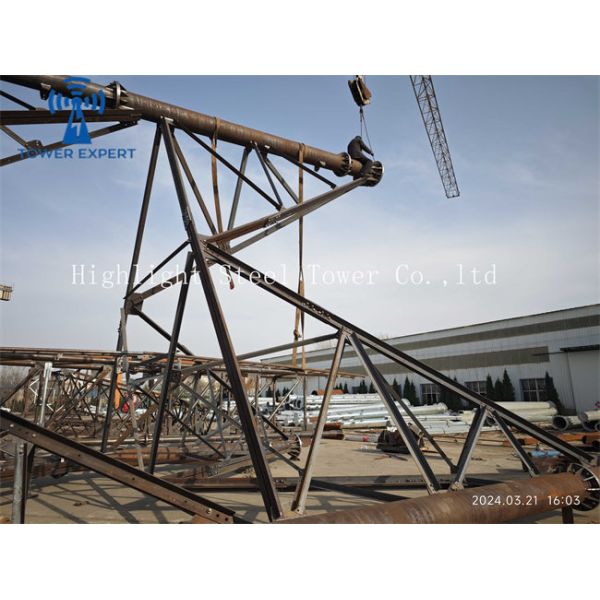

Fast Installation Hybrid Lattice Tubular Tower Galvanized Durable 3 Legs 4 Legs Telecom Tower
Fast Installation Hybrid Lattice Tubular Tower Galvanized Durable 3 Legs 4 Legs Telecom Tower
Fast Installation Hybrid Lattice Tubular Tower Galvanized Durable 3 Legs 4 Legs Telecom Tower
Fast Installation Hybrid Lattice Tubular Tower Galvanized Durable 3 Legs 4 Legs Telecom Tower
Specifications
Character :
Full tubular or angle bracing
Lifetime :
Minimum 20 years
Surface treatment :
HDG or painting
Structrue type :
3 or 4 legs lattice
Lightning Protection :
Included
Installation :
Easy and fast
Wind Resistance :
Up to 340 km/h
Height :
0-300m
Foundation Type :
Concrete base or anchor bolts
Maintenance :
Low cost
Climbing Ladder :
External or internal
Antenna Load :
As per customer`s requirement
Painting Color :
As per customer's requirement
Warranty :
15 years
Platforms :
1-3
Certification :
AWS D1.1
Material :
seamless or welded pipe
Brand Name :
HL
Model Number :
HL-027
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 850-1080/Ton
Payment Terms :
L/C, T/T
Supply Ability :
95,000 ton per year
Delivery Time :
28 days
Packaging Details :
Seaworthy packing or as per client request
Description

Galvanized durable 3 legs/4 legs telecom tower

We are leading and professional manufacturer and exporter for a range of Telecm & Electric Towers & Poles.

We have professional engineering engineers good at PLS or MStower design and 3D detailing software that can generate production line supported progress.

We are ranking top 10 in China and certifed with 1,000kv extra high voltage transmission line towers for China State Grid.

Our company located in Jiaozhou City, Shandong Province, next to the yelllow sea and Jiaozhou Bay. There are two adjacent highways( Jiqing Highway and Shenhai Highway) and Qingdao port near here which provide substantial conveniences for cargo transportations. Total area of company is 173,000 square meters, the building area of manufacturing is 73,000 square meters. There There are 597 staff in the whole area, including 120 technicians. The annual manufacturing capacity is 100,000 tons

Product Range:

l Galvanized Telecom Towers

l Monopole

l Tubular Hybrid Tower

l Rooftop Tower

l Camouflaged Tree Tower

l Guyed Mast Tower

l Self Supporting Lattice Tower, Angular Tower

l Shelter

l Fence

l 1,000kv EHV transmission & distribution tower, substation gantry and other steel structures.

Design & Machinery:

We provide International standard design, fabrication, Hot dip galvanization, trail assembly and installation, QC lab inspection, logistics and engineering consultancy, turnkey solution support service.

We own many advanced and fully-automatic equipment include:

l Laser cutting machine

l CNC angle iron production line and CNC sheet production line

l CNC steel flange and pipe connect plate assembly welding production lines

l CNCflame cutting machine, CNC plasma cutting machine

l CNC plane drilling machine

l CNC hydraulic bending machine,

l The curve of CNC cutting machine, large shears, groove machine,

l Slotting machine,

l Automatic submerged arc welding machine,

l Complete assembly models of steel pipe; 14.5m * 2.2m * 3m facilities for hot galvanizing production, gas-power constant temperature control system, ensure the quality of galvanized products;

l Large general vertical assembly platform and 6 tons of tower crane, meet the requirements of test installation of all types of towers;

l Perfect physical and chemical experimental instruments and facilities, ultrasonic testing, X-ray flaw detection equipment

Certifications

l We have passed;

l AWS D1.1 Welding certification

l GB/T 19001-2008/ ISO 9001:1008 Quality Management System Certification

l GB/T 24001 -2004, ISO 14001:2004 Environment Management System Certification

l GB /T 28001-2011/ OHSAS 18001:2007 Occupational Health and Safety Management System Certification

l Class II steel structure installation qualification certificates.


We can design and customied produce all kinds of towers as per your request and specification.

Fast Installation Hybrid Lattice Tubular Tower Galvanized Durable 3 Legs 4 Legs Telecom TowerFast Installation Hybrid Lattice Tubular Tower Galvanized Durable 3 Legs 4 Legs Telecom Tower

No. Description Detailed Specification and Major design Parameters
1 Design Code ANSI/TIA222G,H or European Standard and others
2 Design Loading 1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4 Structure Classification II, III
5 Hot-dip galvanization ISO 1461 2009, ASTM A123
6 Steel Grade 1. High strength low alloy structural steel: Q355 or equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts
8 Foundation 50KPa, 100KPa, 150KPa etc soil bearing capacity
9 Tower Type

1. 3 or 4 Leg Self supported Angular Towers
2. 3 or 4 Leg Self supported Tubular Towers
3. Guyed Mast
4. Monopole Tower
5. Camouflaged Tower: Palm Tree, Pine Tree, Coconut
6. RDS Tower: Rapid Deploy Site/Tower
7. Rooftop Towers
8. COW

9. Street lightning pole

10. Electric transmission line towers

11. Subustation gantry

12. All kinds of other steel structures
10 Warranty 1. Tower structures : 15 years
2. Camouflaged towers
a. Barks: 10 years
b. Branches and leaves: 3 years
11 Return Period 50 Years
12 Accessories 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint
2. Aviation Light: Double Light and Single Light & Solar Light
3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.
4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.
5. Fencing: Palisade fence and wire mesh fence with razor wires and gate.
6. Fall arrest system: GB and CE certificate fall arrest system.
7. Canopy and Generator Cage: as per specified by clients
