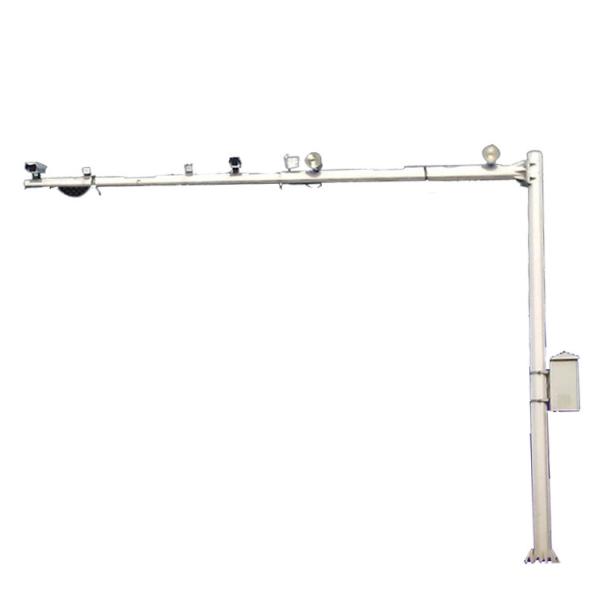

7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel
7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel
7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel
7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel
Specifications
Brand Name :
GUANGXIN
Model Number :
CSP-006
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
10
Price :
USD198-2038 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2000 sets per month
Delivery Time :
20-30 days
Name :
Galvanized cctv pole
Material :
Weldable Structural Steel Plates or pipes
Surface Finish :
Hot dip galvanization plus powder coating
Height :
4m to 15m or customized to requests
Pole Shape :
conical, octangular, polygonal, round etc.
Arms :
1 or 2 or customized to request
Applications :
Traffic monitor, public security CCTV etc.
Description

7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel

7-Shape Single Arm Galvanized Steel Traffic CCTV Camera Pole And Gantry Frame

High-quality service:

1) Each billboard will be reviewed by the designer to ensure the safety and coordination of customers in different countries;

2) Provide standard design and personalized design;

3) Strict quality supervision throughout the manufacturing process;

Specifications

Descriptions Steel poles for mounting lights, CCTV camera, traffic signs, billboards etc.
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel

Traffic Signs and guideboards Supporting steel Pole

7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel

n-shape galvanized Steel Lattice Tower Gantry Frame and Structure for mounting traffic facilities

7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel

Street, roasway, highway, stadium light pole and tower

7 Shape Single Arm CCTV Camera Poles Gantry Frame 15m Q235 Steel

Artificial Pine Tree for Landscaping and camouflaged communication tower
