Q235 Customized Galvanized Steel Frame Structure for Traffic Sign

Specifications

Brand Name :

GUANGXIN

Model Number :

GIS-018

Certification :

ISO9001

Place of Origin :

Guangzhou, China

MOQ :

1 set

Price :

USD2.18 per kilogram

Payment Terms :

T/T, L/C, Western Union, MoneyGram

Supply Ability :

1000 tons per month

Delivery Time :

20-25 days

Packaging Details :

plastic sheets

Name :

galvanized steel traffic sign structure and highway gantry frame

Material :

Steel channel beams and plates or pipes

Grade :

Q235B, Q235B or specified steel

Structure :

Customized to customer's designs and drawings

Dimensions :

Customized to customer's specifications and drawings

Surface Finish :

Hot Dip Galvanized or painting

Fabrication :

prefabricated

Description

Q235 Customized Galvanized Steel Frame Structure For Traffic Sign

Galvanized Steel Traffic Sign Structure And Highway Gantry Frame Tower

Founded in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is professional manufacturer of steel structures and frames with Class 3 Engineering Contractor certification and ISO9001 Quality management system certifications. We've been specializing in producing steel towers, poles and steel structures for more than 10 years by now. We can produce the communication towers and poles, light poles and towers, artificial tree camouflaged towers, traffic management gantry frames, billboard and LED display gantry frames and poles and other steel structures according to customer's designs, drawings, specifications and requirements.

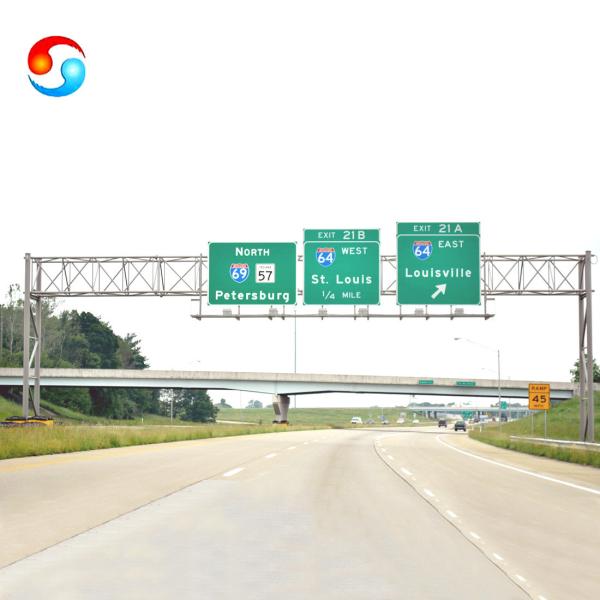

Galvanized Steel traffic sign indication boards gantry frame

Specifications

Material	Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars and rods, bolts and nuts
Steel Type	Weldable low carbon structural steel
Steel Grade	GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength	Fy≥235MPa
Tensile Strength	Fu≥400MPa
Elongation	σ≥20%
Surface Finish	Hot dip galvanization
Galvanized layer	T≥65μm
Height	2m to 120m, customized to requests
Design	structural steel gantry frame
Structure	free standing structure
Supply mode	CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening	Bolts and nuts, connecting flanges
Configuration	Foundations, anchoring bolts, gantry sections, bolts and nuts
Wind Load	0.35-1.0kN/sqm
Lifespan	20-50 years
Warranty	3 years
Applications	traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc.
