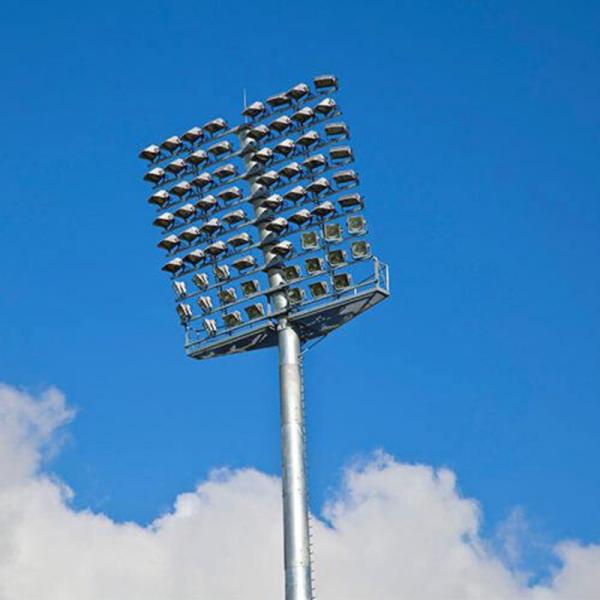

Hot Dip Galvanization Structural Steel Grade Post Light Pole
Hot Dip Galvanization Structural Steel Grade Post Light Pole
Specifications
Brand Name :
GUANGXIN
Model Number :
GX-15Y81
Certification :
ISO9001:2008 SGS COC
Place of Origin :
Guangzhou, China
MOQ :
100pcs
Price :
USD60-80 per piece
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
5000pcs monthly
Delivery Time :
20-30 days
Packaging Details :
Plastic Bubble sheets and pearl wool sheets
Name :
Hot Dip Galvanization Structural Steel Grade Post Light Pole
Surface Finish :
Hot dip galvanization and powder or PVDF coating
Material :
Certificate Q345B
Tension strength (Mpa) :
360~510 or 470~630
Grade :
Q235B, Q345B or specified steel
Shape :
Tapered, Conical, Octagonal, Square, Cylinder
Joint of Poles :
Insert mode,inner flange mode,face to face joint mode
Allowable deflection :
0.5 ~1.0 degree @ operational speed
Color :
White, Silver, Grey or specified colors
Steel Grade :
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or
Description

Hot Dip Galvanization Structural Steel Grade Post Light Pole

Specifications:

Descriptions Galvanized Steel street / roadway / highway / stadium / Utility / area Light Pole
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Powder Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.

1. The mast
1. Design standard:AASHTO standard
2. Wind speed: more than 30M/sec
3. Anti-seismic design: more than level 7
4. Mast material:ASTM A572 GR65/Q345/Q235
5. Mast structure: 12/16/20 sided
6. Mast assembly: no welding on site
7. Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating
2. Lighting fixture f
The entire lighting fixture is constructed from aluminum alloy, formed by die casting, with protection degree more than IP65.high pressure sodium lamp and metal lamp are designated lighting source, and their power range is from 250W to 2000W.lighting fixtures design is calculated by professional simulation program ,and customization is still available.
3. the crown
The primary function is to fit lighting fixtures for illuminating.
All crowns are constructed form high-quality steel ,and both inner and outer surface are processed by hot-dip-galvanization.
4. the raising-and-lowering system
1.The raising-and-lowering system is core part of the raising-and-lowering galvanized steel high mast flood lighting pole ,so that guarantees the safety and reliability of operating.
2.The raising-and-lowering system mainly consists of lighting rod,closed mast-top assembly, latching mechanism, crown, steering assembly, bumper, cables, winch, motor, lighting control cabinet, raising-and-lowering control cabinet and so on.

Hot Dip Galvanization Structural Steel Grade Post Light Pole

High Mast Light Fixtures Steel Lighting Pole
