Self-supporting Galvanized Steel Telecommunications Tower with Custom Designs and Manufacturing

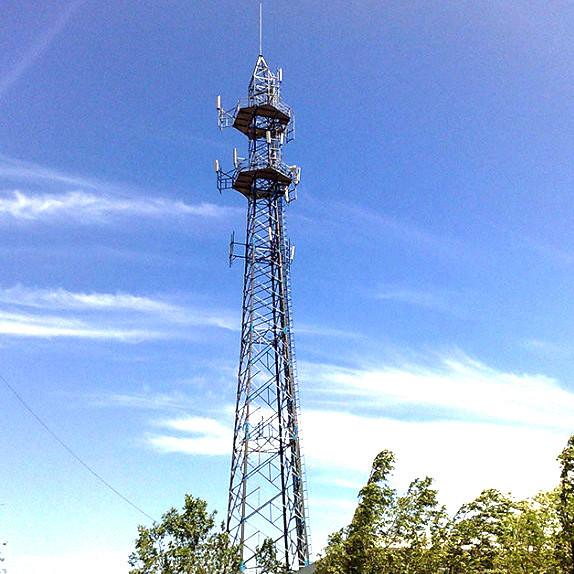

25m to 100m Free Standing Telecommunications Lattice Tower Galvanized Steel Made

We're professional manufacturer of all kinds of communications towers and steel poles, including:

1, Free Standing galvanized steel 3-legged lattice tower, made from steel tubes or/and angular plates.

2, Self-support 4-legged lattice tower made from angle steel plates or/and tubes.

3, Guyed wire towers, square or triangle guyed towers.

4, Mono poles

5, Artificial tree monopole camouflaged towers.

6, Camouflaged monopole towers with fiberglass grille shroud on top for hiding antennas.

7, All kinds of lighting towers and street light poles.

Technical Specifications of Galvanized Steel Materials and Telecom Tower

Applications of Steel Towers

1, GSM, 2G/4G/5G cellular Mobile communications antennas mounting and telecom signal transmission tower.

2, FM, AM, VHF radio transmission tower.

3, TV station tower

4, Electrical power transmission and distribution pylon

5, Millitary watch tower

6, Radar Microwave tower etc.

Basic Procedures of Building A Telecom Tower

1, Site geologival investigation or survey to clasify terrain category and confirm it meets tower erection requirements

2, Design tower body and foundations

3, Test and specify the tower body and foundation by professional design and calculation software

4, Specify the tower and foundation dimensions and specifications of materials.

5, Prepare lofting and shop drawing of tower sections

6, Manufacture tower members according to the drawings and specifications.

7, Dig holes for the tower foundations and make a cement underlayer on the bottom

8, Make steel cage frames and anchorages for foundations

9, Make wooden molds for constructing concrete foundations

10, Set up grounding net with steel plates or rods around foundations.

11, Pour concrete and construct bottom blocks and pedestals

12, Dry and watering concrete foundations

13, Test the impact strength and make sure it meets the design specifications.

14, Fix tower footings to foundation pedestals and other tower members

15, Assemble tower sections and antenna brackets, ladder, rest and work platforms, lightning rod, grounding plates etc.

16, Set grouding of tower body and foundations, make sure at least 2 feet of tower must be connected with the ground net, lightning rod must be connected with grounding net through at least 2 foundations.

17, Test the straightness or verticality of tower

18, Complete if all specifications are confirmed.
