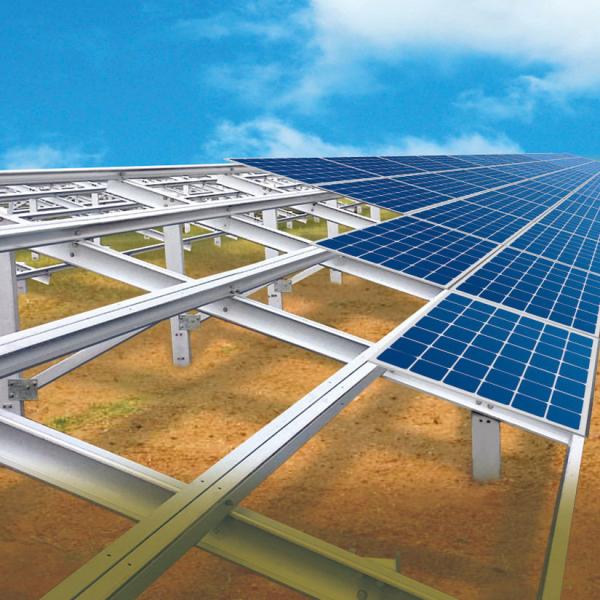

Galvanized Steel Solar Panel Support Structure Photovoltaic System Steel Frame
Galvanized Steel Solar Panel Support Structure Photovoltaic System Steel Frame
Galvanized Steel Solar Panel Support Structure Photovoltaic System Steel Frame
Galvanized Steel Solar Panel Support Structure Photovoltaic System Steel Frame
Specifications
Brand Name :
GUANGXIN
Model Number :
SOLAR-STEEL-01
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
50 tons
Price :
USD100 to USD150 per ton
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 tons monthly
Delivery Time :
20-30 days
Packaging Details :
bundles
Material :
Structural low carbon mild steel
Surface Finish :
Hot dip galvanization
Design :
Customized to drawings
Dimensions :
Customized to drawings
Application :
Solar power farms, photovoltaic power plants
Description

Galvanized Steel Solar Panel Support Structure Photovoltaic System Steel Frame

As a renewable and sustainable engergy, solar power is more and more popular and applicable on the world, solar panel photovoltaic systems are very important to build a power station. In order to support the solar panels, a good steel structure is required.

We're professional manufacturer of all kinds of steel structures including telecom towers, power transmission towers, wind turbine towers, solar panel structures, traffic gantry frames and other related products. We can fabricate these steel works according to customer's designs, drawings and requiements.

The solar panel photovoltaic support structures are genereal made of I-beams, C-type beams, CHS, SHS and RHS beams and other steel materials.

Galvanized Steel Solar Panel Support Structure Photovoltaic System Steel Frame

Technical Specifications of Galvanized Steel Materials for making solar panel support structures

Galvanized Steel structures
1. Material
Weldable Structural Low Carbon Steel Plates or Tubes
2. Grade Main structure Braces
GB/T1591:Q345B GB/T 700:Q235B
ASTM A572 Gr50 ASTM A36
EN10025: S355JR, S355J0,S355J2 EN10025: S235JR, S235J0,S235J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength 470~630 MPa 360~510 MPa
6. Yield strength 355 MPa 235 MPa
7. Elongation (%) 24 20
8. Impact strength KV (J) 27(20°C)---Q345B(S355JR) 27(20°C)---Q235B(S235JR)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Galvanizing
14. Galvanization standard of steel sections ISO 1461 or ASTM A123
15. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
