50m Telecom Steel Tower Free Standing Galvanized Steel Iron Mobile Tower 5G Station
50m Telecom Steel Tower Free Standing Galvanized Steel Iron Mobile Tower 5G Station
50m Telecom Steel Tower Free Standing Galvanized Steel Iron Mobile Tower 5G Station
50m Telecom Steel Tower Free Standing Galvanized Steel Iron Mobile Tower 5G Station
Specifications
Brand Name :
GUANGXIN
Model Number :
SST-049
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD1998-19998 per set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
20-30 days
Packaging Details :
plastic bubble sheets
Name :
Galvanized Angle Steel GSM or 5G Mobile Tower
Material :
Weldable Structural Angle Steel Plates or pipes
Surface Finish :
Hot Dip Galvanization
Height :
30m to 120m or customized height
Material Grade :
GB Q235, Q345, Q355 or specified grade
Yield Strength :
235~355MPa
Galvanized Thickness :
65~85 Microns
Design :
1-5 platforms with mounting brackets
Wind Load :
0.36-1.0kN/sqm
Lifespan :
20-50 years
Warranty :
3 years
Description

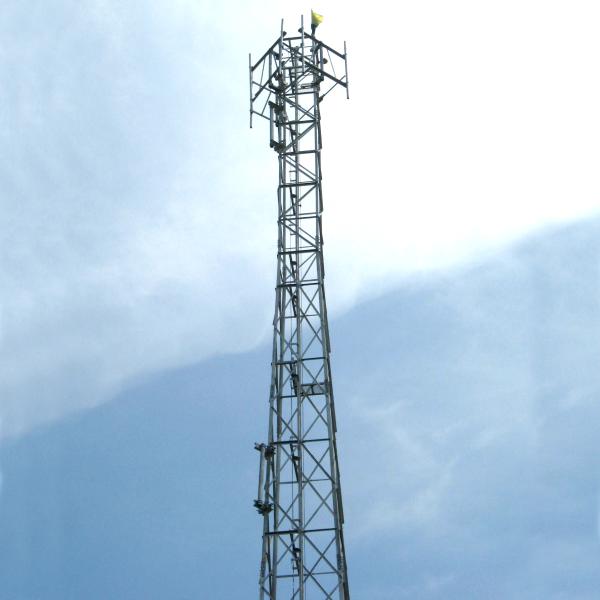

50m Free Standing Galvanized Steel Iron Mobile Tower 5G Station

4 Legs Self-Supporting Galvanized Angle Steel GSM Lattice Tower

4-legged Free Standing Steel GSM or 5G Mobile AntennaTower

Professional supplier and factory of Self-support free standing Galvanized steel Lattice Communication Tower, mobile phone Antenna Tower, Radio Tower and TV tower, Power Transmission and Distribution Tower

Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed as 3 legs or 4 legs and fixed on steel framed concrete pedestal foundations, composed of galvanized tubular steel tubes or angular steel plates by welding and fastening with bolts and nuts. With height of 20m to 120m, the galvanized iron steel lattice towers are widely used for mounting mobile communication macrocell or microcell stations and power transmission or distribution wires or cables.

There are 3 popular types of lattice communication towers--ground fixed self-spoorting steel towers, rooftop self-supporting steel towers and steel wire guyed towers. The steel lattice towers are usually as high as 35m to 120m. Besides using for telecommunications, the steel towers are also widely used for power transmission and distribution as well as TV and radio signal transmission stations.

50m Telecom Steel Tower Free Standing Galvanized Steel Iron Mobile Tower 5G Station

SST: Self-supporting Steel Tower

Specifications of 4 Legged Angular Steel Lattice Tower

Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization plus optionally painting
Galvanized layer T≥65μm
Height 20m to 120m, customized to requests and specifications or drawings
Design 4 legs self-supporting free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Concrete steel frame Foundations/pedestals, anchoring hold down bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G cellphone antennas, VHF/FM radio antennas, microwaves, telecom microcell or macrovell stations, TV stattions etc.

50m Telecom Steel Tower Free Standing Galvanized Steel Iron Mobile Tower 5G Station

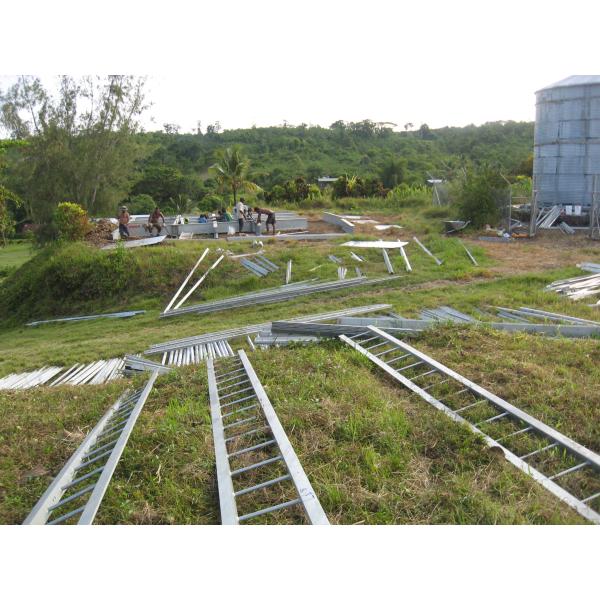

Tower erection site

The structure of 4-legged galvanized steel lattice communication tower is generally composed of concrete foundations with steel cage frames, anchoring bolts, sections of tower body, 1 to 5 platforms, mountning brackets, lightning rotection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design structure and height of telecommunication towers can be customized according to requirements and drawings.

50m Telecom Steel Tower Free Standing Galvanized Steel Iron Mobile Tower 5G Station

Galvanized angle steel tower foundations
