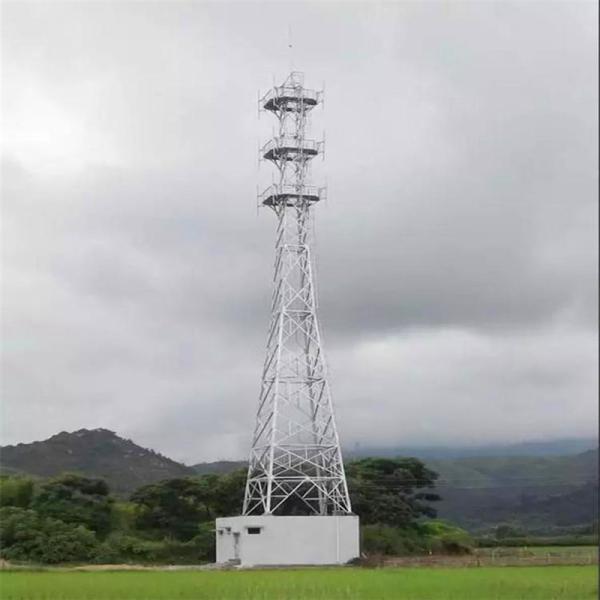

60m Telecom Steel Tower Self Supporting Lattice Structure
60m Telecom Steel Tower Self Supporting Lattice Structure
Specifications
Brand Name :
GUANGXIN
Model Number :
GX-3492
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
1 set
Price :
USD1998-20000 per set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
20-30 days
Packaging Details :
plastic bubble sheets or cloth package by bundle
Name :
60m Communication Tower Steel Tube Self supporting Lattice Structure
Material :
Weldable Structural Angle Steel Plates or pipes
Surface Finish :
Hot-dip Galvanized or Painting
Height :
60m height
Material Grade :
GB Q235, Q345, Q355 or specified grade
Yield Strength :
235~355MPa
Galvanized Thickness :
65~85 Microns
Design :
Lattice Frame Constructure
Wind Load :
0.36-1.0kN/sqm
Color :
Grey Painting
Description

60m Communication Tower Steel Tube Self supporting Lattice Structure

The 60m Communication Steel Tube Self supporting Lattice Tower is optimized for medium to heavy loads which is used for standard cellular sites.
Guangxin towers can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,
obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and
orientation according to customer Specification.

Material:Q235,Q345 usually
Design Standard: AWS D 1.1; ASTM123, ANSI-TIA-222-H
Bolt Grade: 6.8, 8.8
Basic Wind Speed: 0-330km/h
Working and Rest Platform:height and quantity up to clients
Antenna Load:depends on clients
Steel Tube Tower Color:customized
Galvanized: according to ASTM A123 standard hot dip galvanized. We have our own galvanization plant.
Usage of Towers: GSM/CDMA Equipment
Payment: T/T, L/C, 30% deposit and 70% before shipment
Delivery Time:usually 30 days after deposit received
Warranty: at least 25 years

Specifications of Lattice Telecommunication Steel Tower

Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

60m Telecom Steel Tower Self Supporting Lattice Structure

We are leading Chinese Tower manufacturer which have more than 10 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 45 countries over the decades.

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
