Hastelloy C2000 Weld Neck Pipe Flanges Forged 150 - 2500 1/2 - 24 RF FF RTJ
Hastelloy C2000 Weld Neck Pipe Flanges Forged 150 - 2500 1/2 - 24 RF FF RTJ
Specifications
Brand Name :
BoYue
Model Number :
BYWN00022
Certification :
ISO,BV,SGS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
40000pcs per month
Delivery Time :
10-100 days depending on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
Product Name :
Monel 400 Flange AS PER ASME B16.5150# 1/2
Size :
1/2" - 24"
Process :
Forged
Class Rating :
150#
Sealing Face :
RF
Face Finish :
Smooth /Stock Finish
Application :
Chemical /Oil/Gas/Energy
Standard :
ANSI/ASTM/ASME
Description

Hastelloy C2000 150# - 2500# Weld Neck Pipe Nickel Alloy Flanges 1/2" - 24" RF FF RTJ

1. Hastelloy C-2000 nickel alloy Flanges Equivalent Standard

STANDARD UNS WNR.
Hastelloy C2000 N06200 2.4675
ASTM B564 Hastelloy® Alloy C2000 Forged nickel alloy Flanges Chemical Composition
Grade Ni Mo Cr Fe W Co Mn C V P Si
Hastelloy C2000 Remainder 15.0-17.0 14.5-16.5 4.0-7.0 3.0-4.5 2.5 max 1.0 max .01 max .35 max .04 max .08 max
C-2000 nickel alloy flange Hastelloy ASME SB564 Threaded / Screwed Flanges Mechanical Properties
Grade Tensile Strength Yield Strength Elongation at break
Hastelloy C2000 690 MPa 310 MPa 45%

2. The difference between Hastelloy C22, Hastelloy C2000, Alloy 59,

The chemical anlaysis of these alloys is as follows:

Alloy 22 nickel alloy flange has a higher Chromium level than C276, demonstrating improved corrosion resistance in oxidising aqueous media when high levels of chloride ions are present.

Alloy C2000® nickel alloy flange has the same chemistry as Alloy 59, but with a Copper addition of 1.60%. This enhances the alloys corrosion resistance to reducing environments, but at the cost of reduced thermal stability and weldability.

Alloy (UNS) Ni Cr Mo W Cu Fe Carbon
C276 (N10276) Bal 14.50-16.50 15.00-17.00 3.00-4.50 – 4.00-7.00 0.010max.
22 (N06022) Bal 20.00-22.50 12.50-14.50 2.50-3.50 – 2.00-6.00 0.015max.
59 (N06059) Bal 22.00-24.00 15.00-16.50 – – 1.00 nom. 0.010max.
686 (N06686) Bal 19.00-23.00 15.00-17.00 3.00-4.40 – 1.00 max. 0.010max.
C2000® (N06200) Bal 22.00-24.00 15.00-17.00 – 1.30-1.90 3.00 max. 0.010max.

3. Hastelloy C2000 nickel alloy flange common test :

① PMI test

② Visual test

③ Dimension test

④ IGC test

⑤ UT test

⑥ Penetrant test

Hastelloy C2000 Weld Neck Pipe Flanges Forged 150 - 2500 1/2

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type Weld Neck Pipe Flanges
ModelNumber Hastelloy C2000 Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month

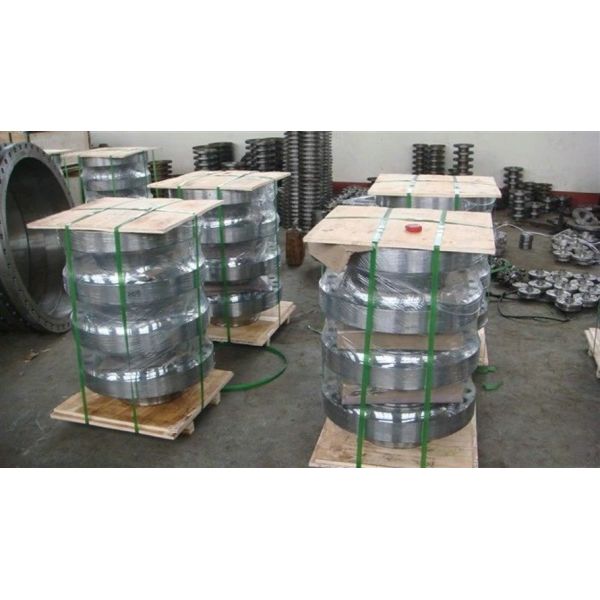

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1. One-Stop Service,One Single Source.

2. No MOQ.

3. Best quality,competitive price

4. Fast Reply.

5. On-Time Delivery

6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
