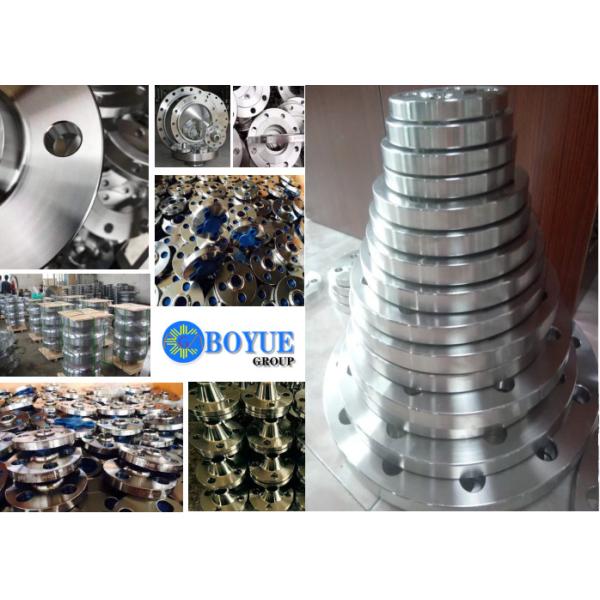

Hastelloy C276 Slip On Forged Steel Flange ASME B16.5 For Oil / Induatry
Hastelloy C276 Slip On Forged Steel Flange ASME B16.5 For Oil / Induatry
Specifications
Brand Name :
BOYUE
Model Number :
BYSO00011
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
1000T/Week
Delivery Time :
5-10 Work days
Packaging Details :
wooden packing
Name :
SO Pipe Flanges
Material :
Alloy Steel
Size :
2"-12"
Pressure :
Class150/300/600/900/1500 etc
Manufacturing process :
Push,Press,Forge,Cast,etc.
Standard :
DIN,ANSI,ASME,JIS,GB
Description

RF FF RTJ Forged Hastelloy C276 Slip On Pipe Flanges ASME B16.5 For Oil and Induatry

1. Flange Types Available: Blind Flanges, Lap Joint Flanges, Slip On Flanges, Socket Weld Flanges, Threaded Flanges, Weld Neck Flanges

2. Hastelloy C276 Specifications:

N10276, ASTM B574, ASME SB574, Werkstoff 2.4819, ASTM G28-A/B, EN 10204-3.1, ASME B18.2.2, ASTM B619, ASME SB619, ASTM B366, ASME SB366, WPHC276, ASME B16.11, ASTM B564/ASME SB564, COLD DRAWN, HOT FINISHED, ASTM B575, ASME SB575, COLD ROLLED, HOT ROLLED, ASME B16.9, ASME B16.5, ASTM B462, ASME SB462

3. Overview

HASTELLOY C276 is a Nickel-chromium-molybdenum wrought alloy that is considered the most versatile corrosion resistant alloy available. This alloy is resistant to the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in an as welded condition. Alloy C-276 also has excellent resistance to pitting, stress-corrosion cracking and oxidizing atmospheres up to 1900°F. Alloy C-276 has exceptional resistance to a wide variety of chemical environments.

4. Characteristics

HASTELLOY C276 is one of the few alloys resistant to wet chloride gas, hypochlorite and chlorine dioxide solutions.

HASTELLOY C276 has exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.

HASTELLOY C276 is not prone to grain boundary precipitation in the as welded condition and therefore suitable for many chemical process applications

5. HASTELLOY C276

Hastelloy C276 alloy, UNS N10276, is the most widely used and versatile, corrosion resistant alloy. Very good resistance to reducing, and mildly oxidizing corrosives. Excellent stress corrosion cracking resistance with very good resistance to localized attack. Select the following links for more details about Hastelloy C276 Bolts, Screws, and Flanges.

Chemical Requirements
Ni Cr Mn Mo C Si Fe
Max % Bal. 16.5 1.0 17.0 0.010 0.08 7.0
Min % 14.5 15.0 4.0

Mechanical Property Requirement
Ultimate Tensile Yield Strength (0.2% OS) Elong. in 2 in. (50.8mm) or 4D min,% R/A Hardness
Min 100 KSi 41 KSi 40
Max
Min (Metric) 690 MPa 283 MPa
Max

6. Applications

Digesters and bleach plants in the paper industry.

Components exposed to sour gas.

Equipment for flue-gas desulfurisation plants.

Evaporators, heat exchangers, filters and mixers used in sulfuric acid environments.

Sulfuric acid reactors.

Organic chloride process equipment.

Equipment for processes utilizing halide or acid catalysts.

Hastelloy C276 Slip On Forged Steel Flange ASME B16.5 For Oil / Induatry

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ASME B16.5 Type SO Flange
ModelNumber Hastelloy C22 Thickness Sch40s,Sch80s,sch160
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:30000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally ply wooden case or following customer's requirement.

Port:Shanghai/Tianjin

Commerce Clause

Price: Depending on quantity
Minimum Order Quantity 1 PCS
Payment Terms: T/T or Western Union or LC
Supply Ability: 3,0000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Hastelloy C276 Slip On Forged Steel Flange ASME B16.5 For Oil / Induatry

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
