Specifications
Brand Name :
BY
Model Number :
BYTH0007
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10000 PC Per Month
Packaging Details :
Regular shipping packaging or depends on customer's requirement
Material Grade :
Nickel Base Alloy
Standard :
DIN,ANSI,ASME,JIS,GB
Application :
CHEMICAL /OIL/GAS/ENERGY
Technic :
Forged
Type :
SWRF
Size :
1/2"-48",150#300#600#900#1500#2500#
Material :
Alloy Steel
Pressure :
900#
Description

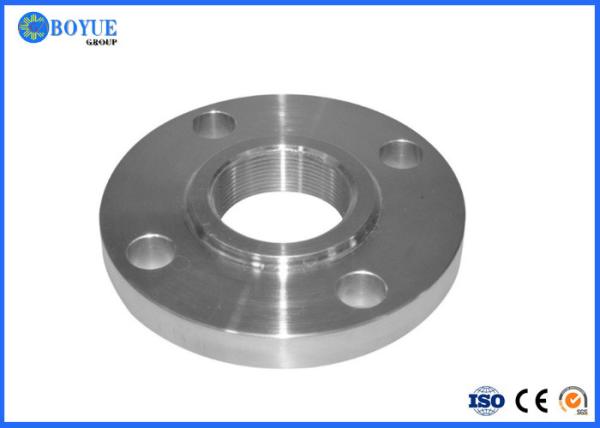

Forged 150# - 2500# Threaded Hastelloy C276Pipe Flange UNS N06625 Steel Pipe Flange​

1. ASTM B564 Hastelloy C276 Forged Forged Shaft Disc Ring Forgings,

Flanges, Forged and Plate Flanges | Slip-On | Weld Neck | Blind | Lap Joint | Socket Weld Flanges manufacturer, stockist & supplier of ASTM B564 Hastelloy C276 Forged Flanges, Forged and Plate Flanges | Slip-On | Weld Neck | Blind | Lap Joint | Socket Weld Flanges. Supplying ASTM B564 Hastelloy C276 Forged Flanges from approved manufactures and stockists based in China.

2. Forging Capacities

  • Seamless Rolled Rings up to 250" OD
  • Sleeves up to 205" long
  • Forged Bars up to 350" long
  • Discs, Blocks & Rectangles up to 60,0000 lbs.

3. Using R&M Forge and Fittings can save you time and money:

  • Use our volume to leverage your purchases
  • Use our logistics team to expedite your order
  • On time, and right, the first time
  • Multiple solutions for materials and finish

4. More Information about Hatelloy C276

Chemical Range
Element Minimum Maximum
Carbon (C) -- 0.02
Chromium (Cr) 14.5 16.5
Cobalt (Co) -- 2.5
Iron (Fe) 4.0 7.0
Manganese (Mn) -- 1.0
Molybdenum (Mo) 15.0 17.0
Nickel (Ni) Balance --
Phosphorus (P) -- 0.03
Silicon (Si) -- 0.08
Sulphur (S) -- 0.03
Tungsten (W) 3.0 4.5
Vanadium (V) -- 0.35
Typical Physical Data
Density 0.321 lb /in3
Melting Point 2500 ºF
Specific Heat 0.102 (Btu/lb · ºF)
Coefficient of Expansion 6.2 (70-200 ºF , 10-6 in/in · ºF)
Thermal Conductivity 78 (Btu · in/ft2 · h · ºF)
Electrical Resistivity 779 (ohm·circ mil/ft)
Applicable Specifications
Rod ASTM B574
Sheet & Plate ASTM B575
Tube & Pipe ASTM B622, ASTM B626, ASTM B619
Forgings ASTM B564

4. Other Material Forged Shaft Disc Ring Forgings

Carbon Steel 1004 – 1080, SA 105, SA 350, LF1, LF2, LF3, LF6, A707, A694
Stainless Steel 303, 304/L/H, 316/L/H, 310, 317/L, 321/H, 347/H, 410, 416, 420, 440, 17-4, 254 SMO, Nitronic 50®, Nitronic 60®, Duplex & Super Duplex SS, 2205 Duplex, Super Duplex 2507, Zeron 100®, Ferralium 255®
Alloy Steel 4130, 4140, 4330, 4340, 8620, 8630, 9310
Chrome Moly SA 182, F1, F5, F5A, F9, F11, F12, F22, F22M, F91
Nickel Alloys 200, 201, Monel 400®, Monel K500®, Inconel 600®, Inconel 617®, Inconel 625®, Inconel 718®, Inconel X750®, Incoloy 800®, Incoloy 825®, Hastelloy C-276®, Hastelloy B2®, Hastelloy B3®, Hastelloy C-22®, 904L, AL6XN

Forged 150# - 2500# Threaded  Hastelloy C276 Pipe Flange UNS N06625 Steel Pipe Flange

Product Attribute

Place of Origin China Brand Name BOYUE
Standard ASME B16.5 Type Threaded Flange
ModelNumber Inconel 625 Alloy Thickness #600 #900 #1500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin

Product Description

Material F304, 304L, F316, F316L, F321, 316Ti, 317L, 347, F5, F9, F11, F22, LF2, A105, 1.4541, 1.4571, 1.4404, 1.4307 and P250GH.
Size from 1/2"-84"
Standard ANSI, DIN, JIS, BS, SH, BS4504, EN1092-1, BS3293 and other standards.
type WN,SO,BL,SW,LJ,TH,
packing plywood case, pallet or according to customers’ requirements
certificate TUV&ABS, ISO9001:2000, Pressure Equipment Directive PED 97/23/EC, and BV and AD2000-Merkblatt WO
Sealing surface FF ,RF, LJ, FM ,R.T.J and so on

Forged 150# - 2500# Threaded  Hastelloy C276 Pipe Flange UNS N06625 Steel Pipe Flange

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)

Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.

Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.

Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.

Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
