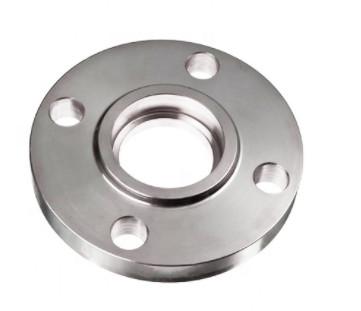

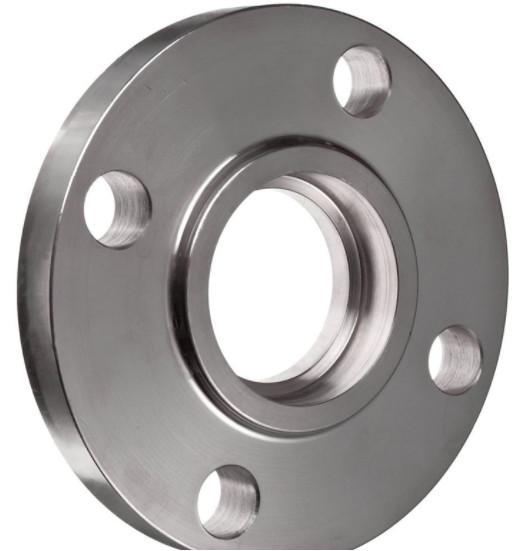

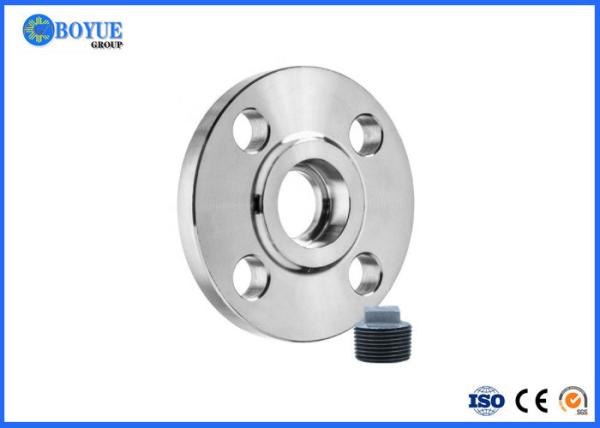

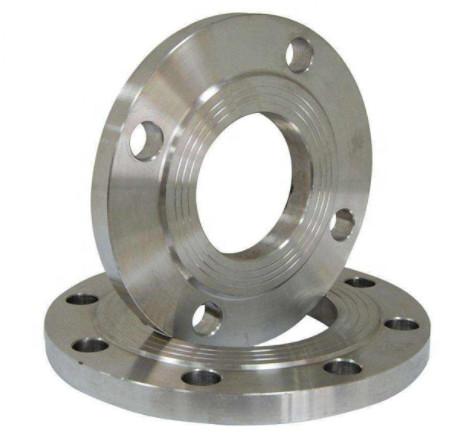

RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60
Specifications
Brand Name :
BOYUE
Model Number :
Duplex Stainless Steel
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
49820 PCS
Delivery Time :
25
Packaging Details :
PLY Wooden case or pallet packing.
Standard :
ASME B16.5
Size :
10"
Material :
32750(2507) F53
Type :
Socket Weld
Product name :
Socket Weld Pipe Flanges
Pressure :
Class150/300/600/9001500/2500
Description

Forged Flange 32750(2507) 10" Class 150 Duplex Steel Stainless Steel F53 F51 F60 Socket Weld Pipe Flanges RTJ ​

Class 150 Socket Neck Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height Socket Depth PCD Socket Bore No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size Weight in kg
A B C D E F G H J
1/2 15 90 9.6 30 14 34.9 2 10 60.3 22.2 4 1/2 50 55 5/8 M14 0.8
3/4 20 100 11.2 38 14 42.9 2 11 69.9 27.7 4 1/2 50 65 5/8 M14 0.9
1 25 110 12.7 49 16 50.8 2 13 79.4 34.5 4 1/2 55 65 5/8 M14 0.9
1 1/4 32 115 14.3 59 19 63.5 2 14 88.9 43.2 4 1/2 55 70 5/8 M14 1.4
1 1/2 40 125 15.9 65 21 73 2 16 98.4 49.5 4 1/2 65 70 5/8 M14 1.4
2 50 150 17.5 78 24 92.1 2 17 120.7 61.9 4 5/8 70 85 3/4 M16 2.3
2 1/2 65 180 20.7 90 27 105 2 19 139.7 74.6 4 5/8 75 90 3/4 M16 3.2
3 80 190 22.3 108 29 127 2 21 152.4 90.7 4 5/8 75 90 3/4 M16 3.7
 RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60

RTJ Socket Weld Pipe Flanges , Class 150 Forged Stainless Steel Flanges F53 F51 F60

A. Stainless:

304, 304L, 304H, 310S, 316L, 317, 317L

B. Duplex:

2205, S32750, 904L 254SMO, S31050

C. Special:

Alloy20, Nickel200, Monel400, Alloy625, Incoloy800, Alloy800H, AlloyC-276. Alloy-6XN.

D. Carbon:

ASTM A860 WPHY42. WPHY52, WPHY60, WPHY65, WPHY70

ASTM 694 F42, F46, F50, F52, F60, F65, F70

ASTM A106 GR.B, ASTM A234 WPB, ASTM A105

Port:Tianjin/Shanghai/Ningbo
Lead Time :



Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15-30 To be negotiated



Place of Origin China Brand Name BOYUE
Standard ANSI, ISO, ASME, DIN, ASTM Type SW/WN/SO/BL/TH Flanges
ModelNumber Steel Flange Thickness #150,#300,#600,.#900,#1500,#2500
Packing Ply-Wood Cases Payment 30%TT+70% Balance

Supply Ability:40000Pieces / per Month
Packaging & Delivery
Packaging Details:Generally plywooden case or following customer's requirement.
Port:Shanghai/Tianjin

Commerce Clause


Minimum Order Quantity: 1pcs
Price: Depending on quantity
Payment Terms: T/T or Western Union or LC
Supply Ability: 40000pcs per month
Delivery Time: 10-100 days depending on quantity
Packaging Details: PLY-WOODEN CASE OR PALLET

Why Choose Us

1. One-Stop Service,One Single Source.
2. No MOQ.
3. Best quality,competitive price
4. Fast Reply.
5. On-Time Delivery
6. Professional sales and technical team .

FAQ

Q1: Are you a factory or a trade company?
A1: We are a professional manufacturer for designing and producing of Large-size products.(View Mor)
Q2: Do you make customized products or finished parts?
A2: All parts are custom made only, and in stock, we can produce based on your drawings.
Q3: Will my drawing be e after you get it?
A3: Yes, we will not release your design to third party unless with your permission.
Q4: What is the MOQ?
A4: Small order is acceptable, but the more, the cheaper.
Q5: How about the samples?
A5: We are happy to make prototype part or sample for clients to ensure quality standard, but it’s charged according to your drawing.
