Specifications
Brand Name :
DRAGON STEEL BALLS
Model Number :
45# 60Mn B2 B3
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
3000 tons / Month
Delivery Time :
3-7 work days/ 25 tons
Packaging Details :
Strong Steel Pallets
Advantage :
High Wear Resistant
Product Name :
Grinding Rods
Application :
Cement plant
Port :
Tianjin/Qingdao/Shanghai
Type :
Steel
Process :
Heat Treatment
Description

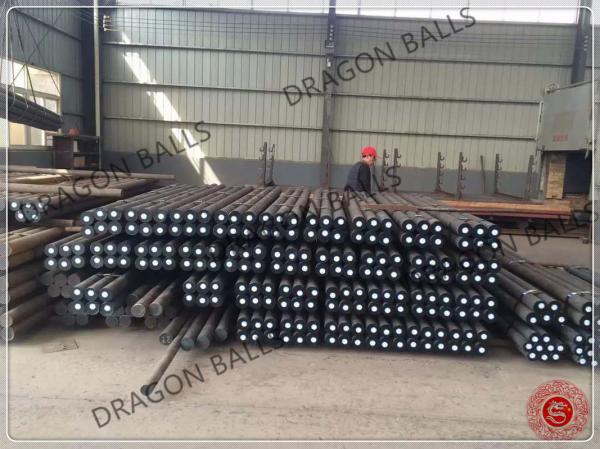

Good Wear Resistant Grinding Rods Customized Material Rods For Rods Mill

1. Description

Our grinding rods have excellent wear resistant property, and the products can save a lot of cost for the customer.

2. Classification

According to the different chemical elements , grinding rods can be divided into C45,60Mn,B2 and B3. At present, the above four materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.

3. Manufacturing process

Grinding rods are round steel undergoes a series of heat treatment

4. Detail Specifications

① Chemical Composition

Material

Chemical Composition

C45

C:0.42-0.5,Si:0.17-0.37,Mn:0.5-0.8,Cr:≤0.25,

P:≤0.035, S:≤0.035, Ni:≤0.25, Cu:≤0.25

60Mn

C:0.55-0.65, Si:0.17-0.37, Mn:0.7-1.0, Cr:≤0.25,

P:<0.04, S:<0.04, Ni:≤0.3, Cu:≤0.25

B2

C:0.72-0.85, Si:0.17-0.37, Mn:0.7-1.0, Cr:0.4-0.6,

P:≤0.025, S:≤0.025, Ni:≤0.02, Cu:≤0.02

B3

C:0.58-0.66, Si:1.3-1.9, Mn:0.65-0.8, Cr:0.7-0.9,

P:≤0.025, S:≤0.025, Ni:≤0.02, Cu:≤0.02

② Size

Diameter 30mm-90mm
Length 3.2 m-4.5 m

5. Test

① Factory test

Grinding rods test is an very important step. Real-time detection will be carried out in the production process. Rods produced in each shift will be sampled in large quantities and tested for size, hardness, chemical composition to ensure the quality of grinding rods.

② The third party test

According to the customer different demand, grinding rods can be tested by any third party.

6. Packing

Grinding rods are usually packed in strong steel pallets ,it can also be customized according to different customer needs.

Customized Material Steel Grinding Rods High Reliability Good Wear Resistantce

7. Factory Introduction

Dragon balls factory are established in 2001.Up to now, we have cooperated with many large power plants in China for more than 10 years. Since 2007, Dragon balls has set up its own foreign trade team, and began to show itself to the world. The forged ball, cast ball and cylpebs are widely praised by friends at home and abroad.


Dragon balls has a very mature technology research and development team and sales team, we are constantly expanding the factory and team every year, in order to meet the growing demand at home and abroad.

Steel balls are a long-term business.

We are willing to do it all the time because if we know someone, we will become permanent friends.

We can always do this for so many years because our quality supports our long-term cooperation and friendship.

The quality of every steel ball is crucial because it is a strong bridge that connects us.

Customized Material Steel Grinding Rods High Reliability Good Wear Resistantce
