QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic
QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic
QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic
QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic
QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic
QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic
Specifications
Brand Name :
KUANGYUAN
Model Number :
QC
Certification :
ISO CE GOST
Place of Origin :
Henan,China
MOQ :
1Set
Price :
USD 10000-45000
Payment Terms :
L/C, T/T
Supply Ability :
30000 sets per year
Delivery Time :
45~65 work days
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for co
product name :
QC type electromagnetic bridge crane
girder type :
double girder
working class :
A6
lifitng capacity :
5T, 10T, 16(16/3.2)T, 20(20/5)T, 32/5T
lifitng height :
16(16/18)m
lifting speed :
13m/min
main electrical parts :
Schneider Brand
material :
Q235/Q345 Steel Plate
control method :
Cabin Operation + Pendant +Remote(Customized)
power source :
3 Phase 380V 50hz/Custmized
Description

PRODUCT DESCRIPTION

10T A6 QC type electromagnetic double girder overhead bridge crane custom color​

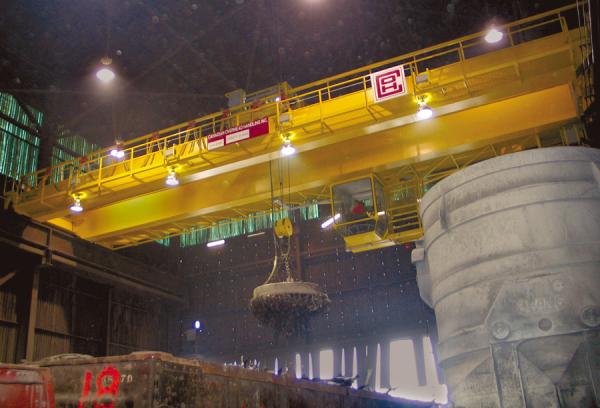

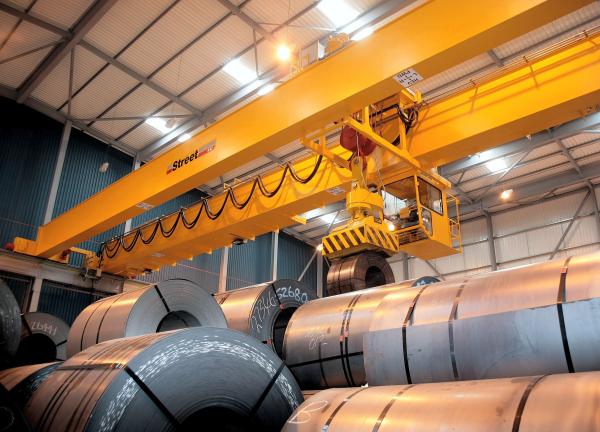

QC model overhead crane is composed with Girder frame, Crane travelling device, and trolley with electric magnet. The crane are equipped with electric magnet, which makes the crane handle the steel parts easily, such as steel plant, steel ingot, steel scrap, scrap steel plate, etc.
QC overhead crane is designed to operate in the indoor workshop or outdoor for handling small steel parts.
The crane lifting and travelling speeds are fast, high efficiency.
The crane could keep Magnetism after power failure.
QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic

FEATURES AT A GLANCE

1.Overhead traveling on the steel structure, normally in workshop, heavy working duty A6
2.With magnetic/magnet plate under the crane as the lifting tool, to lift steel scrap, steel materials and so on.
3.Soft start, 3-5 speeds to operate, very stable to lift and running.
4.Six direction action, to make sure the enough wide working area.
5. Full safety system as follows:
Weight overload protection
Emergency stop system
Over current protection,Short-circuit protection .Voltage loss protection

PRODUCT PARAMETERS

QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic

QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic

Technique paremeters
起重量lifting weight t 16/3.2(主钩电磁)(main hanger electromagnetic) 20/5(主钩电磁)(main hanger electromagnetic) 32/5(主钩电磁)(main hanger electromagnetic)
工作级别working class A6
跨度span m 10.5~31.5
最大起升高度Max.lifting height m 16/18 16/18
速度Speed 起升hoisting 电磁electromagnetic m/min 13 12.6 9.5
副钩Aux.hook 14.6 15.5 15.5
小车运行travelling of crab 44.6 44.6 43.4
大车运行travelling of trolley 76, 89 76, 89 89, 75.3
电动机motor 起升hoisting 电磁electromagnetic kw YZR250M-6/37 YZR250M-6/45 YZR280M-8/55
副钩Aux.hook YZR160L-6/13 YZR180L-6/17 YZR180L-6/17
小车运行travelling of crab YZR132M-6/3.7 YZR132M-6/3.7 YZR160M-6/5.5
大车运行travelling of trolley YZR160M-6/2*7.5
YZR160L-6/2*11		 ZR160M-6/2*7.5
YZR160L-6/2*11		 YZR180L-8/2*11
YZR160L-6/2*11
电磁盘electromagnetic disk 型号model MW5-165L MW5-180L MW5-210L
吸重attracting weight kg 12500 14500 21000
自重dead weight 3200 4230 7000
直径daimeter mm 1650 1800 21000
电源power source 380V 50Hz 3-Ph AC
Technique paremeters
起重量lifting weight t 20/5(副钩电磁)(aux hanger electromagnetic) 32/5(副钩电磁)(aux hanger electromagnetic)
工作级别working class A6
跨度span m 13.5~31.5
最大起升高度Max.lifting height m 14 16/18
速度Speed 起升hoisting 电磁electromagnetic m/min 19.5 19.5
副钩Aux.hook 12.3 9.5
小车运行travelling of crab 44.6 42.4
大车运行travelling of trolley 112.5, 101.4 101.4, 101.8, 86.8
电动机motor 起升hoisting 电磁electromagnetic kw YZR180L-6/17 YZR180L-6/17
副钩Aux.hook YZR250L-6/45 YZR280L-8/55
小车运行travelling of crab YZR132M-6/3.7 YZR160M-6/5.5
大车运行travelling of trolley ZR160M-6/2*7.5
YZR160L-6/2*11		 YZR180L-8/2*11
YZR160L-6/2*11
电磁盘electromagnetic disk 型号model MW5-90L
吸重attracting weight kg 4200
自重dead weight 800
直径daimeter mm 900
电源power source 380V 50Hz 3-Ph AC

PRODUCT CONFIGURATION

Basic safety device:
1.Weight overload protection device.
2.Top quality long time bearing polyurethane materials buffer.
3.Lifting limit switch and traveling limit switch.
4.Emergency stop system.
5.Zero voltage protection.
6.Phases protection device.

7. High temperature resistance device (contact with us for more details.)
QC Type Double Girder Overhead Bridge Crane 10T Q345 Steel Electromagnetic

FAQ & CONTACT US

Are you interested in this QC series double girder overhead crane?We are ready to quote for you according to your customizable paremeters as follows.
(kindly please provide the following information when sending enquiry to us.)
1. Lifting capacity :_____ton
2. Span :______meters (it is center to center distance between railways)
3. Lifting height :_____meters (it is the distance from center of hook to floor)
4. Travelling length:_____meters
5. Industrial voltage _____V, _____HZ, 3Phases
6. Control mode: Pendent or Remote control or cabin control?
7. Do you also need us to supply rail and bus bar: YES or NO?
8. What material to be lifted?
Welcome your requirements.
