5t 10t Type eot single beam gantry crane A5-A7 rail mounted
5t 10t Type eot single beam gantry crane A5-A7 rail mounted
5t 10t Type eot single beam gantry crane A5-A7 rail mounted
5t 10t Type eot single beam gantry crane A5-A7 rail mounted
Specifications
Brand Name :
Kuangyuan
Model Number :
RMG
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
100sets/month
Delivery Time :
30working days
Packaging Details :
Cartons
Product name :
5t 10t Type Single Girder Bridge Crane
Lifting mechanism :
Electtic Trolley
Control Method :
Cabin control
Power Source :
380V-480V
Color :
Clients' Requirments
CranrType :
single Grider Gantry Crane
Work Duty :
A5-A7
Temperature :
-10~45℃
Bridge Type :
span Construction
Moror :
Chinese Famous Brand
Description

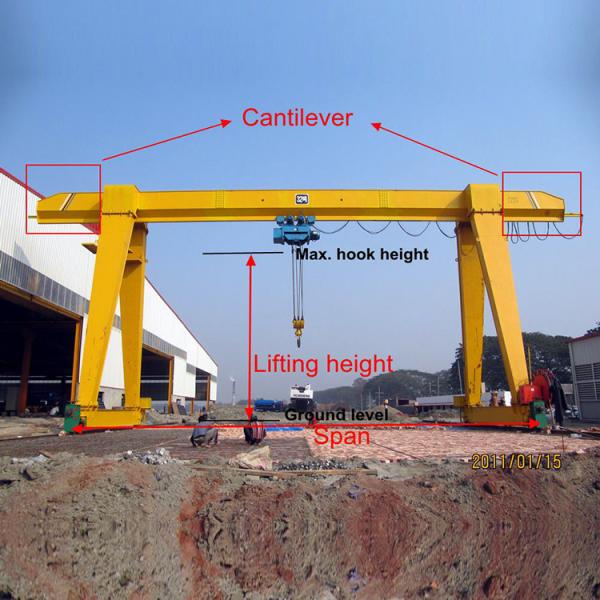

5t 10t Type eot single beam gantry crane A5-A7 rail mounted

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and noncantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.

Product Structure of single girder gantry crane :
Rated load/ton 5 10 16 20
Span/m 10-40
Lifting height/m 30
Working class A3/1bM
Lifting speed/m/min 8 7 3.5 3.5
Trolley running speed/m/min 20 20 20 20
Crane running speed/m/min 20 20 20 20
Dead weight/t 10.5~37.5 16.8~52 18.9~65 24.5~77

Attention:

Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).

Features:

1.Weight overload protection devices
2.Emergency stop system
3.Hooks with latch
4.High quality rubber buffers
5.Protective earthing
6.Crane switch and travel end switch
7.Current overload protection function

Certifications of single girder gantry crane :

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

5t 10t Type eot single beam gantry crane A5-A7 rail mounted

5t 10t Type eot single beam gantry crane A5-A7 rail mounted

Advantage:

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

5t 10t Type eot single beam gantry crane A5-A7 rail mounted

FAQ:

A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?
B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly
welcomed to our factory to make the inspections.
