125T YZS Type Casting Bridge Cranes Four Beam Heavy Duty
125T YZS Type Casting Bridge Cranes Four Beam Heavy Duty
125T YZS Type Casting Bridge Cranes Four Beam Heavy Duty
125T YZS Type Casting Bridge Cranes Four Beam Heavy Duty
Specifications
Brand Name :
KUANGYUAN
Model Number :
YZS
Certification :
ISO CE GOST GB/T
Place of Origin :
Henan,China
MOQ :
1Set
Price :
USD 96000~125000
Payment Terms :
L/C, T/T
Supply Ability :
10000 sets per year
Delivery Time :
55~65 days
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for co
product name :
125T Heavy duty YZS type four beam casting bridge cranes
girder type :
four girders
working class :
A7
lifting capacity :
125/32T, 140/32T
main lifting height :
22m, 24m
aux.lifting height :
24m, 26m
main lifting speed :
7.8m/min
aux.lifting speed :
9.7m/min
power source :
3 Phase 380V 50hz/Custmized
control method :
Cabin Control
Description
PRODUCT DESCRIPTION

125T Heavy duty YZS type four beam casting bridge cranes for sales
Casting crane is one of the main equipment in the continuous casting process of steel making. It is mainly used for mixing molten iron in the converter charging span to the converter, hoisting the molten steel to the refining furnace in the refining span or hoisting the molten steel in the molten steel span to the continuous casting turntable.
The overall structure of the foundry crane can be divided into: double-beam double-track, four-beam four-track, four-beam six-track and so on. The double-beam double-rail and four-beam four-rail forms are generally used for medium and large tonnage casting cranes, and the four-beam six-rail double trolley form is generally used for extra-large tonnage casting cranes. Casting crane is one of the leading products produced by our company. The casting cranes designed and manufactured by our company are advanced in technology, novel in structure, safe and reliable, economical and durable, and easy to maintain.
PRODUCT FEATURES
The casting cranes produced by our company can provide the following functions according to user requirements:
1. The speed of each mechanism can be adjusted (1:10 or greater);
2. The spreader can be rotated;
3. The hook distance of the gantry hook is variable;
4. Overload limit and alarm;
5. Load weighing and display, PLC control and fault detection, display, recording and printing systems;
6. Prevent collisions between cranes with the same span.
PRODUCT PARAMENTERS

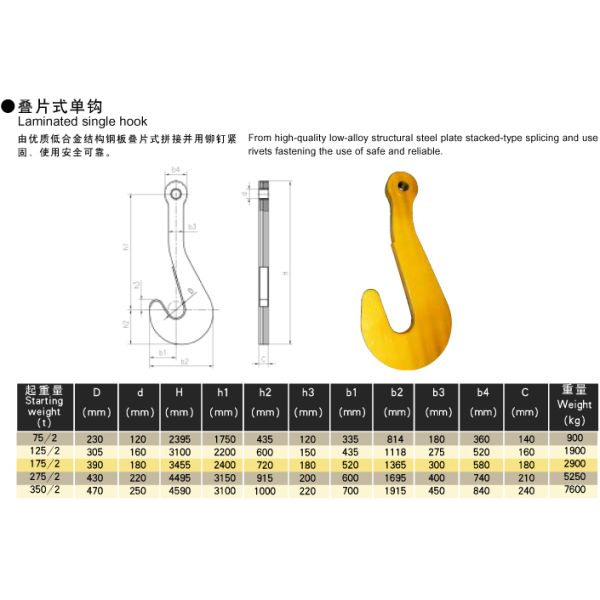

Hook Parameters

125T YZS Type Casting Bridge Cranes Four Beam Heavy Duty

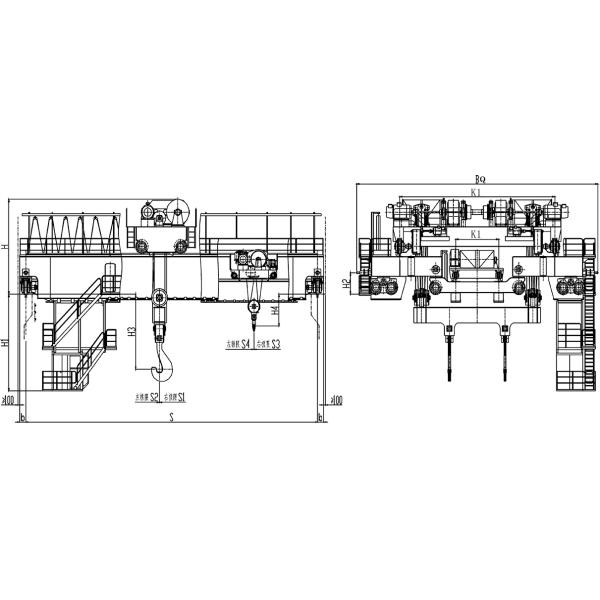

Crane Parameters

125T YZS Type Casting Bridge Cranes Four Beam Heavy Duty

lifting capacity/t 12532 14032
working class A7
span/m 19 19
lifitng height/m main hook 24 22
aux.hook 26 24
speed
(m/min)		 main hook 7.6 7.8
aux.hook 9.7 9.7
main trolley 38 36
aux.trolley 39 37.5
crane 76 73
max.wheel load/KN 505 535
steel track recommended QU120
power source 380V 50Hz 3-Ph AC

FAQ&CONTACT US
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection. 2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts? A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
