SSUC206 30mm Bearing Inserts
SSUC206 30mm Bearing Inserts
SSUC206 30mm Bearing Inserts
SSUC206 30mm Bearing Inserts
SSUC206 30mm Bearing Inserts
SSUC206 30mm Bearing Inserts
Specifications
Brand Name :
SGC
Model Number :
SSUC206
Place of Origin :
Fuzhou, China
MOQ :
50 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
45 days upon receipt of official order
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Product name :
30mm Bearing Inserts
Type :
stainless steel Insert Bearing
Bearing material :
Stainless steel
Precision rating :
ABEC-1 ABEC-3
Vibration :
Z1, Z1V1, Z2
Clearance :
C3,C2,C0
Hardness :
HRC58-62
Color :
Silver
Cage :
Stainless Steel
Shaft Dia :
30mm
Feature :
anti rust,Long life Low noise
Applications :
Food Processing, Chemical Processing, Canning,Bottling, and any anti-corrosion working situation
Certification :
ISO9001
Service :
OEM Customized Services
Sample :
Avaible
Description

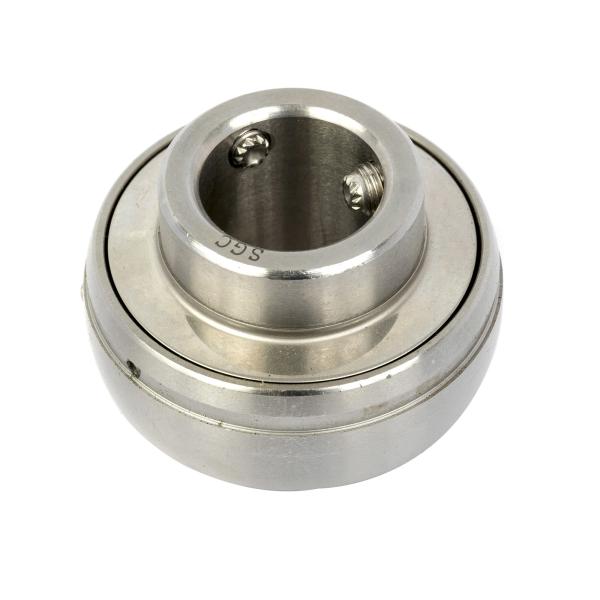

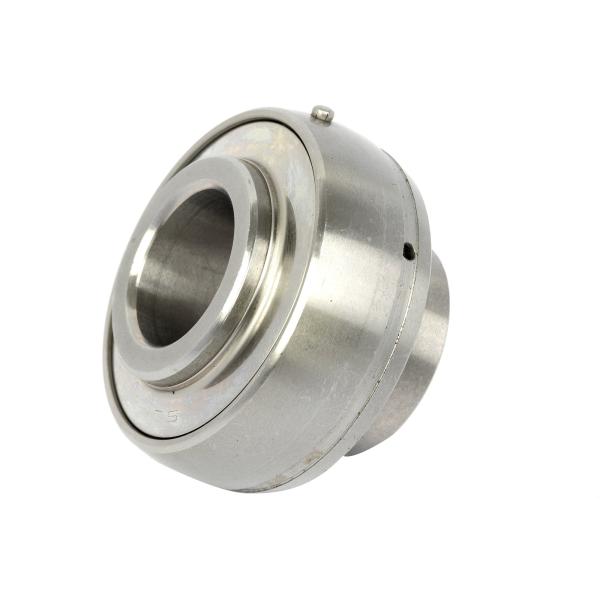

SSUC206 30mm Bearing Inserts

Set Screw Type-Metric

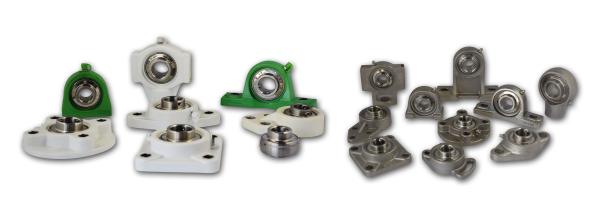

Stainless steel pillow and mounting blocks offer both lightweight and heavy-duty mounting solution. The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• 304 Stainless Steel Block
• Stainless Steel Ball Bearings Insert-Set Screw Type

Applications:

The stainless steel bearing units can operate satisfactorily under corrosion-resistance properties, widely used in Canning industry, bottling industry, pharmaceutical industry, chemical processing, foodstuff processing machinery, etc..

SSUC206 30mm Bearing Inserts


Bearing No.
Shaft Dia

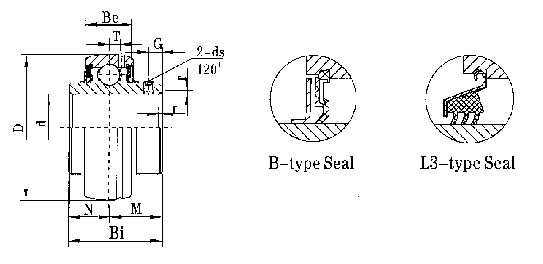

Boundary Dimensions(mm)
Basic Load Rating(kN)
Weight
Dynamic Static Kg(pc)
d D Bi Be r N M G dS T Cr Cor
　 mm in 　 　 　
SSUC201 12 　 47 31 17 1.0 12.7 18.3 4.7 M6×0.75
1/4-28UNF		 4.0 10.37 5.08 0.21
SSUC201-8 1/2 0.20
SSUC202 15 　 0.19
SSUC202-9 9/16 0.19
SSUC202-10 5/8 0.19
SSUC203 17 　 0.18
SSUC203-11 11/16 0.18
SSUC204 20 　 0.16
SSUC204-12 3/4 0.16
SSUC205 25 　 52 34.1 17 1.5 14.3 19.8 5 M6×0.75
1/4-28UNF		 4.2 11.31 6 0.19
SSUC205-13 13/16 0.23
SSUC205-14 7/8 0.22
SSUC205-15 15/16 0.20
SSUC205-16 1 0.19
SSUC206 30 　 62 38.1 19 1.5 15.9 22.2 5 M6×0.75
1/4-28UNF		 5.0 15.81 8.64 0.31
SSUC206-17 　 1-1/16 0.36
SSUC206-18 　 1-1/8 0.34
SSUC206-19 　 1-3/16 0.32
SSUC206-20 　 1-1/4 0.31
SSUC207 35 　 72 42.9 20 2.0 17.5 25.1 7 M8×1
5 /16-24UNF		 5.7 20.83 11.68 0.46
SSUC207-20 　 1-1/4 0.52
SSUC207-21 　 1-5/16 0.50
SSUC207-22 　 1-3/8 0.48
SSUC207-23 　 1-7/16 0.46
SSUC208 40 　 80 49.2 21 2.0 19 30.2 8 M8×1
5 /16-24UNF		 6.3 23.55 13.6 0.63
SSUC208-24 　 1-1/2 0.68
SSUC208-25 　 1-9/16 0.64
SSUC209 45 　 85 49.2 22 2.0 19 30.2 8 M8×1
5 /16-24UNF		 6.3 26.35 15.6 0.70
SSUC209-26 　 1-5/8 0.78
SSUC209-27 　 1-11/16 0.74
SSUC209-28 　 1-3/4 0.70
SSUC210 50 　 90 51.6 24 2.0 19 32.6 10 M10×1.25
3 /8-24UNF		 6.6 28.48 18 0.78
SSUC210-29 　 1-13/16 0.89
SSUC210-30 　 1-7/8 0.85
SSUC210-31 　 1-15/16 0.80
SSUC210-32 　 2 0.78
SSUC211 55 　 100 55.6 25 2.5 22.2 33.4 10 M10×1.25
3 /8-24UNF		 7 35.28 22.4 1.07
SSUC211-32 　 2 1.22
SSUC211-33 　 2-1/16 1.18
SSUC211-34 　 2-1/8 1.10
SSUC211-35 　 2-3/16 1.05
SSUC212 60 　 110 65.1 27 2.5 25.4 39.7 10 M10×1.25
3 /8-24UNF		 7.6 42.5 26.34 1.52
SSUC212-36 　 2-1/4 1.65
SSUC212-37 　 2-5/6 1.55
SSUC212-38 　 2-3/8 1.49
SSUC212-39 　 2-7/16 1.42
