PTFE Lined MCOM Spherical Plain Bearings And Rod Ends
PTFE Lined MCOM Spherical Plain Bearings And Rod Ends
PTFE Lined MCOM Spherical Plain Bearings And Rod Ends
PTFE Lined MCOM Spherical Plain Bearings And Rod Ends
Specifications
Brand Name :
SGC
Model Number :
MCOM Series
Place of Origin :
Fuzhou, China
MOQ :
500 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
200000PCS per month
Delivery Time :
45 days
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Product name :
Two-Piece Commercial Spherical Plain Bearing
Ball :
GCr15 Bearing Steel，Chrome Plated, Heat Treated
Precision Rate :
Precision Ground
Race :
Carbon Steel, Heat Treated
Liner :
PTFE Lined, Metal-to-Metal Optional
Sample :
Available
Packing :
As your requirement
OEM :
Accept Customized Order
Description

Radial Spherical Bearings with PTFE Liner and Chromoly Heat Treated Ball Eye Metric MCOM Series

PTFE Lined Type-Metric

• Race: Carbon Steel, Heat Treated, Hard Chrome Plated, Precision Ground
• Ball: 52100 Bearing Steel Heat-Treated, Hard Chrome Plated, Precision Ground
• Liner: PTFE Lined, Metal-to-Metal Optional

Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts. Both male and female configurations are available and offer optional lubricator fittings. Two-piece and four-piece Commercial and precision spherical bearings are offered as well. Spherical bearings are design to handle high radial loads.
The bearing's spherical outer housing minimizes friction and its a good solution to provide self lubrication.

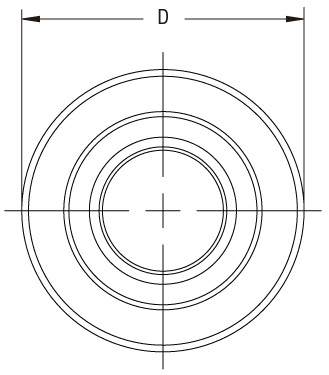

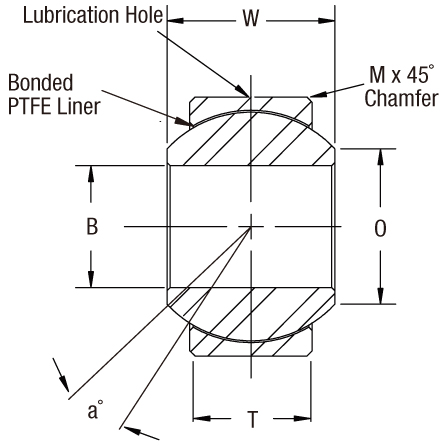

Part Number Boundary Dimensions
(mm)		 Misalign.
Angle
aº		 Radial
Static
Load
(KN)		 Approx.
Brg. Wgt.
(kg)
Metal-to-Metal PTFE Lined B
+ .065
- .013		 D
+ .0000
- .018		 T
± .13		 W
± .13		 0
Flat Dia.
Ref		 M
Cham.
Ref.		 Ball
Dia.
Ref.
MCOM5 MCOM5T 5 16 6 8 7.68 0.5 11.1 12.5 27.55 0.009
MCOM6 MCOM6T 6 18 6.75 9 8.93 0.5 12.7 12.5 35.45 0.013
MCOM8 MCOM8T 8 22 9 12 10.35 0.8 15.88 14 59.12 0.024
MCOM10 MCOM10T 10 26 10.5 14 12.88 0.8 19.05 13.5 82.74 0.04
MCOM12 MCOM12T 12 30 12 16 15.39 0.8 22.23 13 112.83 0.08
MCOM14 MCOM14T 14 34 13.5 19 16.86 1 25.4 16 141.85 0.11
MCOM16 MCOM16T 16 38 15 21 19.34 1 28.58 15 177.34 0.13
MCOM18 MCOM18T 18 42 16.5 23 21.89 1 31.75 15 216.71 0.17
MCOM20 MCOM20T 20 46 18 25 24.35 1 34.93 14.5 260.00 0.23
MCOM22 MCOM22T 22 50 20 28 25.84 1.5 38.1 15 315.22 0.28
MCOM25 MCOM25T 25 56 22 31 29.6 1.5 42.86 15 390.10 0.39
MCOM30 MCOM30T 30 66 25 37 34.81 1.5 50.8 17 525.36 0.61

PTFE Lined MCOM Spherical Plain Bearings And Rod Ends

PTFE Lined MCOM Spherical Plain Bearings And Rod EndsPTFE Lined MCOM Spherical Plain Bearings And Rod Ends
