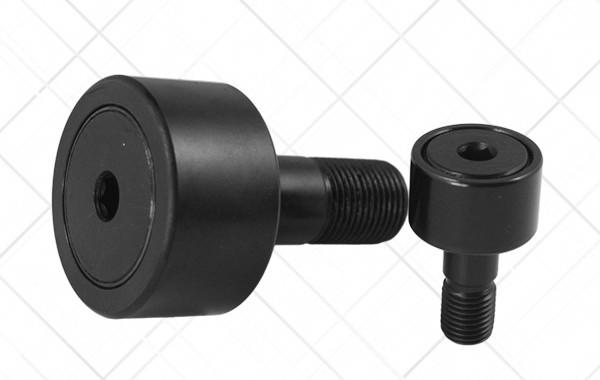

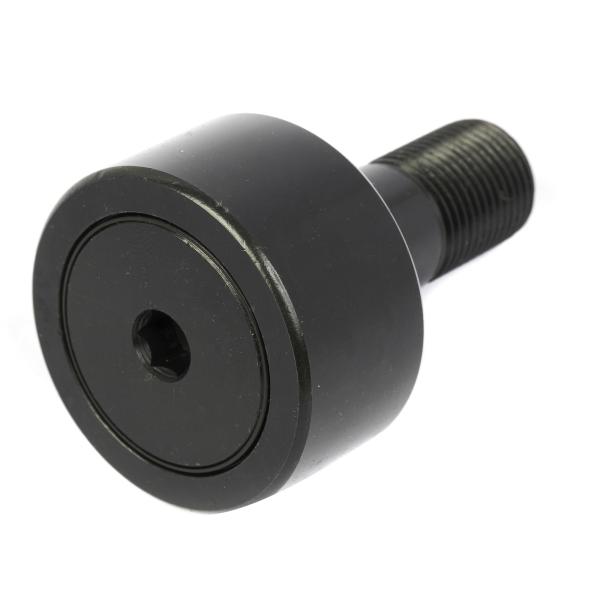

12.7mm Grease Lubrication CR Stud Track Roller
12.7mm Grease Lubrication CR Stud Track Roller
12.7mm Grease Lubrication CR Stud Track Roller
12.7mm Grease Lubrication CR Stud Track Roller
Specifications
Brand Name :
SGC
Model Number :
CR
Certification :
ISO9001
Place of Origin :
Fuzhou, China
MOQ :
50 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
10-30 days
Packaging Details :
Neutral Pack+Outer Carton+Pallet
Product Name :
Stud-Type Cam Followers
Type :
Stud-Type
Rollers :
GCr15 Chrome Steel, Hardened , Precision Ground
Races :
GCr15 Chrome Steel, Hardened , Precision Ground
Main Body :
Chromoly Hardened Steel
Cage :
Steel Cage, Nylon Cage optional
Surface Treatment :
Chromoly Heat Treated, or Black Coated Optional
Lubrication :
Grease
Hardenedness :
HRC60~65
Shaft Dia. :
12.70 mm - 57.15 mm
Packing :
1*1 Plastic Bag+Box+Outer Carton, or according to requirement
Service :
OEM Or Customized Drawings is Available
Samples :
Free
Description

Stud Type Track Roller with Black Oxide Coated Corrosion Resistance CR Series

Stud Type-Inch

Materials:

• 52100 Hardened Chrome Steel Needle Bearing

• 52100 Hardened Chrome Steel Outer Ring

• Hardened Steel Chromed Main Body

Features:

• The bearing has heavy duty radial and axial play.

• The bearing has better impact resistance, corrosion resistance, and wear resistance.
Note:

• Self-Lubrication, or with greasing nipple optional.

• Chromoly hardened treatment, or black Oxide coated optional.

• Stainless Steel is available.

Shaft Dia Bearing Number


Net

Weight
Boundary Dimensions


Basic Load

Rating


Limiting

Speed
d D Thread C B1 B G1 g1 Dynamic
Cr		 Static
Cor
Cylindrical Spherical UNF Grease
mm g inch N rpm
12.7 CR 8UU CR 8UUR 9 　 1/2. 10-32 11/32 3/8. 7/8. 1/4. 1/8. 260 220 28000
CR8-1UU CR8-1UUR 10 　 1/2. 3/8. 13/32 1 1/32 260 220 28000
15.875 CR10UU CR10UUR 19 1/4. 5/8. 1/4''-28 13/32 7/16. 1 1/16 5/16. 1/8. 370 370 21000
CR10-1UU CR10-1UUR 21 1/4. 5/8. 7/16. 15/32 1 7/32 370 370 21000
19.05 CR12UU CR12UUR 35 3/8. 3/4. 3/8''-24 1/2. 17/32 1 13/32 3/8. 3/16. 450 520 15000
22.225 CR14UU CR14UUR 46 3/8. 7/8. 490 590 14000
25.4 CR16UU CR16UUR 73 7/16. 1 7/16''-20 5/8. 21/32 1 21/32 1/2. 3/16. 900 1100 13000
28.575 CR18UU CR18UUR 88 7/16. 1 1/8 940 1180 12000
31.75 CR20UU CR20UUR 132 1/2. 1 1/4 1/2''-20 3/4. 25/32 2 1/32 5/8. 3/16. 1450 1630 11000
34.925 CR22UU CR22UUR 157 1/2. 1 3/8 1450 1630 11000
38.1 CR24UU CR24UUR 225 5/8. 1 1/2 5/8''-18 7/8. 29/32 2 13/32 3/4. 3/16. 1890 2470 8500
41.275 CR26UU CR26UUR 260 5/8. 1 5/8 1890 2470 8500
44.45 CR28UU CR28UUR 365 3/4. 1 3/4 3/4''-16 1 1 1/32 2 25/32 7/8. 3/16. 2560 3900 7000
47.625 CR30UU CR30UUR 410 3/4. 1 7/8 2560 3900 7000
50.8 CR32UU CR32UUR 615 7/8. 2 7/8''-14 1 1/4 1 9/32 3 9/32 1 3/16. 3310 6510 5500
57.15 CR36UU CR36UUR 750 7/8. 2 1/4 3310 6510 5500
