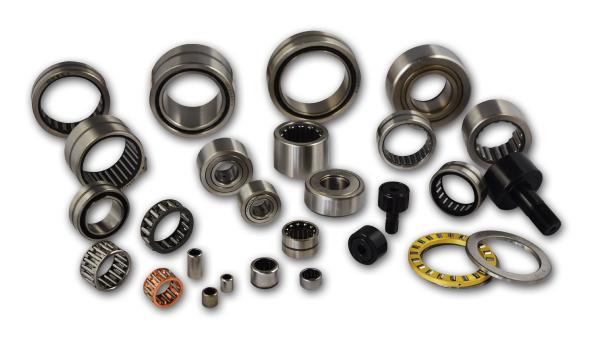

HRC60 Shell Type HK Series Needle Roller Bearings
HRC60 Shell Type HK Series Needle Roller Bearings
HRC60 Shell Type HK Series Needle Roller Bearings
HRC60 Shell Type HK Series Needle Roller Bearings
Specifications
Brand Name :
SGC
Model Number :
HK Series
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
200000PCS per month
Delivery Time :
10-30 days
Packaging Details :
Neutral Pack+Outer Carton+Pallet
Certification :
ISO9001
Product Name :
Drawn-Cup Needle Roller Bearings
Rollers :
GCr15 Chrome Steel, Hardened , Precision Ground
Case :
Hardened steel roller cup-Drawn cup
Cage :
Low carbon bearing steel cage-Cage Guided
Lubrication :
Oil, Grease Optional
Hardenedness :
HRC60~65
Shaft Dia. :
4 mm-60 mm
Packing :
Plastic Tube+Box+Outer Carton+Pallet
Service :
OEM Or Customized Drawings is Available
Samples :
Free
Description

Shell Type Needle Roller Bearings with Open End Hardened 58 Min HK/BK Series

Open and Closed End-Metric

Our shell-type needle bearings feature caged design that offer 3X the speed of uncaged designs. The needles inside the bearing allows for high speed, high load, low profile bearing design. The roller clutches are ideal for indexing, backstopping and overrunning applications.

Materials:

• 52100 Hardened Chrome Steel Needle Bearing
• Low Carbon Steel Bearing Cage

• Cage Guided
• Case-Hardened Steel Roller Cup

• Drawn Cup
Features:
• Extremely high speed;

• High load capacity;

• Low profile, lightweight caged;
• Extremely low rolling friction;

• High lubrication capacity.
NOTES:

Limiting speeds shown apply to oil lubrication. With grease, 60% of the given
values are permissible. See following section for available inner rings.


Shaft Dia		 Bearing No.
Mass
Approx.		 Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw D C Cr Dynamic Cor
Static		 Oil
mm 　 　 g mm N rpm
4 HK0408TN 37941/4 1.6 4 8 8 1540 1070 40000
BK0408TN 35941/4 1.8 4 8 8 1540 1070 40000
5 HK05*0.85*07 　 　 5 8.5 7 　 　 　
HK05*09*08 　 　 5 9 8 2200 1790 36000
HK0509 47941/5 2 5 9 9 2200 1790 36000
BK0509 45941/5 2.1 5 9 9 2200 1790 36000
6 HK0607 27941/6 1.8 6 10 7 1600 1400 30000
HK0608 37941/6 2.1 6 10 8 1830 1550 32000
BK0608 35941/6 2.2 6 10 8 1830 1550 32000
HK0609 47941/6 2.2 6 10 9 2650 2400 3000
BK0609 45941/6 2.6 6 10 9 2650 2400 3000
HK0611 　 2.3 6 10 11 1700 1500 29000
HK06*12*08 2.5 6 12 8 2230 2010 33000
7 HK0708 　 　 7 11 8 2800 2150 27000
HK0709 47941/9 2.3 7 11 9 2800 2150 27000
BK0709 45941/9 2.9 7 11 9 2800 2150 27000
HK07*12*08 　 2.2 7 12 8 3300 3220 37000
HK07*12*09 　 2.4 7 12 9 3400 3150 37000
8 HK0808 37941/8 2.7 8 12 8 2550 2400 21000
BK0808 35941/8 3 8 12 8 2550 2400 21000
HK0810 57941/8 3 8 12 10 3700 3450 21000
BK0810 88941/8 3.4 8 12 10 3700 3450 21000
HK08*14*10 27942/8 5.35 8 14 10 3800 3950 25000
BK08*14*10 25942/8 5.8 8 14 10 3800 3950 25000
HK08*14*12 37942/8 6.6 8 14 12 4100 4320 25000
9 HK0908 37941/9 3 9 13 8 3650 4050 25000
BK0908 35941/9 3.4 9 13 8 3650 4050 25000
HK0910 57941/9 4 9 13 10 4050 4250 25000
BK0910 55941/9 4.3 9 13 10 4050 4250 25000
HK0911 　 4.1 9 13 11 4300 4700 25000
HK0912 67941/9 4.6 9 13 12 5000 6000 25000
BK0912 65941/9 4.9 9 13 12 5000 6000 25000
HK09*15*10 27942/9 5.6 9 15 10 5300 6300 25000
10 HK10*13*08 　 3.5 10 13 8 4100 4800 20000
HK1010 57941/10 4.1 10 14 10 3900 4800 19000
BK1010 55941/10 4.3 10 14 10 3900 4800 19000
HK1012 67941/10 4.8 10 14 12 5000 6300 19000
BK1012 65941/10 5 10 14 12 5000 6300 19000
HK1015 　 6 10 14 15 6700 7800 19000
BK1015 　 6.2 10 14 15 6700 7800 19000
HK10*15*15 644900 6.5 10 15 15 6800 8800 18000
HK10*16*10 　 6.5 10 16 10 6800 8800 18000
BK10*16*10 　 6.8 10 16 10 6800 8800 18000
HK10*16*12 DB1012 7.5 10 16 12 6800 8800 18000
HK10*16*15 Oct-42 11 10 16 15 6800 8800 18000
HK10*16*15 　 11.5 10 17 15 7200 8000 19000
HK10*16*12 　 8.5 10 18 12 7200 8000 19000
12 HK1208 37941/12 3.3 12 16 8 7200 8000 19000
HK1210 57941/12 4.6 12 16 10 4150 5800 19000
BK1210 55941/12 5.2 12 16 10 4150 5800 19000
HK1212 67941/12 5.6 12 16 12 3800 5100 15000
BK1212 65941/12 6.2 12 16 12 3800 5100 15000
HK12*17*12 Dec-41 7.5 12 17 12 5100 7000 15000
HK12*17*15 Dec-42 9.5 12 17 15 5100 7000 15000
HK12*17*18 Dec-43 11 12 17 18 5100 700 15000
HK12*18*12 37942/12 9.1 12 18 12 5500 6300 17000
BK12*18*12 35942/12K 10.3 12 18 12 5500 6300 17000
HK12*18*14 67942/12 10.6 12 18 14 6500 6300 15000
HK12*19*12 　 10 12 19 12 6800 7400 15000
13 HK1311 　 8.5 13 19 11 6300 6300 14000
HK1312 　 8.9 13 19 12 6200 7100 17000
BK1312 　 11.2 13 19 12 6200 7100 17000
13.5 HK13.5*19*12 　 　 13.5 19 12 　 　 16000
HK13.5*20*12 7941/13.5 10.8 13.5 20 12 6250 7590 16000
14 HK1410 27941/14 8.3 14 20 10 6700 7000 16000
BK1410 35941/14 12.1 14 20 10 6700 7000 16000
HK1412 37941/14 10.5 14 20 12 6800 7500 16000
HK1416 57941/14 13.9 14 20 16 7300 9000 14000
HK1418 　 　 14 20 　 　 　 14000
15 HK15*20*12 7941/15 8.4 15 20 12 5800 6000 14000
HK15*20*16 7942/15 11.4 15 20 16 6000 6200 14000
HK15*20*20 7943/15 13.8 15 20 20 6100 6400 14000
HK1512 37941/15 11.1 15 21 12 7000 8400 14000
BK1512 35941/15 12.7 15 21 12 7000 8400 14000
HK1514 47941/15 12.7 15 21 14 8500 10400 13000
HK1515 　 14.2 15 21 15 9100 11400 13000
BK1515 　 　 15 21 15 9800 11400 14000
TA1515 　 　 15 22 15 　 11400 　
TA1515Z 　 　 15 22 15 　 11400 　
HK1516 57941/15 15 15 21 16 9800 11400 14000
BK1516 55941/15 16.5 15 21 16 9800 11400 14000
HK1522 SZ-439 20.4 15 21 22 10400 16500 14000
BK1522 　 22 15 21 22 10400 16500 14000
HK15*22*12 7948/15 12.5 15 22 21 14300 18400 13000
HK15*22*12.5 7948/15K 13.5 15 22 12.5 14300 18400 13000
16 HK16*21*0.6 　 5.5 16 21 6 4200 5300 12000
HK16*21*09 　 7.5 16 21 9 4400 5600 12000
HK1612 37941/16 11.7 16 22 12 7100 9200 14000
BK1612 35941/16 13.8 16 22 12 7100 9200 14000
HK1614 47941/16 14.4 16 22 14 8800 9900 12000
HK1616 57941/16 15.8 16 22 16 10100 14300 14000
BK1616 55941/16 17.6 16 22 16 10100 14300 14000
HK1617 SZ-435 18 16 22 17 12900 17200 12000
HK1622 87941/16 21.7 16 22 22 11100 17400 14000
BK1622 85941/16 23.4 16 22 22 11100 17400 14000
17 HK17*21.5*15 17BTM-15 10 17 21.5 15 6300 8600 11000
HK1712 37941/17 12.2 17 23 12 6900 9300 13000
BK1712 35941/17 14.5 17 23 12 6900 9300 136000
HK1714 7941/17 14 17 23 14 6800 10200 10000
HK1716 57941/17 15.9 17 23 16 8500 10500 10000
HK1718 7942/17 19 17 23 18 9500 10600 10000
HK1722 7943/17 17 17 23 22 　 　 　
HK17*24*15 　 17 17 24 15 11200 12800 10000
HK17*24*14 37942/17K 17.7 17 25 14 13100 14700 10000
HK17*25*15.5 　 20 17 25 15.5 9320 10400 10000
HK17*25*18 57942/17K 23.5 17 25 18 9500 10600 11000
18 HK1812 37941/18 13.1 18 24 12 7100 9900 12000
BK1812 35941/18 14.9 18 24 12 7100 9900 12000
HK1816 57941/18 17.5 18 24 16 106500 15300 12000
BK1816 55941/18 19.9 18 24 16 10600 15300 12000
HK18*24*20 　 18 18 24 20 　 　 　
19 HK19*27*16 TA1916 23 19 27 16 8100 9500 10500
20 HK2010 27941/20 11.8 20 26 10 5900 7200 10000
BK2010 25941/20 14 20 26 10 5900 7200 10000
HK2011 　 12 20 26 11 7500 9200 9000
HK2012 37941/20 14.1 20 26 12 7600 10100 10000
BK2012 35941/20 16.7 20 26 12 7600 10100 10000
HK2014 47941/20 15.7 20 26 14 9700 18100 9000
HK2016 57941/20 19.3 20 26 16 11700 29100 10000
BK2016 55941/20 22.3 20 26 16 11700 29100 10000
HK2018 67941/20 23.3 20 26 18 7900 12800 9000
HK2020 7942/20 14.1 20 26 20 13700 24000 10000
BK2020 75941/20 27.1 20 26 20 13700 24000 10000
HK2025 7943/20 28 20 26 25 9100 14800 9900
HK2030 　 34.7 20 26 30 21800 40000 10100
BK2030 　 37.4 20 26 30 21800 40000 10100
HK20*27*18 　 78 20 27 18 26000 47200 9900
HK20*27*20 　 82 20 27 20 26300 47800 9900
HK20*27*30 　 94 20 27 30 28500 48800 9900
HK20*28*16 47942/20 28.5 20 28 16 29600 49800 9900
HK20*29*18 　 41 20 29 18 30900 54600 9900
22 HK22*28*7.5TN 　 8.8 22 28 7.5 5200 7000 10010
HK2210 27941/22 12.3 22 28 10 7200 9500 10010
HK2212 37941/22 15 22 28 12 8100 10400 10010
BK2212 35941/22 18.1 22 28 12 8100 10400 10010
HK2216 57941/22 20.9 22 28 16 11400 18100 10010
BK2216 55941/22 24.3 22 28 16 11400 18100 10010
HK2220 77941/22 26.2 22 28 20 14500 25000 10010
BK2220 75941/22 29.9 22 28 20 14500
