Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Pingsheng
Condition :
New
Weight (KG) :
150
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Warranty :
1 Year
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Applicable Stator Thickness :
2mm-20mm
Applicable Motor Poles :
4 poles
Applicable Stator Outer Diameter :
12mm-42mm
Wire Cutting Method :
Cut off
Number Of Stations :
2 stations
Number Of Control Axes :
3-axis control
Flying Fork Speed :
Max5000rpm/min
Source pressure :
0.5-0.7 Mpa
Input Power :
Single-phase AC220V±10% 50Hz
Configuration Characteristics :
Suitable for wiring more precise stator
Price :
$5,999.00 - $6,499.00/sets
MOQ :
1
Description
Product Overview
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Product Paramenters
Model
PS-W201
PS-W201H
Configuration
Simple type
Standard type
Configuration Characteristics
Suitable for wire winding of 4-pole stators
Added wire guards,more advantages in winding Multi-pole fine wire stator
Applicable Wire Diameter
Single 0.05-0.3mm
Single 0.05-0.3mm
Applicable Stator Thickness
2mm-20mm
2mm-20mm
Applicable Motor Poles
4 poles
4 poles-12 poles
Applicable Stator Outer Diameter
φ12-φ42mm
φ12-φ55mm
Wire Cutting Method
Cut off
Cut off
Number Of Stations
2 stations
2 stations
Number Of Control Axes
3-axis control
3-axis control
Flying Fork Speed
Max5000rpm
Max5000rpm
Winding Accuracy
0.1°
0.1°
Wire Arrangement Accuracy
0.01mm
0.01mm
Pole Change Accuracy
0.1°
0.1°
Input Power
Single-phase AC220V±10% 50Hz
Single-phase AC220V±10% 50Hz
Rated Power
1.5KW
1.5KW
Overall Dimension
1000(L) x 520(W) x 1300(H)mm
1000(L) x 520(W) x 1300(H)mm
Weight
About 150 kg
About 150 kg
Application
Suitable for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Suitable for high-quality winding of various micro-motors such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Efficiency Reference
Based on 4-pole stator with outer diameter φ16.8mm, winding wire diameter φ0.08mm, and 160T per pole, the efficiency is about
300pcs/h.
Take 12-pole stator with outer diameter φ48mm, wire diameter φ0.5mm, 25T per pole for example, the efficiency is about 70pcs/h.
Products Description
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure

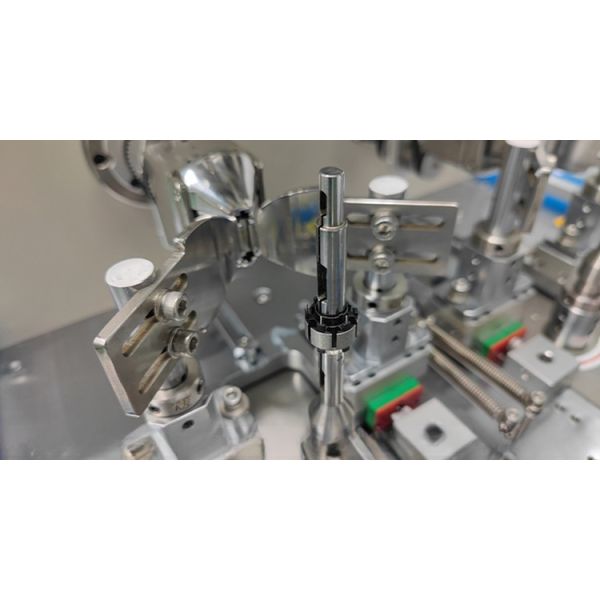

Two-station Fine Wire Winding Machine PS-W201

1.The main structure of the equipment adopts one-piece modular casting,high strength and stability. 2.All the electronic control and mechanical components of the equipment adopt the first-line mainstream brands, the winding is more flat. 3.The mould rod adopts unique self-locking technology, easy to take and put the stator. 4.The fixture adopts modular design, can be quickly replaced. 5.Aluminium alloy safety protection cover is adopted, which is safe, simple and beautiful. 6.Suitable for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Wide range of applications
Pingsheng winding machines are widely used for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Company Profile
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure


Shenzhen Pingsheng Automation Equipment Co., Ltd., located in Shenzhen city, Guangdong Province, China, is a national high-tech enterprise integrating R&D, manufacturing, sales, and service of electromechanical production equipment. Our core business lies in providing automatic complete production line support equipment for the winding product production field, as well as R&D and manufacture of other non-standard automation equipment. Our main products include cooling fan winding machines, AC fan winding machines, DC brushless winding machines, and stator internal winding machines,and so on. We boast a technically solid, experienced, and innovative R&D and management team. Introducing advanced technologies from Japan and Western countries, and combining them with our own technical advantages, we have developed unique automated equipment. We have exceptional professional capabilities in the field of electromechanical structure as well as program development. The assembly, installation, and debugging of circuits and machines are all independently completed by our company. With 15 years of industry experience and advanced technology, we will continue to push the development of the industry and create greater value for our customers. We sincerely look forward to working together with old and new customers domestically and internationally, to co-create a promising future.
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Exhibition
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Certifications
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Customer Feedback
With 15 years of industry experience and advanced technology, we have gained numbers of repeat customers due to their outstanding stability, efficiency and safety, moreover, they occupy 60% of the local market!
Product packaging
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Fine Wire DC Brushless Motor Stator Winding Machine with 0.5-0.7 Mpa Source Pressure
Looking forward to cooperating with you!
As one of the Jinpin Cheng Enterpris at alibaba.com we are sure you will like our quality so much.
If you have any questions or need more details.please contact me.I'm always ready to help!
FAQ
Q1: How can I get the price? A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote. Q2:Can I buy samples placing orders? A2:Yes.Please feel free to contact us. Q3:What is your lead time? A3:It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity. Q4:What is your payment term? A4:T/T,Western Union,MoneyGram,and Paypal.This is negotiable. Q5:What is the shipping method? A5:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). -Please confirm with us before placing orders. Q6：Is there an after-sale guarantee? A6：-We always believes that the quality is guaranteed and the after-sales service is free of worries.We provide 24H online after-sales service, due to geographical differences, there may be a certain time difference.
