Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Specifications
Place of Origin :
Guangdong, China
Brand Name :
PingSheng
Price :
$9,800.00 - $11,850.00/sets
MOQ :
1
Condition :
New
Max. Load (KG) :
10 KG
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Coil Type :
Copper wire
Length of Axis (mm) :
1 mm
Center Height (mm) :
2 mm
Max.Transformer Capacity(kVA) :
5 kVA
CNC or Not :
CNC
Motor Power (kw) :
2
Weight (KG) :
250
Dimension(L*W*H) :
1200(L) x 600(W) x 1420(H)mm
Wire Diameter Range (mm) :
0.05 - 0.7 mm
Warranty :
1 Year
Key Selling Points :
High Productivity
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Applicable Stator Thickness :
2mm-30mm
Applicable Motor Poles :
2-4 poles
Applicable Stator Outer Diameter :
12-54mm
Wire Cutting Method :
Cut off
Number Of Stations :
2 stations
Number Of Control Axes :
3-axis control
Flying Fork Speed :
Max4500rpm/min
Source pressure :
0.5-0.7 Mpa
Input Power :
Single-phase AC220V±10% 50Hz
Configuration Characteristics :
Mold head fixing device better for thick wire and multi-stage stators
Description
Product Overview
Professional Cooper Wire Winding Machine For Winding High Productivity
Product Paramenters
Model
PS-W205
PS-W205M
PS-W205D
Configuration
Simple type
Standard type
Large Type
Configuration Characteristics
Suitable for wire winding of 4-pole stators
Added mold head fixing device,more advantages in winding thick wire and multi-stage stators
Added mold head fixing device and larger spacing between shafts,more advantages in wider range of stator outer diameter
Applicable Wire Diameter
Single 0.05-0.45mm
Single 0.05-0.7mm
Single 0.05-0.7mm
Applicable Stator Thickness
2mm-30mm
2mm-50mm
2mm-50mm
Applicable Motor Poles
2-4 poles
2-32 poles
2 poles-32 poles
Applicable Stator Outer Diameter
φ12-φ54mm
φ12-φ84mm
φ12-φ120mm
Wire Cutting Method
Cut off
Cut off
Cut off
Number Of Stations
2 stations
2 stations
2 stations
Number Of Control Axes
3-axis control
3-axis control
3-axis control
Flying Fork Speed
Max4500rpm
Max1000rpm
Max 1000rpm
Winding Accuracy
0.1°
0.1°
0.1°
Wire Arrangement Accuracy
0.01mm
0.01mm
0.01mm
Pole Change Accuracy
0.1°
0.1°
0.1°
Input Power
Single-phase AC220V±10% 50Hz
Single-phase AC220V±10% 50Hz
Single-phase AC220V±10% 50Hz
Rated Power
2KW
2KW
2KW
Overall Dimension
1200(L) x 600(W) x 1420(H)mm
1200(L) x 600(W) x 1420(H)mm
1200(L) x 600(W) x 1420(H)mm
Weight
About 250 kg
About 250 kg
About 250 kg
Application
Suitable for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Suitable for high-quality winding of various micro-motors such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Efficiency Reference
Based on 12-pole stator with outer diameter φ48mm, winding wire diameter φ0.5mm, and 25 turns per pole, the efficiency is about
70pcs/h.
Take 12-pole stator with outer diameter φ48mm, wire diameter φ0.5mm, 25T per pole for example, the efficiency is about 70pcs/h.
Products Description
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity

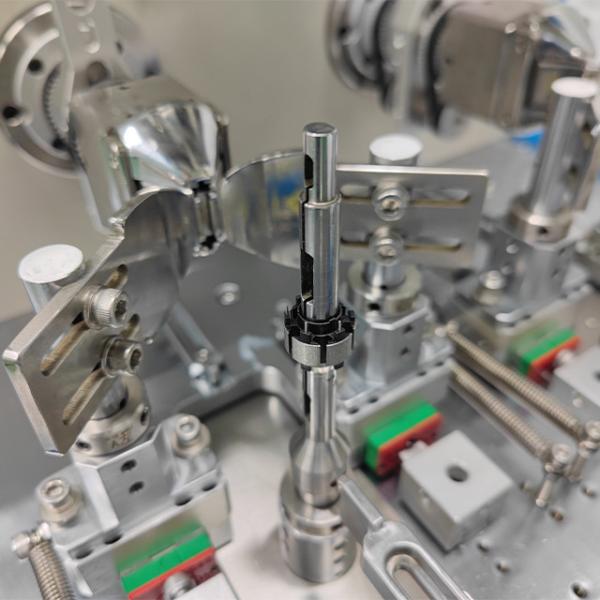

Two-Station Coarse Wire Winding Machine PS-W205M
1.The main structure of the equipment adopts one-piece modular casting,high strength and stability. 2.All the electronic control and mechanical components of the equipment adopt the first-line mainstream brands, the winding is more flat. 3.The mould rod adopts unique self-locking technology, easy to take and put the stator. 4.The fixture adopts modular design, can be quickly replaced. 5.Aluminium alloy safety protection cover is adopted, which is safe, simple and beautiful. 6.Ssuitable for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Wide range of applications
Pingsheng winding machines are widely used for high-quality winding of various micro-motors, such as cooling fans, brushless DC motors, magnetic motor stators, etc.
Company Profile
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity

Shenzhen Pingsheng Automation Equipment Co., Ltd., located in Shenzhen city, Guangdong Province, China, is a national high-tech enterprise integrating R&D, manufacturing, sales, and service of electromechanical production equipment. Our core business lies in providing automatic complete production line support equipment for the winding product production field, as well as R&D and manufacture of other non-standard automation equipment. Our main products include cooling fan winding machines, AC fan winding machines, DC brushless winding machines, and stator internal winding machines,and so on. We boast a technically solid, experienced, and innovative R&D and management team. Introducing advanced technologies from Japan and Western countries, and combining them with our own technical advantages, we have developed unique automated equipment. We have exceptional professional capabilities in the field of electromechanical structure as well as program development. The assembly, installation, and debugging of circuits and machines are all independently completed by our company. With 15 years of industry experience and advanced technology, we will continue to push the development of the industry and create greater value for our customers. We sincerely look forward to working together with old and new customers domestically and internationally, to co-create a promising future.
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Exhibition
Professional Cooper Wire Winding Machine For Winding High Productivity
Certifications
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Customer Feedback
With 15 years of industry experience and advanced technology, we have gained numbers of repeat customers due to their outstanding stability, efficiency and safety, moreover, they occupy 60% of the local market!
Product packaging
Professional Cooper Wire Winding Machine For Winding High Productivity
Professional Cooper Wire Winding Machine For Winding High Productivity
Looking forward to cooperating with you!
As one of the Jinpin Cheng Enterpris at alibaba.com we are sure you will like our quality so much.
If you have any questions or need more details.please contact me.I'm always ready to help!
FAQ
Q1: How can I get the price? A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote. Q2:Can I buy samples placing orders? A2:Yes.Please feel free to contact us. Q3:What is your lead time? A3:It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity. Q4:What is your payment term? A4:T/T,Western Union,MoneyGram,and Paypal.This is negotiable. Q5:What is the shipping method? A5:It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). -Please confirm with us before placing orders. Q6:Is there an after-sale guarantee? A6:-We always believes that the quality is guaranteed and the after-sales service is free of worries.We provide 24H online after-sales service, due to geographical differences, there may be a certain time difference.
