Specifications
Brand Name :
WIND AUTOMATION
Model Number :
WIND-MTS-80
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
35 working days
Packaging Details :
Wooden Pallet
Condition :
New
Test Product :
BLDC Garden Sweeper Motor
Working station :
Double Station
Testing item content display :
Loading, Un-loading tester
Test result :
N·m Loading Power,Current,Voltage,RPM
After Sales Service :
Engineer available for oversea service
Description

Humanoid Robots Testing Equipment Tester

China local market, the humanoid robot is popular and humanoid robot actuators require extremely high torque density.
It's related motor is special and most of the humanoid robot motor is designed and manufactured by servo motor plants,

How to Check Quality of Humanoid Robots Maximizing Torque Density With Tester

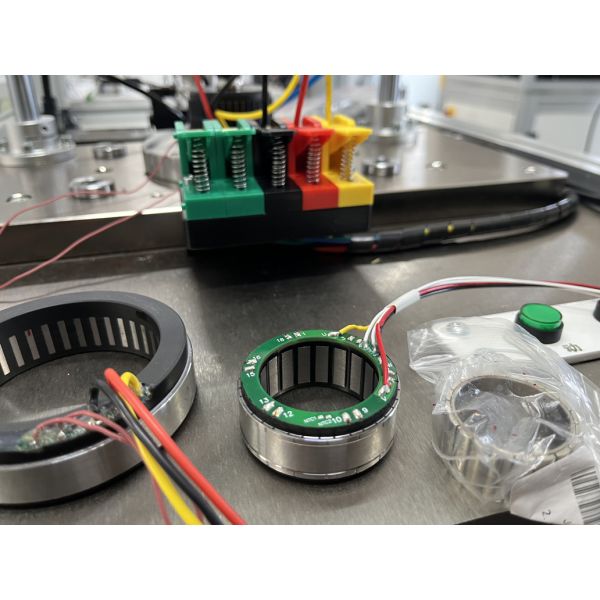

Ring stators have concentrated windings and a set of coils around them.

The wiring and the circuit board attached to the second one probably handle the phase connections or encoder signals.

If you’re integrating them into a humanoid or other precise actuator, these ring motors would let you achieve a compact but powerful joint

Typically, you'd test these ring motors in a few stages.

First, you'd measure the electrical continuity of the windings and confirm that all phases are correct.

Then, you'd run a no-load rotation test—check smoothness, detect any vibration, and measure back EMF.

After that, you'd typically load it with a small torque and measure how much current it draws and how quickly it responds.

If you have encoders, you’d also check for precise position feedback.

Doing all this ensures the motor performs as expected before you integrate it

How to Check Quality of Humanoid Robots Maximizing Torque Density With Tester

(1) Competitive Advantages

No-load rotation test—check smoothness, detect any vibration, and measure back EMF.



(2) Testing Machine

How to Check Quality of Humanoid Robots Maximizing Torque Density With Tester

(3) Equipment environment


Power:AC220V+/-10%, 50Hz


Air pressure: 0.4~0.6MPa


Temperature:0~45℃

HS Code:9030390000
