DC motor Stator Testing Machine Quality Analysis WIND-DTS

DC Motor Stator Testing Machine With Pneumatic Fixture

1. Advantage

1) Fast clamping fixture can be fitted for 3 terminal wires

2) Pneumatic fixutre is widely used to test 3 terminal wires or 6 end wires

2.Testing item: all the testing items can be conducted alone or together.

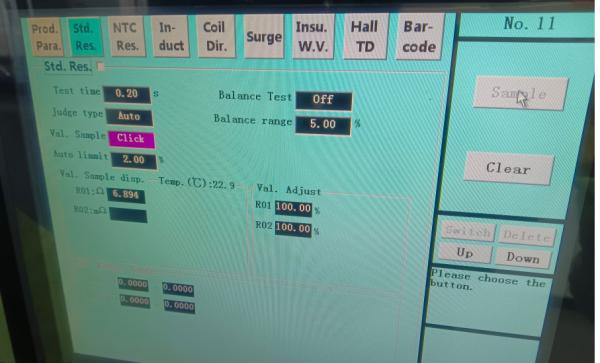

1)DC resistance test

Testing range:0.01W - 1000W

Testing loop:6 loop(scalable)

Tolerance:±0.5 %

Testing method:Four points, with auto ambient temperature correction function

2)Inductance test(including 3 phase balance test)

Testing range:10mH – 500mH

Testing loop:6 loop(scalable)

Tolerance: ±2.5%

Testing method:Four points

3)Turn to turn insulation

Pulse high voltage: 100V-3000V (100V / step)

Pulse peak: 0.5msec

Sampling frequency: 1-40 MHZ

Testing loop:6 loop(scalable)

Tolerance: ±2.5%

Judging method: area difference judgment (sensitive to inductance and energy loss)

Standard waveform is White,OK waveform is Green, NG waveform is Red

4)Insulation resistance

Voltage:DC500V /1000V

Testing time:1-10s(adjustable)

Judging range:1-1000 MW

Tolerance: ±2.5%

5)Interphase insulation

Voltage:DC500V /1000V

Testing time:1-10s(adjustable)

Judging range:1-1000 MW

Tolerance: ±2.5%

6)Interphase hipot

Voltage:AC100-3000V (100V/step)

Testing time:1-10s(adjustable)

Judging range:0.1 mA -- 20 mA

Tolerance: ±2.5%

7)Hipot(with arc detection)

Voltage:AC100-3000V (100V/step)

Testing time:1-10s(adjustable)

Judging range:0.1 mA -- 20 mA

Tolerance: ±2.5%

8)Balance of resistance

Test method: DC resistance sampling

Testing time:0.1s

Judging method:percentage method adopted to judge the difference of DC resistance between windings.

3.Testing time

Item DC resistance Balance of resistance Turn to turn short circuit Insulation resistance Hipot Interphase insulation Interphase hipot
Parameter 0.05s/loop 0.1s/time 1 impulse/ time 1s/time 1s/time 1s/time 1s/time
Time 1.5s/6 loop 0.1s 1s 1s 1s 1s 1s
