Fully Automatic Armature Winding Machine Rotor Coil Winder With Electronical Tensioner

WIND-ST-TD2B

The tesnioner used in This armature Winder is electronically controlled.

Most tensioner used in winder, One is a magnetic powder tensioner, which has a small application range.

One is a hysteresis tensioner, which has a wide application range.

Wind Autotion use hysteresis tensioners.

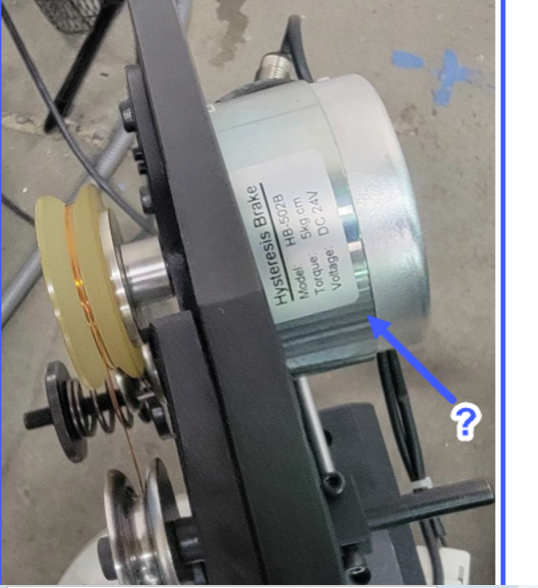

The photo shows that the maximum torque is 5 KG and the maximum voltage is 24V.

Application:

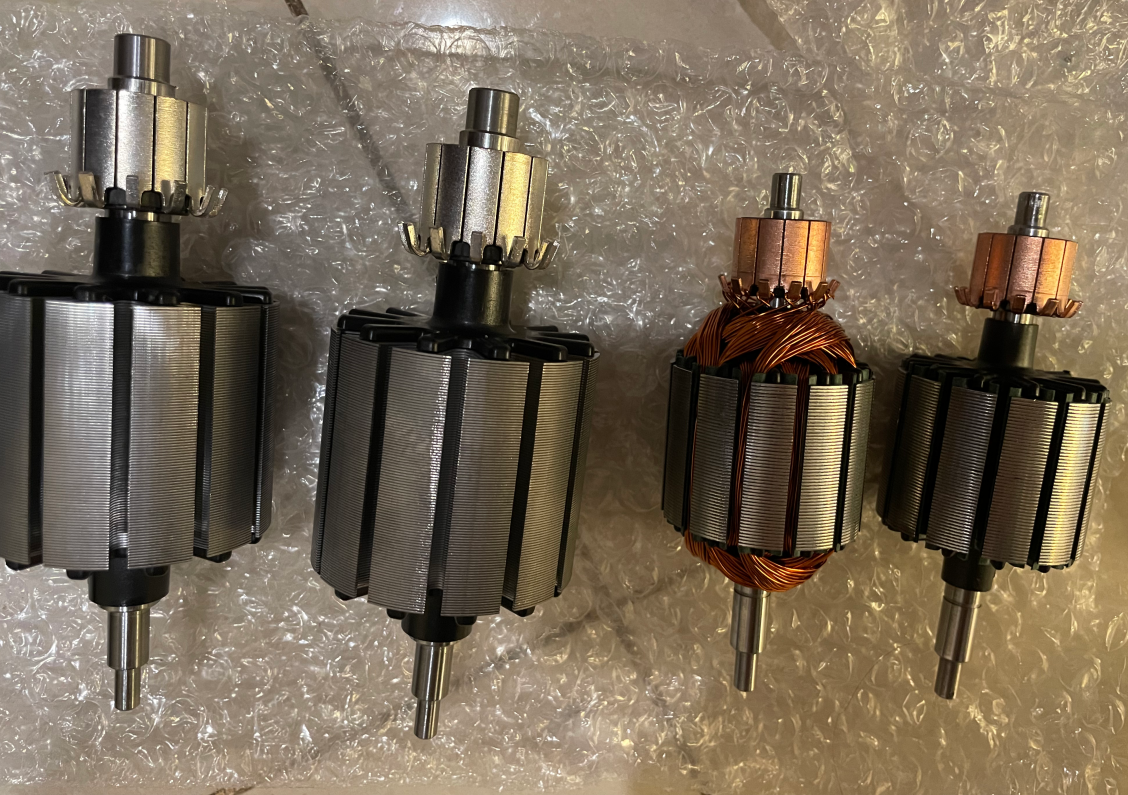

Slotted type commutator armature winding

The WIND-ST-TD2B full automatic rotor winding machine is a double fly winding machine specially

designed for producing slot type commutator rotor, which is suitable for high-speed winding of medium

and coarse diameter rotor. The machine adopts automatic clipping mechanism and auxiliary wire insertion

method, which greatly improves the winding speed of grooved rotor. This machine is widely used for

winding of DC and series motor rotor. The suitable winding diameter 0.25mm~1.2mm. widely use in thin

wire line slots rotor and large diameter slotted type commutator rotor, which is suitable for the automatic

winding of odd and even numbered slots grooves.

Competitive Advantages:

1. For armature with thin copper wire,

Machine had good feedback of winding AWG30(0.25mm) copper wire diameter armature

2. For armature with thick wire, machine WIND-ST-TD2B can handle AWG16 (1.35mm) armature

3. No need to work with special designated commutator slotting machine

4. 98% yield rate above assured when the slot commutator quality is good

5. Till now it is the best machine in China for winding slot type armature

Parameter:

Power supply: 220V, 50HZ

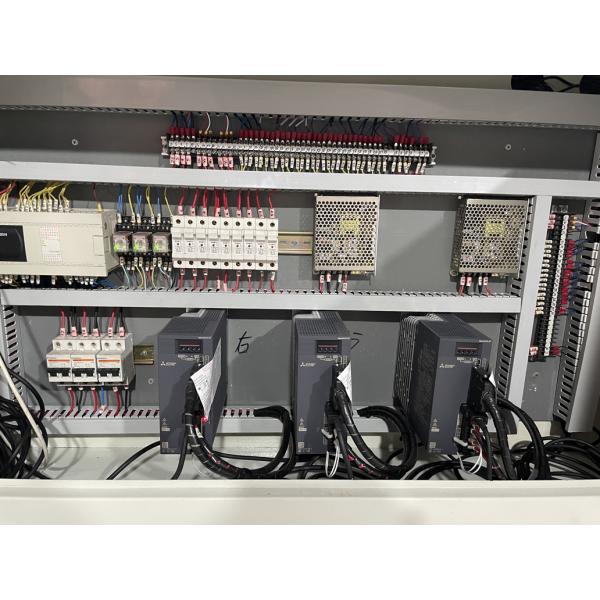

Motor: Winding Mitsubshi 1000W servo motor

Arraying Mitsubshi 400W servo motor

Indexing Mitsubshi 400W servo motor

Wire diameter:0.45mm~1.25mm

Unit OD:70~250mm

Spindle: 0~1500rpm

Turns No.0-999

Air pressure: 0.5-0.7Mpa

Pneumatic: Airtac

Instruction for Use:

Manually put on armature and press 'Start' botton, machine will do clamping, hooking ,windinging, indexing

automatically and repeatly until one armature was fully wound.

WIND-ST-TD2B winding machine is to do winding for the armature with riser type commutator.

It has double flyer to make the winding and with auto wire cutting, clamping structure, assisting wire

inserting way to upgrade the winding speed.

Ask and Answer:

Ask:

Are they flier-type winding machine? I would like to understand how your winding machine design can

overcome the problem of traditional winding machine that has been designed for 2 pole motor.

The winding coil in a 4 pole lamination has a smaller angle than a 2 pole lamination across the lamination

slot. Therefore, 4 pole winding machine use a smaller angle wire guiding head to guide the magnet wire to

slide into a 4-pole lamination slot. So, the wire will seat on the side of the slot instead of seating on the

bottom of the slot. For a 2 pole lamination, the guiding head is wider and the wire can be guided to slide

into the bottom of the slot.

If you use a flier type winding machine on a 4 pole or 8 pole armature, do you have any method to guide

the wire to the bottom of the slot first, then go up to the slot opening - tidy and neat.

Answer:

Please click below picture to view video
