Specifications
Brand Name :
WIND AUTOMATION
Model Number :
WIND-DC
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
60 working days
Packaging Details :
Two pallets one for welding machine , one for water cooling device 662KGS 1040mm*1040mm*1960mm, 740mm*740mm*1270mm
Welding Application :
Integrated Starter Generator assembly
Welding Type :
Brushless Stator Resistance Welding Machine
Motor Type :
drone motor, fan motor,BLDC Motor
Welding place :
Stator Led terminal wire welding
Fusing type :
The welding operation and setting is easy for operator
PLC :
Mitsubishi
Gross weight :
800KGS including package pallet
4 Axis servo device :
Welding spindle,Indexing spindle, Feeding shaft and Lifing shaft with Mitsubishi servo motor
Description

How to Terminal Welding Joint Brushless Motor Stator Lead Wire Machine

https://youtu.be/bdMDBaekGwI?si=bX7Hgp_bPXfTgCbJ

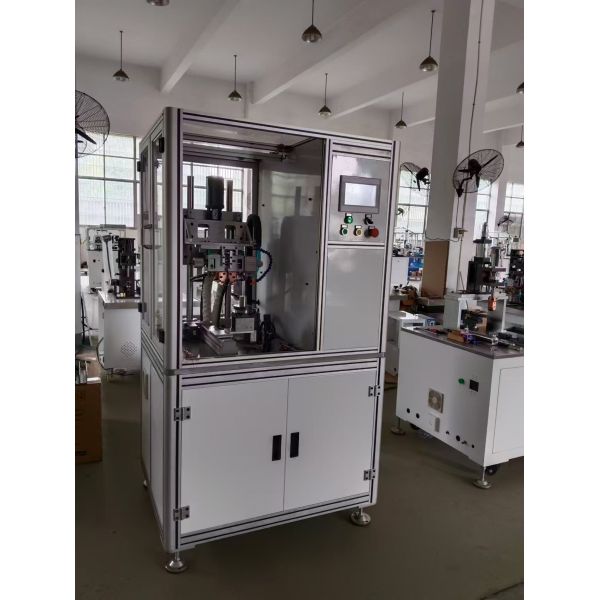

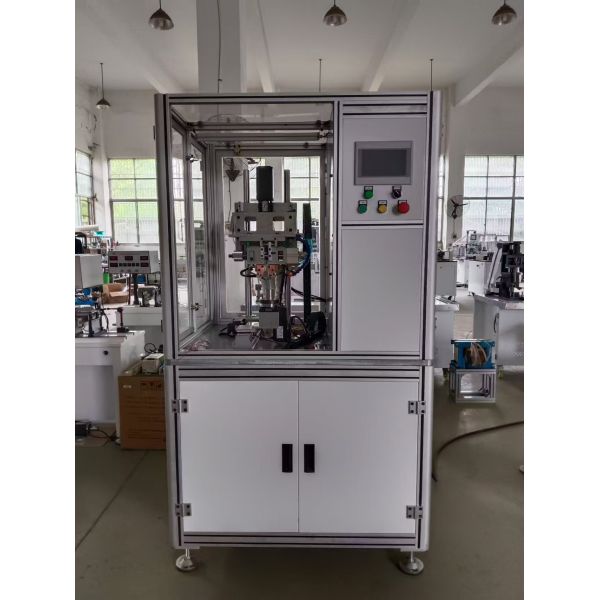

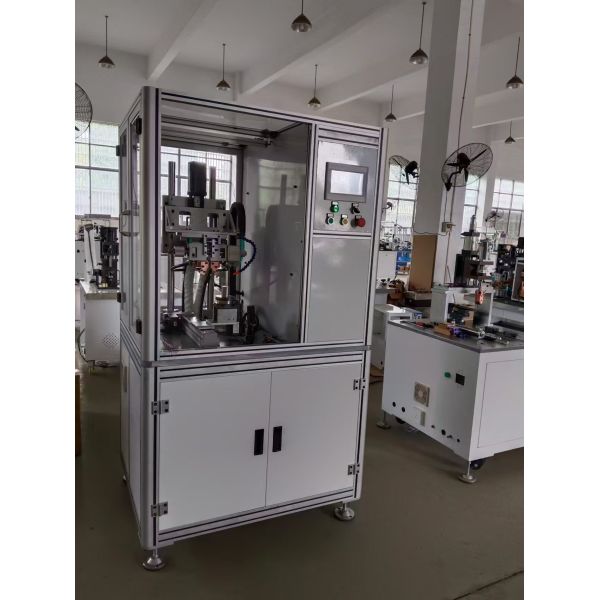

The BLDC Stator Welding Machine is used for welding enameled copper wires to stator terminals of brushless DC motors,

ensuring reliable electrical connection, high welding consistency, and efficient automated production.

(1) Application:

Suitable for the production of:

  • Cooling fan motors
  • Drone motors
  • Automotive BLDC motors
  • Power tool motors
  • Household appliance motors

(2) Wire terminal Welding machine Advantages:

  • Automatic stator positioning and clamping
  • High welding accuracy
  • Stable and consistent welding quality
  • Low contact resistance
  • High production efficiency
  • Easy parameter adjustment through touch screen control
  • Suitable for different BLDC stator specifications


(3) Wire terminal Welding machine Q&A:

(4) Wire terminal Welding fusing machine Principle:

The machine positions the stator accurately and welds the enameled wire to the terminal through controlled heat and pressure (or other welding methods such as resistance welding / laser welding, depending on configuration).

This process removes the enamel insulation and creates a strong, reliable electrical connection.

Please click below photo to view video
