Specifications
Brand Name :
WIND AUTOMATION
Model Number :
WIND-BLDC-2
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T
Stator Stack :
Straight stack not Skew stack
Certificate :
CE
Working Station :
Two or Four
Max Wire :
1.2mm
Automatic Type :
Fully Automatic can handle thin wire thick wire
Condition :
New
Machine Color :
White or Per Customer Requirements
After sales :
Engineers available to service machinery overseas
Description

Straight Lamination Stator Needle Winding Machine For BLDC Motor

Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Power tool,

Refrigerator compressor,water pump automotive application , fuel pump motor

Two station BLDC Stator winding machine WIND-BLDC-2 wind the brushless DC motor stator with two station to improve efficiency, easy to change tooling

Parameter

Wire diameter:0.08 to 1.2mm

Stator OD: 12 to 130 mm

Stack height: 5 to 100mm

Four Axis, Flexible to winding,

Winding motor: Servo motor Yaskawa 3000W 1pc

Indexing motor: Servo motor Yaskawa 3000W 1pc

Wire Arraying motor: Servo motor Yaskawa 400W 2pcs

Speed: 300 to 600 RPM

Air pressure:5~7kg/square centi-meter

Power:AC380V 50/60Hz

Weight: about 1500KGS Dimension: 1100mm*900mm*1600mm

Below samples are needed for machine manufacturing and commissioning:

1. Stator stack 5pcs without winding

2. Wound stator 1pc

3. Copper wire 1 roll enough for winding 15pcs stators

Main Parts

No. Name Brand Remark
1 PLC YASKAWA CE Label
2 Servo Motor YASKAWA CE Label
3 Touch screen Weinview CE Label
4 Sensor OMRON CE Label
5 Electric units Schneider CE Label
6 Pneumatic units Airtac CE Label
7 Air pressure sensor Airtac CE Label
8 Ball bearing NSK CE Label
9 Screw guide HIWIN CE Label
10 Synchronous belt Gates CE Label
11 Power supply Mean Well CE Label
12 Tensioner Zhangli CE Label

How to produce BLDC Motor Straight Lamination Stator Stack with Needle Winding Machine

Please click below link to watch machine working

https://youtu.be/O-0UQuwvZUI

Question & Answer

The wire diameter is 0.9mm, 0.95mm which requires the insulation plate to be strong enough,
Your 3D print insulation plate is fragile,
and we will find a solulation for bridge wire to go out to fixture, In this case the bridge wire will be long,
In normal condidtion, lnsulation plate with Nylon material thickness more than 2mm is strong enough for the thick wire about 1mm,
Your reply of winding diagram and phototype cost is awaited to process further!
After Sales example
International Client E:

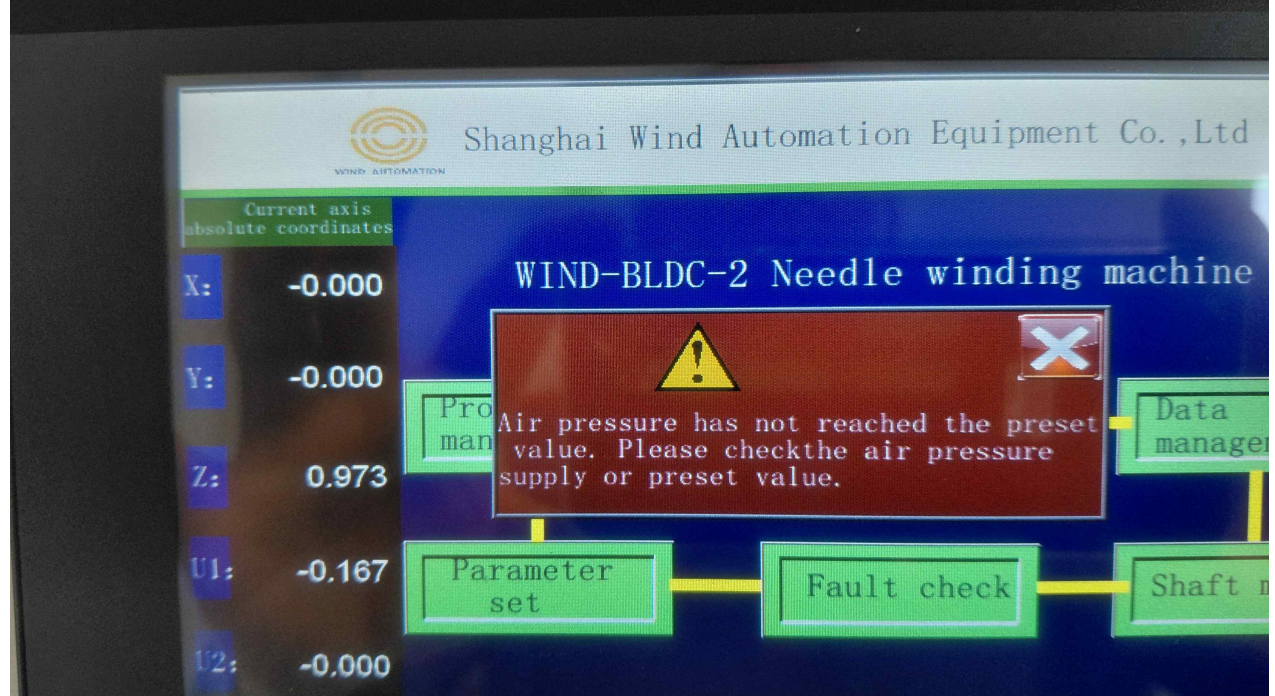

We have a problem with our needle winding machine.
Please see the attached photos.
I guess that the pressure switch is defective. Air pressure is applied
to the machine for sure.
How to produce BLDC Motor Straight Lamination Stator Stack with Needle Winding Machine
Questions:
- Can you send us a new pressure switch and what is the price?
- Can we work without this pressure switch?
- Is there a way to bridge the pressure switch?
I would be grateful for a good and quick help.
Answer from Wind Automation:
Would you please check below two ways?

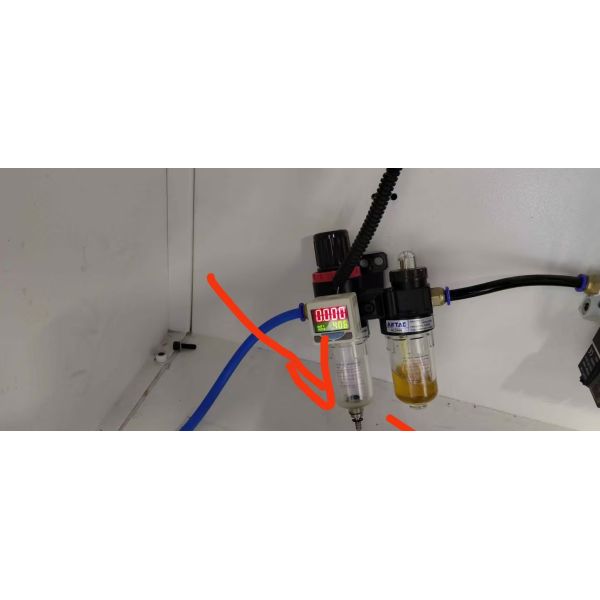

1. Check if the pressure is there at outlet location (exit for the water, red marked)
2. If there is no pressure at outlet location, then check if there is something blocked at inlet location
3. Please check if the sissor(cutter) can work or not,
How to produce BLDC Motor Straight Lamination Stator Stack with Needle Winding Machine
By the way, there is no history of pressure switch issue,
