Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine
Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine
Specifications
Brand Name :
WIND AUTOMATION
Model Number :
WIND-2-TSM
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
60 Working days
Packaging Details :
Pallet
Coil Winding and Tapping :
Not only automatically Winding,but also automatically tapping
BLDC Motor Stator Poles :
Most of Stator handled is with 6poles
Wire Gauge :
Min. 0.1mm (AWG38)
Automation type :
Fully automatic Vertical Winding
Machine Color :
White or Per Customer Requirement
After sales :
Engineers available to service machinery overseas
Description

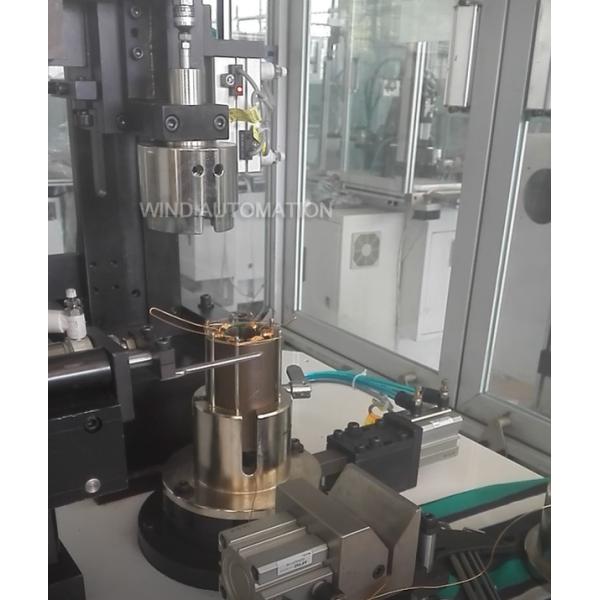

Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine WIND-2-TSM

Application:

Inslot Stator such as fan motor, washing machine motor, compressor motor, stepper motor which requires

winding and tapping

Advantages:

1. Delta PLC, Delta Servo System

2. Easy Operation with Human-Machine interference

3. Rich experience in 6,8,9,12 tooth can ensure the good performance of winding machine

and handled types of 6 tooth poles stator which need tapping

Parameter:

Wire diameter: 0.08 to 1.2mm

Stator ID: above 19mm

Stack height: 7 to 90mm

Air pressure:5~7kg/square centi-meter

Power:AC380V 50/60Hz

Weight: about 500kgs

Dimension: 1800(L)x1150(W)x1600(H)mm

Winding Cycye Time example:

1.BLDC motor for elevator door 12 poles

stator diameter inside 64.5 mm ,outside 105 mm

and 320 spire every poles

It cost around 9 to 10 minutes per piece

2. For BLDC Motor 6 poles coils

winding data 435 turns per coil,

wire 34 swg(0.234mm),

total weight of 6 coil-90grms

It takes around 7minutes/pc

That is stator output quantity 70pcs/8 hours

Please click below picture to view video

Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine

Product tags

stator needle winding machine

,

electric motor armature winding machine

,

armature winding machine
