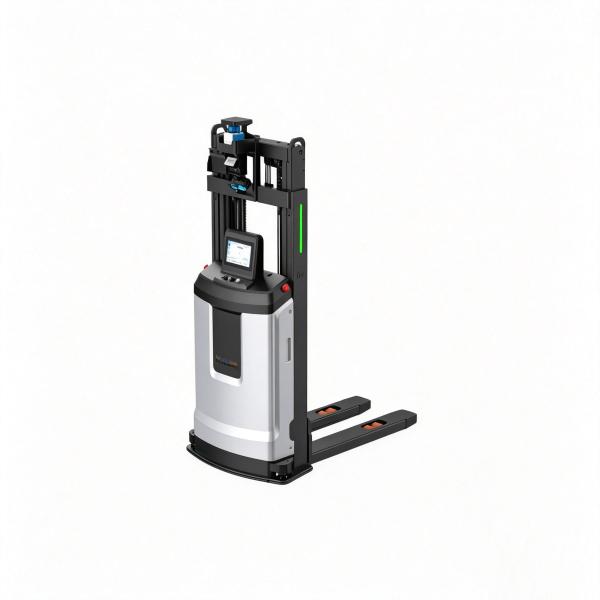

Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Forklift AMR FD150
Specifications
Description

Product details


● Support 1500 kg load, 1.5m/s no-load speed, and 1.0m/s rated load speed

● Optimize size to adapt to narrower passages and various types of vehicles

● Laser SLAM, visual fusion navigation to meet different requirements

● Multiple obstacle avoidance solutions for enhanced safety

● Support Wi–Fi with high bandwidth and low latency for more timely scheduling and command


Product parameter

Basic Parameter

  • Product Dimensions
    1735 mm×979 mm×1930 mm
  • Load Center Distance
    600 mm
  • Height of Rear Fork above Ground after Lifting
    2000mm
  • Minimum Pickup Channel
    2200mm
  • Machine Weight
    780 kg
  • Rated Load
    1500 kg
  • Machine with Packaging Dimensions
    2000 mm×1220 mm×2140 mm
  • Machine Weight with Packaging
    840 kg
  • Minimum Fork Height from Ground
    87±3mm
  • Navigation
    Laser
  • Drive
    Single Steering Wheel Drive
  • Control Mode
    Auto/Manual remote control
  • Touch Screen
    10-inch
  • Fork Size
    60mm/182mm/1150mm
  • Fork Outer Width
    620mm
  • Turning Radius
    1206mm

Mobility Performance

  • Maximum Operating Speed under No Load
    1.5m/s
  • No-load Vehicle Body Center Stopping Position Accuracy
    ±10 mm
  • Climbing Ability
    3°(5％)
  • Rated Load Operating Speed
    1.0m/s
  • No Load Stopping Angle Accuracy
    ±1°
  • Operating Mode
    Forward/Reverse+Arc Turning

Protection

  • Collision Bar Detection
    Standard
  • Emergency Stop Button
    Standard
  • Acoustic and Optical Alarm
    Standard
  • Laser Obstacle Avoidance
    Standard
  • Visual Obstacle Avoidance
    Standard
  • Tray Presence Detection
    Side
  • Tray Autonomous Identification
    Standard
  • Warning Light
    Clearance Light

Battery Performance

  • Charging Mode
    Manual/Auto
  • Rated Operating Time
    6-8h
  • Charging Time
    1.0 h

Operating Environment

  • Operating Temperature
    0℃～40℃
  • Operating Humidity
    5%–90% RH (non-condensing)
  • Communication Mode
    WiFi / 5G(optional)
