Specifications
Description

● Support 600kg load, 2.0m/s non-load speed, 1.5m/s rated load speed

● Optimize size to adapt to narrower passages and various types of vehicles

● Laser SLAM, visual fusion navigation to meet different requirements

● Multiple obstacle avoidance solutions for enhanced safety

● Support fast battery replacement, no need to wait for charging

● Support Wi–Fi with high bandwidth and low latency for more timely scheduling and command


Product parameter

Basic

  • Product Dimensions
    950 mm×650 mm×300 mm
  • Rotation Diameter
    1000 mm
  • Ground Clearance
    20 mm
  • Material Handling Method
    Customizable
  • Machine Weight
    140 kg
  • Rated Load
    600 kg
  • LCD Display
    Support
  • Touch Screen
    Support
  • Navigation
    QR code/texture/laser SLAM
  • Communication Mode
    Wi-Fi
  • Drive
    Two-wheel speed difference

Performance

  • Max. Operating Speed
    2.0 m/s
  • Maximum Operating Acceleration under No Load
    1.0 m/s²
  • No-load Vehicle Body Center Stopping Position Accuracy
    ±10 mm
  • No Load Stopping Angle Accuracy
    ±1°
  • Climbing Ability
    0.05
  • Obstacle Crossing Height
    10 mm

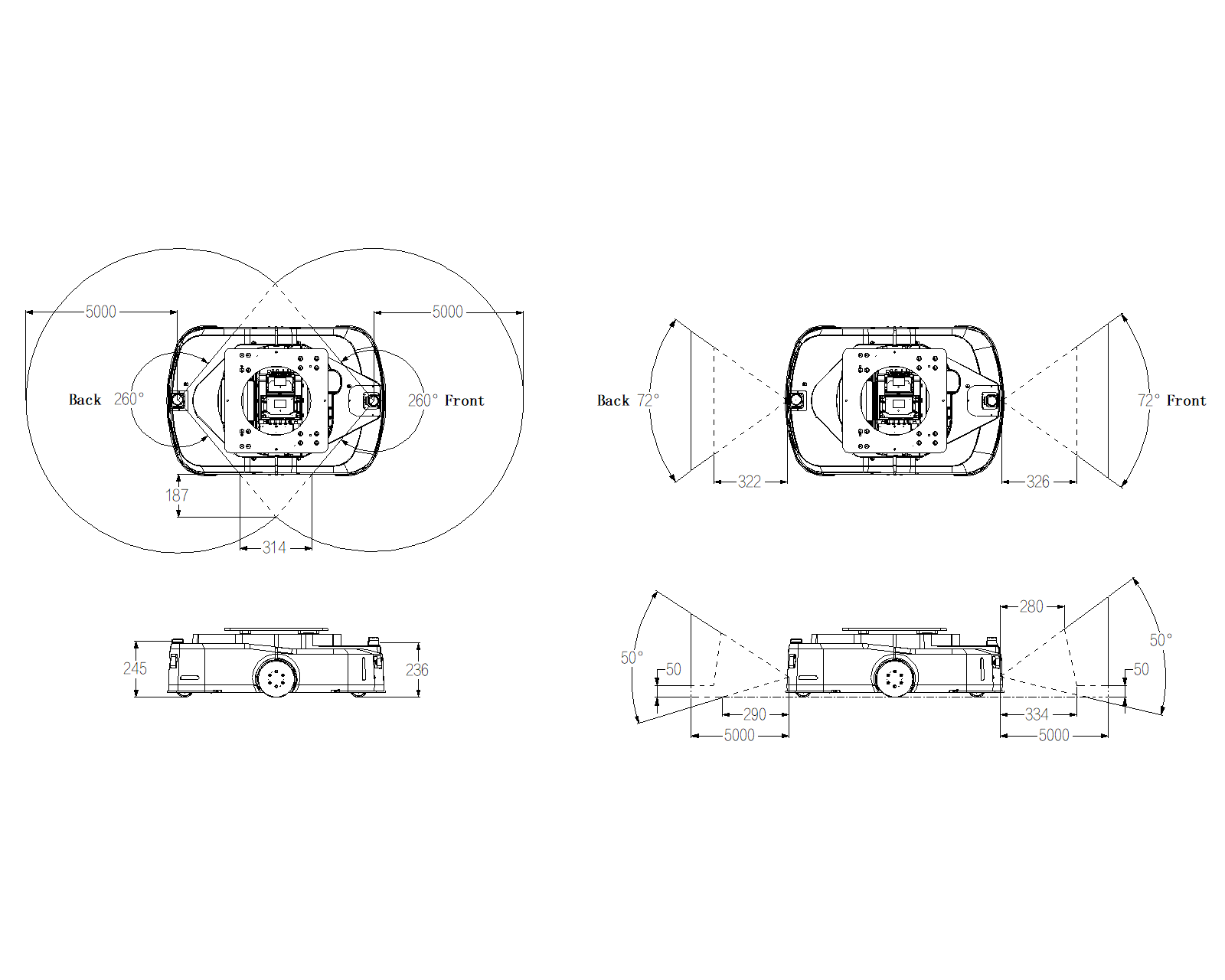

Obstacle Avoidance

  • Obstacle Avoidance Method
    Laser,TOF
  • Collision Bar Detection
    Front,rear
  • Emergency Stop Button
    Front,rear
  • Acoustic and Optical Alarm
    Support

Battery

  • Battery
    Lithium iron phosphate
  • Operating Time
    8.0 h
  • Charging Time
    1.5 h
  • Charging Mode
    Manual/automatic, manually change battery
  • Charge-discharge Cycle Life
    1500 times

Operating Environment

  • Operating Temperature
    0℃ to 40℃
  • Charging Temperature
    0℃ to 40℃
  • Operating Humidity
    5%～90% without condensation
