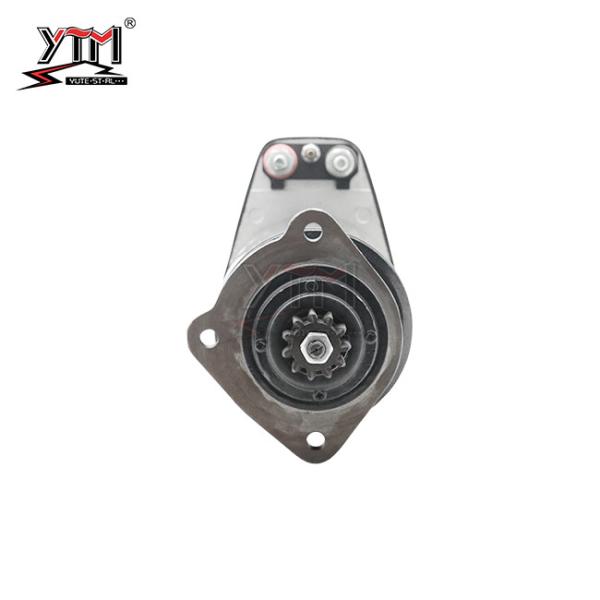

QDJ2745L 0001416036 01174645 Deutz Electric Starter Motor
QDJ2745L 0001416036 01174645 Deutz Electric Starter Motor
QDJ2745L 0001416036 01174645 Deutz Electric Starter Motor
QDJ2745L 0001416036 01174645 Deutz Electric Starter Motor
QDJ2745L 0001416036 01174645 Deutz Electric Starter Motor
QDJ2745L 0001416036 01174645 Deutz Electric Starter Motor
Specifications
Brand Name :
YTM
Model Number :
QDJ2745L
Certifiion :
ISO / TS 16949
Place of Origin :
China
MOQ :
1 PCS
Price :
58 - 80 USD per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100 pcs per month
Delivery Time :
1 - 7 days
Packaging Details :
Each with carton box , four colors are available , 2 to 4 pcs in bigger carton box.
Packing :
Carton / Wooden CAS-E / Pallet
Product Description :
24V11T5.4KW
Rotation :
CW
OE :
0001416036 01174645
Description

QDJ2745L 24V11T6.6KW 0001416036 01174645 starter motor for Deutz

Product information

Property Value
Brand YTM
Voltage (V) 24
Kilowatt (kW) 5.5
Teeth 11
Rotation CW
Flange Diameter (mm) 89
Mounting Type Flange
Mounting Holes 3
50 Terminal M6
Vehicle Manufacturer IVECO
Vehicle Manufacturer DEUTZ
Vehicle Manufacturer MAGIRUS-DEUTZ
OEM OEM Reference
BOSCH 1401101
BOSCH 1410101
BOSCH 1410111
BOSCH 1416033
BOSCH 1416036
BOSCH 986012730
BOSCH 1273
BOSCH 9000084015
BUTEC/PRESTOLITE 860655
DELCO/FORD 19024033
DEUTZ 1174645
ELMOT 6200000
LUCAS LRS00748
LUCAS LRS01862
LUCAS LRS1862
LUCAS LRS748

Make Model Type Year Info
IVECO P/PA 160-30 AH 1986 - 1989 12763cc, 306HP
IVECO P/PA 160-30 AHW 1986 - 1989 12763cc, 306HP
IVECO P/PA 170-23 AH -
IVECO P/PA 170-23 AH 1988 - 1990 13383cc, 237HP
IVECO P/PA 170-23 AHW -
IVECO P/PA 170-23 AHW 1988 - 1990 13383cc, 237HP
IVECO P/PA 170-23 ANW 1988 - 1990 13383cc, 237HP
IVECO P/PA 170-23 ANW 1990 - 1990 13383cc, 237HP
IVECO P/PA 170-23 ANW 1991 - 1993 13383cc, 237HP
IVECO P/PA 170-25 AH -
IVECO P/PA 170-25 AH 1989 - 1990 13383cc, 264HP
IVECO P/PA 170-25 AHW -
IVECO P/PA 170-25 AHW 1989 - 1990 13383cc, 264HP
IVECO P/PA 170-34 AH -
IVECO P/PA 170-34 AH 1989 - 1990 12763cc, 340HP
IVECO P/PA 170-34 AH 1991 - 1993 12763cc, 340HP
IVECO P/PA 170-34 AHW -
IVECO P/PA 170-34 AHW 1989 - 1990 12763cc, 340HP
IVECO P/PA 190-25 AH 1983 - 1986 12763cc, 256HP
IVECO P/PA 190-25 AHW 1983 - 1986 12763cc, 256HP
IVECO P/PA 190-25 AN 1983 - 1986 12763cc, 256HP
IVECO P/PA 190-25 AN 1983 - 1987 12763cc, 256HP
IVECO P/PA 190-25 AN 1986 - 1990 12763cc, 256HP
IVECO P/PA 190-25 ANT 1983 - 1986 12763cc, 256HP
IVECO P/PA 190-25 ANT 1986 - 1987 12763cc, 256HP
IVECO P/PA 190-25 ANW 1983 - 1986 12763cc, 256HP
IVECO P/PA 190-25 ANW 1983 - 1987 12763cc, 256HP
IVECO P/PA 190-25 ANW 1986 - 1990 12763cc, 256HP
IVECO P/PA 260-25 AH 1984 - 1986 12763cc, 256HP
IVECO P/PA 260-25 AH 1989 - 1992 13382cc, 264HP
IVECO P/PA 260-25 AN 1983 - 1986 12763cc, 256HP
IVECO P/PA 260-25 ANW 1983 - 1986 12763cc, 256HP
IVECO P/PA 260-30 AH 1986 - 1990 12763cc, 306HP
IVECO P/PA 260-30 AHT 1986 - 1990 12763cc, 306HP
IVECO P/PA 260-30 AHW 1986 - 1990 12763cc, 306HP
IVECO P/PA 260-34 AH 1989 - 1990 12763cc, 340HP
IVECO P/PA 260-34 AH 1991 - 1992 12763cc, 340HP
IVECO P/PA 260-34 AHT 1989 - 1990 12763cc, 340HP
IVECO P/PA 260-34 AHT 1991 - 1992 12763cc, 340HP
IVECO P/PA 260-34 AHW 1991 - 1992 12763cc, 340HP
IVECO P/PA 300-30 AH 1987 - 1989 12763cc, 306HP
IVECO P/PA 300-30 AHB 1987 - 1989 12763cc, 306HP
IVECO P/PA 330-30 AN 1986 - 1990 12763cc, 306HP
IVECO P/PA 330-30 ANW 1986 - 1990 12763cc, 306HP
IVECO P/PA 340-34 AH 1989 - 1992 12763cc, 340HP
