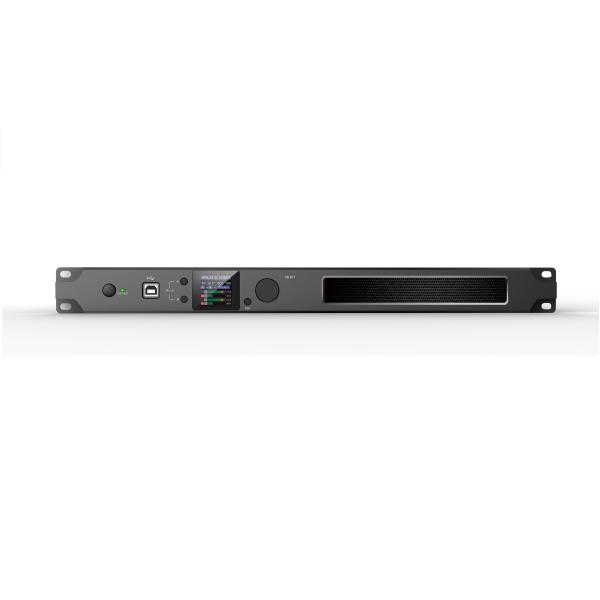

2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
Specifications
Place of Origin :
Guangdong, China
Brand Name :
HUAIN
Model Number :
HY-D2230A1
warranty :
3years
dimension :
483*300*45mm
power source :
Other
storage :
Other
output power :
2*300W@8Ω,2*500W@4Ω
connection type :
electric wire
Shell Material :
Metal
the body material :
Wood
Radio function :
NO
Product Name :
2*300W Dante Digital Power Amplifier
Application :
Professional Performance
Voltage :
100/240VAC
Dimensions :
483*300*44.5mm
Weight :
3.25 KG
Display :
240*240 pixel, IPS color screen
Frequency Response :
20Hz~20kHz(±0.5dB)1W,8Ω
Control :
TCP/IP,USB,RS485,RS232
Audio Input :
Balanced input 2*XLR; Single-ended Input 2*RCA
Keyword :
Dante
Customized :
Yes
Description
Product Description

Dante Amplifier of huain

· Using network tcp/ip control, multiple devices can be managed. · Constant voltage and constant resistance support: 100V, 70V, 8 Ω /4 Ω. · Remote switch on / off, power on/standby setting. · Adopt color LCD. · Built in DSP digital processor. · Support multiple online modes: USB, tcp/ip, RS-232, RS-485. · It can monitor the working status of power amplifier in real time and remotely. · The power amplifier can be identified by software on site. · Support balanced XLR input and unbalanced RCA input. · Support stereo, bridge, mono, free matrix mode and one key switching.
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
Specification
DSP matrix
2 × 2 Matrix
Output EQ
9-segment parametric equalization
frequency division
Butterworth, Bessel, linkwitz slope 6~48
output delay
2 × 16ms
DSP presets
30 preset positions
control mode
TCP/IP、USB、RS-485、RS-232
Network specifications
TCP/IP、1000base-T/100base-TX、RJ45
power
two × 300W@8 Ω、2 × 500W@4 Ω, bridging 1 × 1000W@8 Ω
Output impedance
Minimum 4 Ω per channel, 8 Ω in bridge mode
Input interface
Balance input 2 × XLR； Single ended input 2 × RCA
Output interface
2 × Spoken； Terminal post
Maximum input level
6dB sensitivity: 16dbu (4.9v);
Signal to noise ratio
6dB sensitivity: 94db; 0dB sensitivity: 94db;
Frequency response
20Hz ~ 20kHz
THD+N
<0.1%@1w to full power;
Operating mode
Stereo, bridge, mono, free matrix
Remote control
Remote startup, standby and DSP monitoring
Sound source topology
XLR Line-out
2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier
Parts 1. Power cord 2. One AB USB cable
