Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in
Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in
Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in
Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in
Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in
Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in
Specifications
Brand Name :
starpai
Model Number :
404-7.62-102-3
Certification :
UL, cUL, Rohs
Place of Origin :
Shenzhen
MOQ :
1000 pcs
Price :
us 1.0 - us 2.0
Payment Terms :
T/T
Supply Ability :
1000000 pcs per month
Delivery Time :
15-25 work days
Packaging Details :
bag
Material :
PA UL94-V0
Color :
Green, white, black, red, orange, by customer
Pitch :
7.62mm, 7.5mm
Rated Voltage :
300V
Rated Current :
15A
Description

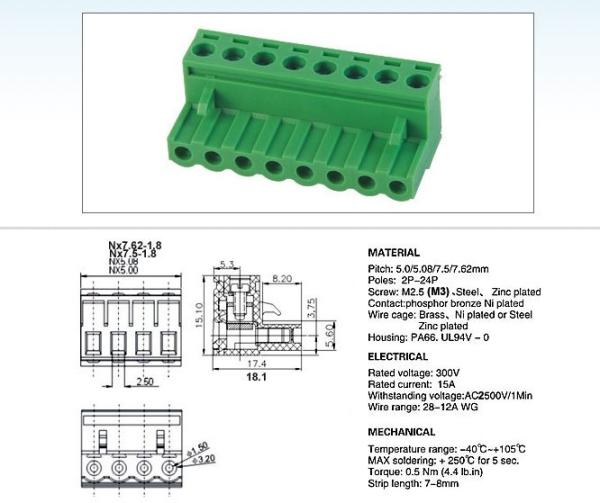

Plug-Terminal Block Head vertical connect wire Pitch:7.62mm / 0.3 in

Technical parameters
Values (range)
UL-Technical Data
pitch: 7.62mm
Rated voltage:
 300V
Rated current:
 15A
Pressure line range:
 12-30AWG
IEC-Technical Data
Overvoltage Category - Degree of pollution:
 3
Rated voltage:
 400V,630V,1000V
Rated impulse voltage:
 6KV
Rated cross-section - rated current:
 2.5mm/18A
Material
Insulating materials:
 PA
Flammability rating:
 UL94,V-0
Contact materials:
 Brass
Contact point of coating:
 Tin Platted
Other Information
PCB board aperture:
Strip length:
 6.5mm
Screws | Torque:
 M3/5lbf.in
