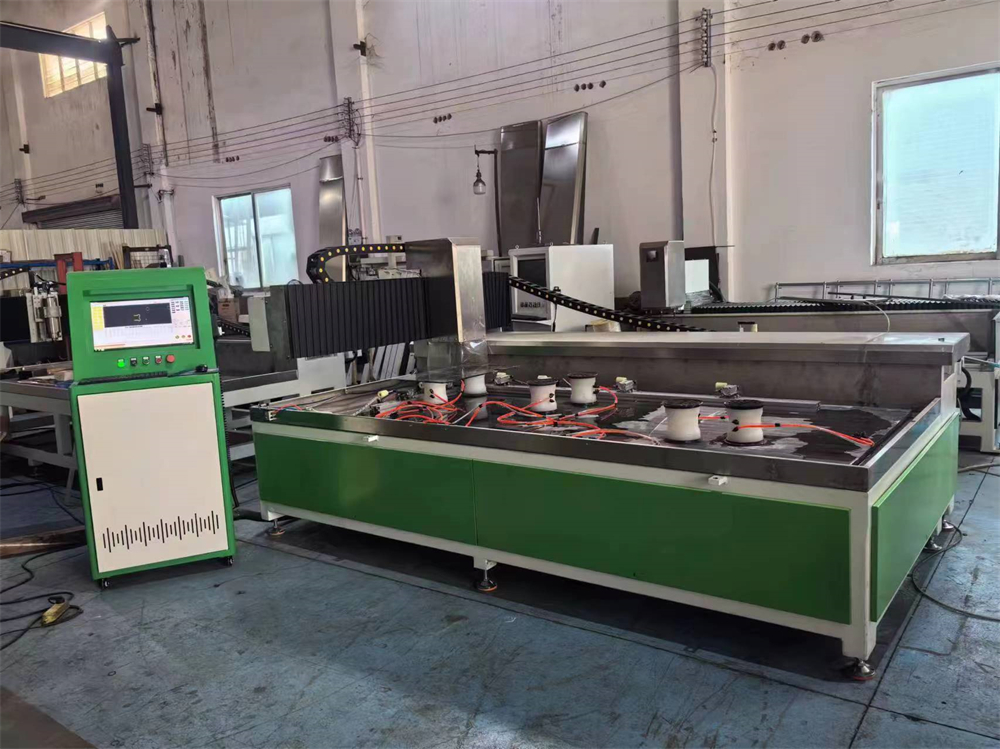

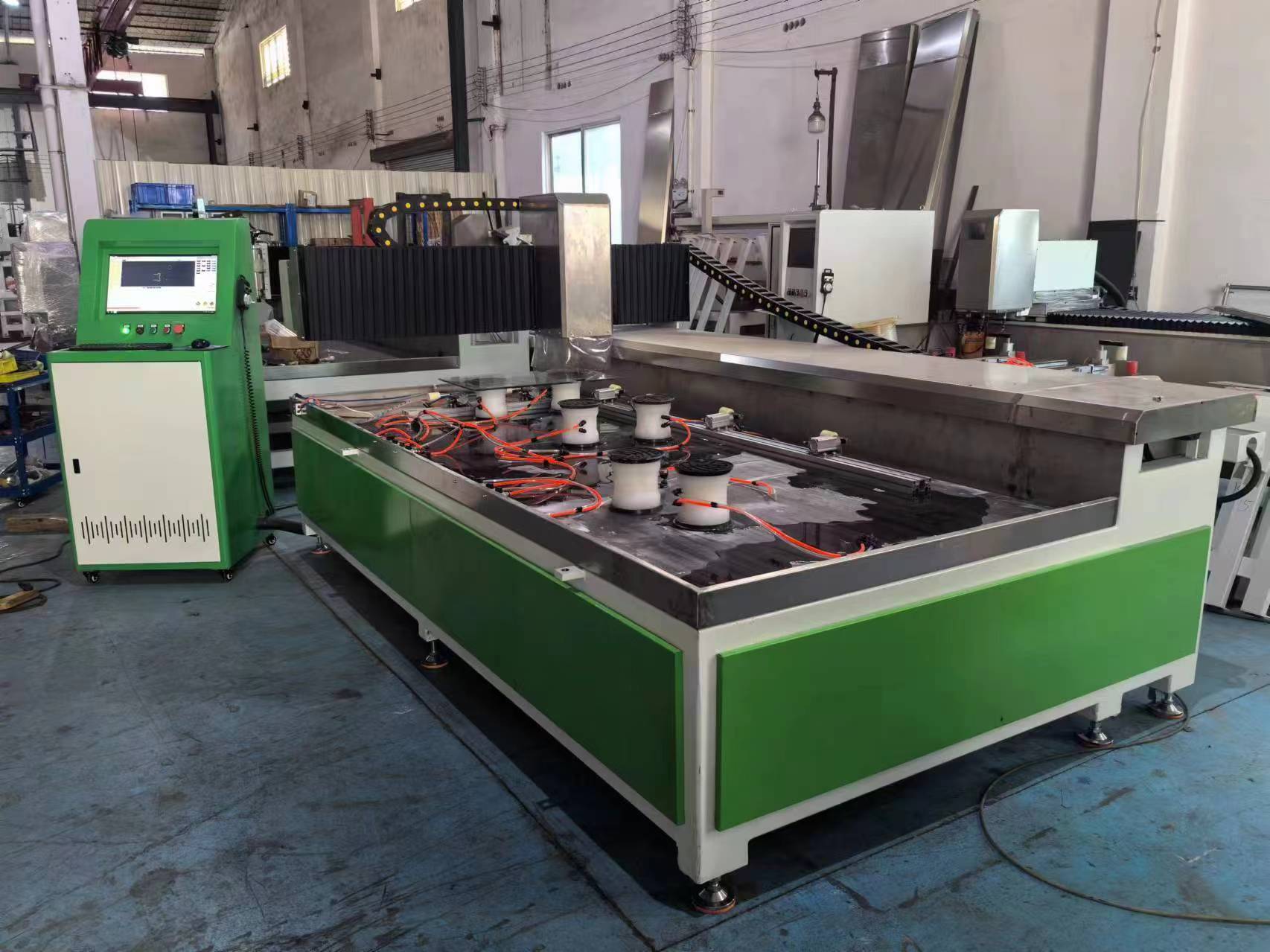

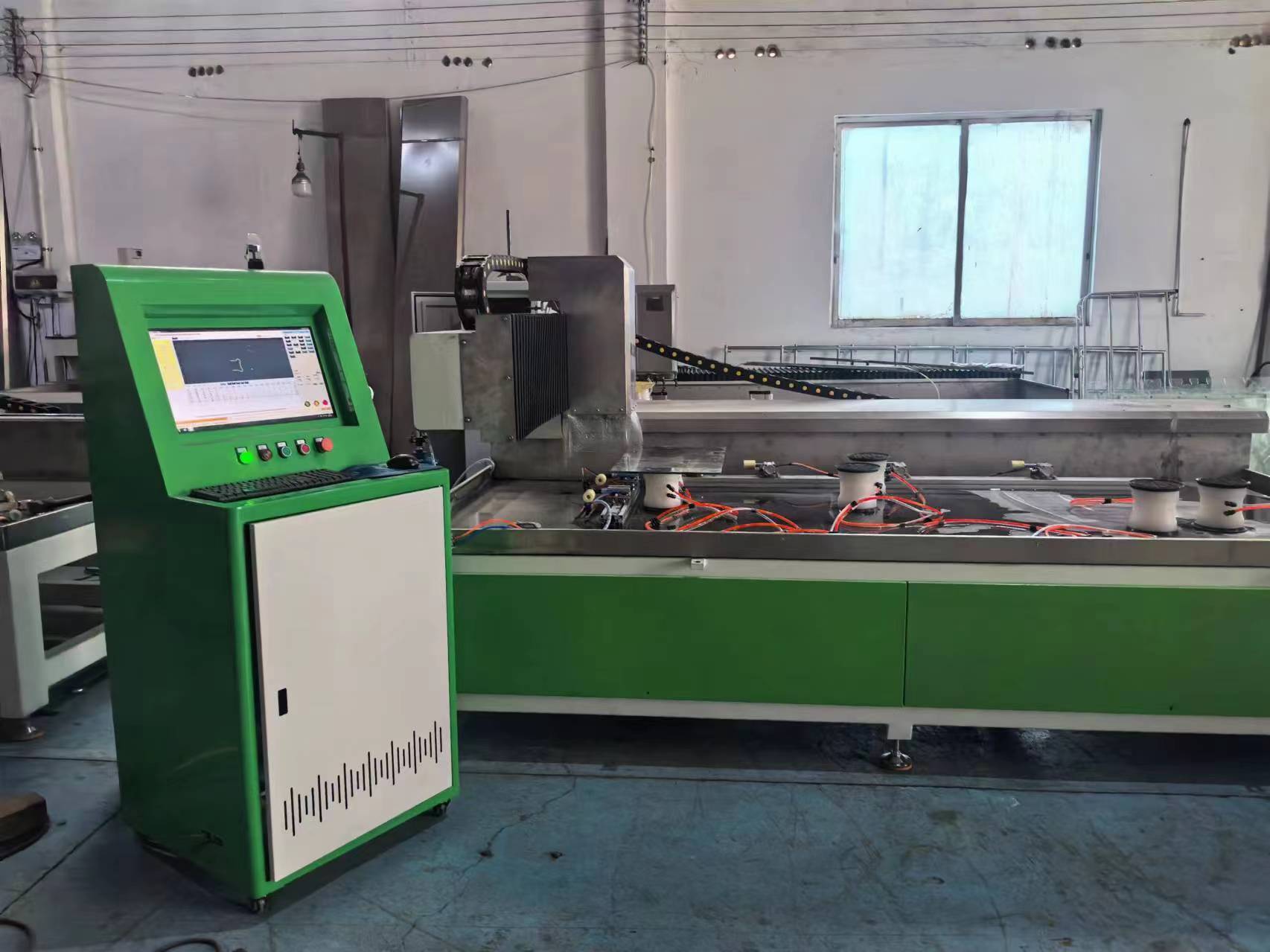

24000RPM CNC Glass Milling Machine 13.6KW 220V 380V For Glass Processing
24000RPM CNC Glass Milling Machine 13.6KW 220V 380V For Glass Processing
24000RPM CNC Glass Milling Machine 13.6KW 220V 380V For Glass Processing
24000RPM CNC Glass Milling Machine 13.6KW 220V 380V For Glass Processing
Specifications
Model Number :
ST-XC1025
Frame Material :
Steel or cast iron
MOQ :
1
Delivery Time :
20 days
Working Area :
Variable, e.g., 1200mm x 2400mm
Price :
$8500-$12500USD/SET
Spindle Power :
Variable, typically 3-10 kW
Certification :
CE
Power Supply :
220V/380V, 50/60Hz
Supply Ability :
20Set each month
Brand Name :
Foshan star
Drive System :
Servo motor or stepper motor
Packaging Details :
protective fim
Place of Origin :
China
Spindle Speed :
Up to 24,000 RPM
Payment Terms :
L/C,T/T,Western Union
Name :
Glass Milling Machine
Description
24000 RPM CNC Glass Milling Machine with 3-4 Axis Control for Glass Processing
Product Description
Glass milling machines typically integrate multiple functions such as drilling, milling, slotting, cutting, edge grinding, and polishing. The equipment can accurately complete complex processes such as milling straight and curved lines, radial polishing of edges, and cutting at vertical or 45 ° angles on flat glass.
The equipment adopts a CNC numerical control system to achieve multi axis linkage and continuous contour trajectory control. Using high-precision linear guides, ball screws, and high-speed electric spindles (with a maximum speed of over 12000rpm), combined with pneumatic suction cups or clamping devices, to ensure that the glass does not shift during high-speed processing, achieving perfect processing without edge breakage and high precision.
Product Features
1. Multi process composite processing, one-time molding
The glass milling machine highly integrates various processes such as drilling, milling, slotting, excavating, grinding edges, and polishing. The equipment can achieve "one-time clamping, full process processing", completely avoiding the accuracy deviation caused by multiple handling and repositioning, greatly improving production efficiency. This characteristic makes it an ideal choice for processing architectural glass such as frameless doors, curtain walls, bathroom glass, and stair guardrails.
2. High rigidity structure and precision transmission ensure machining accuracy
Glass is a hard and brittle material that requires extremely high stability for machine tools. The bed of modern glass milling machines often adopts thick walled square tube welding or cast iron structure, and undergoes aging treatment and finite element analysis optimization to ensure that the natural frequency avoids the processing frequency and resonance. Combined with high-precision linear guides, ball screws, and high-power high-speed electric spindles (with a maximum speed of 12000rpm), it can ensure that the glass does not shift during high-speed milling, achieving high-precision positioning at the ± 0.05mm level, and the edges are not easily broken.

3. Intelligent CNC system and parameterized programming, with minimal operation


The equipment is generally equipped with advanced CNC control systems, supporting multi axis linkage and continuous contour trajectory control. Combined with specialized CAM programming software, the system has a rich built-in graphics library that supports size driven parametric drawing. Operators only need to input basic dimensions such as length, width, and aperture, and the system can automatically generate the optimal processing path, greatly reducing reliance on manual experience and making operations as convenient as using a smartphone.

Product Specifications

Machining accuracy ±0.1mm
Machine size 2800×2200×1600mm
Glass thickness range 3-19mm
Max glass size 1500×3000mm
Stroke X axis 2500mm
Stroke Y axis 1000mm
Spindle 7.5KW
Spindle speed 24000rpm
Servo motor 0.75KW×3
Feed rate 0-1M/Min
Precision ±0.2mm
Power 13.6KW
Machine weight 1600Kgs
