Openwork configuration: The entire system incorporates six variable-frequency drives and one servo control system.

Product Features

Independent drive system with continuously variable frequency speed regulation; equipped with a coating recognition device that effortlessly identifies coated glass and Low-E glass. The rear section of the cleaning chamber is constructed from stainless steel to prevent rusting.

Vertical glass Clean part

The cleaning chamber is constructed from stainless steel, and its base features a double-layer integrated molding design, ensuring long-term water resistance.

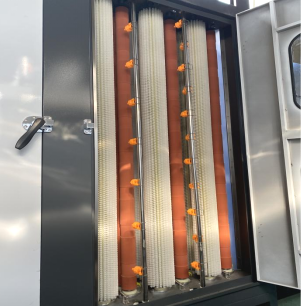

The brush is made of high-temperature resistant 1010 bristle material and is suitable for cleaning Low-E or coated glass. The conveying roller is constructed from acid-and alkali-resistant rubber, and features an active gear drive mechanism for more stable material transport.

Soundproofing cotton + Fresh air filter

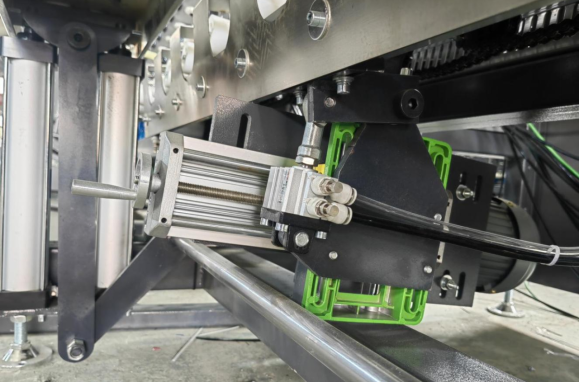

The wind blade's position can be adjusted both forward and backward; this allows for customization based on the glass thickness, preventing the blade from coming into contact with excessively curved glass.

Water tank cleaning: water heating with dry-burn prevention and a circulating air filtration system; the air-drying section is equipped with soundproofing cotton.

Type X valve high-pressure circulation fan

The high-pressure circulation fan, equipped with a ᾏ-shaped valve, can be automatically switched on or off depending on the glass position, thereby preventing dust accumulation.

Standard Backplate (03) or Open-Grille Design (04) – choose freely according to your requirements.

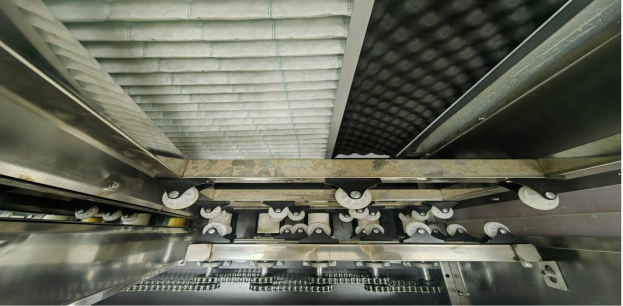

Features a patented innovative support wheel with fully integrated bearings, extending service life and enhancing
stability. Available in two-, three-, four-layer, and louvered glass configurations.

The 05 combined segment utilizes servo motor control, offering higher precision – Servo Motor Control.
