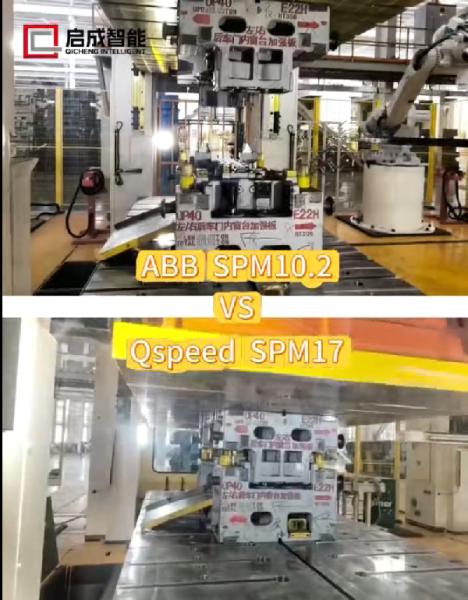

High Speed Stamping Press Line For Auto Parts
High Speed Stamping Press Line For Auto Parts
Specifications
System Press Tonnage Range :
4000 kN – 12500 kN (400 Ton – 1250 Ton options)
Energyefficiency :
Optimized
Feature :
Custom
Materialprocessed :
Steel, Aluminum, and other metal sheets
Precisiontolerance :
±0.1 mm
Linelength :
20 to 50 meters
Primaryfunction :
Metal Stamping
Applicationindustry :
Automotive, Electronics, Manufacturing
Pressforce :
500 to 3000 tons
Material Thickness Range :
0.5 mm – 4.5 mm (Automotive high-tensile steel compliant)
Size :
Compact
Productioncapacity :
Up to 1000 parts per hour
Weight :
1500 kg
Productname :
Automotive Stamping Line
Installationtime :
4 to 8 weeks
Application :
Auto Parts Stamping
Product name :
Auto Parts Stamping Press Line
Stampingforce :
Up to 1000 kN
Bolster Bed Dimensions (L x W) :
3200 mm × 1600 mm / 5000 mm × 2000 mm
Presstype :
Hydraulic or Mechanical Press
Automationlevel :
Fully automated with robotic handling
Description
High Speed Stamping Press Line For Auto Parts
The continuous evolution of vehicle architectures necessitates a major shift toward lightweight materials and complex structural geometries. Meeting these structural and safety requirements demands an exceptionally rigid and reliable high speed stamping press line for auto parts. This heavy-duty system is meticulously engineered to handle the massive breakthrough shock and reverse tonnage inherent in forming Advanced High-Strength Steels (AHSS) and structural aluminum alloys.
Built on a low-deflection, tie-rod tightened frame, the entire press line incorporates advanced dynamic balancing weights to neutralize vertical and horizontal micro-vibrations during high-velocity production runs. By seamlessly syncing automated heavy-duty decoilers, precision loop controllers, multi-roll NC servo straighteners, and high-speed blanking or progressive die systems, this integrated manufacturing solution delivers an uninterrupted, fully automated workflow from raw material coil to palletized finished components.
Technical Specifications
Technical Parameters & Metrics Industrial Performance Capabilities
System Press Tonnage Range 4000 kN - 12500 kN (400 Ton - 1250 Ton options)
Slide Stroke Frequency 40 - 120 Strokes Per Minute (SPM) continuous variable
Bolster Bed Dimensions (L x W) 3200 mm × 1600 mm / 5000 mm × 2000 mm
Material Thickness Range 0.5 mm - 4.5 mm (Automotive high-tensile steel compliant)
Slide Positioning Precision Within ±0.01 mm with electronic micro-adjustments
Coil Feeding Tolerance ±0.05 mm via synchronous NC servo roll feeder
Overload Protection System Fast-acting Hydraulic Overload Protection (HOLP) ≤10 ms
Industrial Control Platform Centralized PLC Control with Multi-Axis Touch HMI
Advantages & Automotive Applications
Deploying an industrial-grade high speed stamping press line for auto parts allows manufacturers to optimize shop floor throughput while satisfying strict international quality auditing protocols.
Equipment Advantages & Engineering Values:
  • High-Velocity Structural Throughput: Reaches processing speeds up to 120 cycles per minute, delivering the high volume required for large-scale automotive manufacturing contracts.
  • Rigid Multi-Point Slide Guiding: Utilizes an extended 8-point square needle-roller guiding layout that limits lateral slide deviation, preserving critical tolerances during eccentric loading.
  • Energy-Efficient Servo-Drive integration: Features high-torque variable frequency motors and energy-recovery capacitors, reducing power consumption peaks by up to 30% during rapid acceleration phases.
  • Rapid Tooling Transition (QDC): Outfitted with moving bolsters, hydraulic die lifters, and electronic proximity sensors to facilitate fast tool changes, maximizing overall equipment effectiveness (OEE).
Typical Automotive Production Implementations:
  • Structural Body-in-White (BIW): High-precision crossmembers, side sill reinforcements, A/B/C pillars, and roof headers.
  • Chassis & Suspension Assemblies: Heavy-duty control arms, sub-frame brackets, and shock absorber housing mounts.
  • Powertrain & Drive Components: Multi-stage engine mounting plates, transmission clutch plates, and timing gear cases.
  • Electric Vehicle (EV) Specific Components: High-volume battery pack enclosure panels, cooling plate frames, and high-purity copper busbars.
Frequently Asked Questions
Q1: How does this high speed stamping press line for auto parts manage the micro-cracking issues commonly associated with stamping ultra-high-strength automotive steels?
A: Micro-cracking in high-tensile automotive parts is caused by excessive impact velocity and improper material deformation speeds. Our specialized high speed stamping press line for auto parts addresses this issue by combining high-rigidity frames with a modified slide velocity profile. By slowing tool engagement at the point of impact, the material flows uniformly into the die cavities without exceeding its tensile limits. Additionally, the integration of micro-precision NC loop control prevents material jerking, ensuring consistent blank tension and zero structural stress fractures.
Q2: What monitoring technologies are used in the high speed stamping press line for auto parts to protect expensive progressive dies from multi-feed sorting errors?
A: Tooling protection is vital for automotive manufacturing profitability. The high speed stamping press line for auto parts is equipped with a digital, real-time multi-channel tonnage monitoring array. This safety system samples pressure curves at every single millimeter of the press stroke. If an acoustic or pressure anomaly is detected--such as a material misfeed, slug pulling, or a double-sheet condition--the system sends an emergency signal to the hydraulic clutch-brake assembly. This halts the press within milliseconds, preventing costly die damage and minimizing unplanned downtime.
Q3: Can this high speed stamping press line for auto parts be configured for fully digital manufacturing environments and MES tracking?
A: Yes, the system is designed for modern smart factories. The industrial control architecture of the high speed stamping press line for auto parts is built on open communication protocols like OPC UA and Modbus TCP. Every operational parameter, including real-time tonnage, motor temperature profiles, stroke counts, and error logs, is digitized and exported to factory Manufacturing Execution Systems (MES). This allows automotive quality managers to map the exact press telemetry data to each specific production batch for full product traceability.
