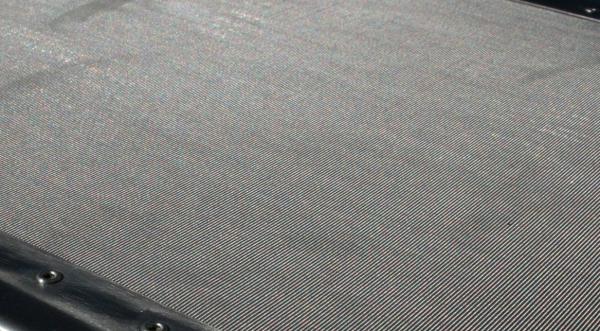

Ultra Fine Dutch Weaving Stainless Steel Woven Wire Mesh High Accuracy Long Wear Life
Ultra Fine Dutch Weaving Stainless Steel Woven Wire Mesh High Accuracy Long Wear Life
Ultra Fine Dutch Weaving Stainless Steel Woven Wire Mesh High Accuracy Long Wear Life
Ultra Fine Dutch Weaving Stainless Steel Woven Wire Mesh High Accuracy Long Wear Life
Specifications
Place of Origin :
Hengshui,China
MOQ :
1 roll
Price :
7-200 us dollar per square meter
Supply Ability :
3000 rolls per month
Packaging Details :
Inside waterproof paper,outside wooden carton
Material :
Stainless steel wire
Mesh size :
2 mesh-500meshes
Wire diameter :
0.018mm-2.05mm
Method :
Hot Dipped or Electro Galvanized Bef.or Afterweave
Width :
0.5-6.5m
Length :
30m or customized
Weave :
Plain,twill,dutch
HS code :
73144000
Description

Stainless Steel Dutch Weave Wire Mesh,Dutch Woven Stainless Steel Wire Mesh for Filtter Good Price

www.stainlesssteelwiremeshfactory.com.

For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high-quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
2.Specifications

Type Mesh/Inch Wire diameter Absolute Filtration Finess µm Nominal Filtration Finess µm
Plain Dutch Weave Wire Mesh 8*85-80*400 0.014''*0.0126''- 0.0049''*0.0028'' 318-340 to 43-48 250-255 to 35-40
Twill Duntch Weave Wire Mesh 20*250 - 325*1400 0.0098''*0.0079'' - 0.0015''*0.0010'' 110-120 to 8-9 98-105 to 2-3


Advantages we have:
1.More than 10 Experiences supplier
2.We are Alibaba trade assurance,factory recognized by "CE/FSC/ISO9001" and so on.
3.T/24 service for you,all the question will be dealed anytime.
Benifit you get:
1.Stable quality:Coming from good material
2.Low price:No cheapest but the lowest at the best quality.
3.Good service:Satisfactory service before and after sale.
4.Delievey time:10-20 days for mass production

Weaving type: Plain weave, twill weave, Dutch weave (plain), Dutch weave (twill).

Ultra Fine Dutch Weaving Stainless Steel Woven Wire Mesh High Accuracy Long Wear Life

Specification of dutch wire mesh

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear Inch Diameter of Wire Width of Opening Open
Area, %
Inches mm Inches mm
10 x 10 0.047 1.2 0.053 1.34 28.1
10 x 10 0.035 0.9 0.065 1.65 42.3
10 x 10 0.032 0.8 0.068 1.27 46.2
10 x 10 0.025 0.63 0.075 1.90 56.3
12 x 12 0.041 1.0 0.042 1.06 25.4
12 x 12 0.035 0.9 0.048 1.22 33.2
12 x 12 0.032 0.8 0.051 1.29 37.5
12 x 12 0.028 0.7 0.055 1.39 43.6
12 x 12 0.023 0.58 0.060 1.52 51.8
14 x 14 0.032 0.8 0.039 1.52 29.8
14 x 14 0.025 0.63 0.046 0.99 41.5
14 x 14 0.023 0.58 0.048 1.22 45.2
14 x 14 0.020 0.5 0.051 1.30 51.0
16 x 16 0.028 0.7 0.035 0.89 30.5
16 x 16 0.023 0.58 0.040 1.01 39.9
16 x 16 0.018 0.45 0.045 1.14 50.7
18 x 18 0.020 0.5 0.036 0.91 41.1
18 x 18 0.018 0.45 0.038 0.96 48.3
20 x 20 0.023 0.58 0.027 0.68 29.2
20 x 20 0.020 0.5 0.030 0.76 36.0
20 x 20 0.018 0.45 0.032 0.81 41.0
20 x 20 0.016 0.40 0.034 0.86 46.2
24 x 24 0.014 0.35 0.028 0.71 44.2
28 x 28 0.010 0.25 0.026 0.66 51.8
30 x 30 0.013 0.33 0.020 0.50 37.1
30 x 30 0.012 0.30 0.021 0.53 40.8
35 x 35 0.012 0.30 0.017' 0.43 33.8
35 x 35 0.010 0.25 0.019 0.48 42.4
40 x 40 0.014 0.35 0.011 0.28 19.3
40 x 40 0.012 0.30 0.013 0.33 27.4
40 x 40 0.010 0.25 0.015 0.38 36.0
40 x 40 0.0095 0.24 0.016 0.40 38.4
50 x 50 0.009 0.23 0.011 0.28 30.3
60 x 60 0.0075 0.19 0.009 0.22 30.5
70 x 70 0.0065 0.17 0.008 0.20 29.8
80 x 80 0.0070 0.18 0.006 0.15 19.4
80 x 80 0.0055 0.14 0.007 0.17 31.4
90 x 90 0.0055 0.14 0.006 0.15 25.4
100 x 100 0.0045 0.11 0.006 0.15 30.3
120 x 120 0.0040 0.10 0.0043 0.11 26.6
120 x 120 0.0037 0.09 0.005 0.12 30.7
150 x 150 0.0026 0.066 0.0041 0.10 37.4
165 x 165 0.0019 0.048 0.0041 0.10 44.0
180 x 180 0.0023 0.058 0.0032 0.08 33.5
180 x 180 0.0020 0.050 0.0035 0.09 41.1
200 x 200 0.0020 0.050 0.003 0.076 36.0
200 x 200 0.0016 0.040 0.0035 0.089 46.0
220 x 220 0.0019 0.048 0.0026 0.066 33.0
230 x 230 0.0014 0.035 0.0028 0.071 46.0
250 x 250 0.0016 0.040 0.0024 0.061 36.0
270 x 270 0.0014 0.040 0.0022 0.055 38.0
300 x 300 0.0012 0.030 0.0021 0.053 40.1
325 x 325 0.0014 0.040 0.0017 0.043 30.0
325 x 325 0.0011 0.028 0.0020 0.050 42.0
400 x 400 0.0010 0.025 0.0015 0.038 36.0
500 x 500 0.0010 0.025 0.0011 0.028 25.0
635 x 635 0.0009 0.022 0.0006 0.015 14.5

Woven type Mesh size Wire diameter Opening size
Plain dutch 7X40mesh 0.90X0.71mm 347μm
7X44mesh 0.71X0.63mm 319μm
8X45mesh 0.80X0.60mm 310μm
8X85mesh 0.45X0.315mm 275μm
8.5X60mesh 0.63X0.45mm 296μm
10X76mesh 0.50X0.355mm 248μm
10X90mesh 0.45X0.28mm 275μm
12X64mesh 0.56X0.40mm 210μm
12X86mesh 0.45X0.315mm 211μm
12.5X76mesh 0.45X0.355mm 192μm
14X76mesh 0.45X0.355mm 173μm
14X100mesh 0.40X0.28mm 182μm
14X110mesh 0.355X0.25mm 177μm
16X100mesh 0.40X0.28mm 160μm
16X120mesh 0.28X0.224mm 145μm
17X120mesh 0.355X0.224mm 155μm
20X110mesh 0.355X0.25mm 126μm
20X140mesh 0.315X0.20mm 133μm
20X170 mesh 0.25X0.16mm 130μm
22X120 mesh 0.315X0.224mm 115μm
24X110mesh 0.355X0.25mm 97μm
25X140 mesh 0.28X0.20mm 100μm
28X150mesh 0.28X0.18mm 92μm
30X140 mesh 0.315X0.20mm 77μm
30X150mesh 0.25X0.18mm 82μm
35X170mesh 0.224X0.16mm 69μm
35X190mesh 0.224X0.14mm 74μm
40X200mesh 0.18X0.135mm 63μm
45X250mesh 0.16X0.11mm 56μm
50X250mesh 0.14X0.112mm
