DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs
DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs
DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs
DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs
Specifications
Brand Name :
Huiding
Model Number :
40341
Certification :
ISO9001
Place of Origin :
Yantai, Shandong, China
MOQ :
100Sets
Price :
USD2-7.96Set
Payment Terms :
L/C, T/T
Supply Ability :
200000 Sets Per Month
Delivery Time :
15 work days
Product Name :
latch type toggle clamp
Type :
Pull Action Latch
Material :
Carbon Steel
Structure :
Spring Clamp
Color :
Red Grip ,silver zinc plated
Standard :
Standard
Weight :
664g
Application :
For connection of dust collection duct and fittings, Sanitary pipe clamp, Holding, carpentry clamping tool/other Heavy Clamping
Description
DK40341 W1 Pull Action Latch Type Industrial Quick Release Toggle Clamp 2000 Lbs Holding Capacity

Product description of quick release toggle clamp

Miniature Latch clamp with a threaded U bolt for adjustability

Material:Steel, Zinc Plated,stainless steel

Oil and Stain resistant red hand grips

Holding Capacity:990KG

DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs

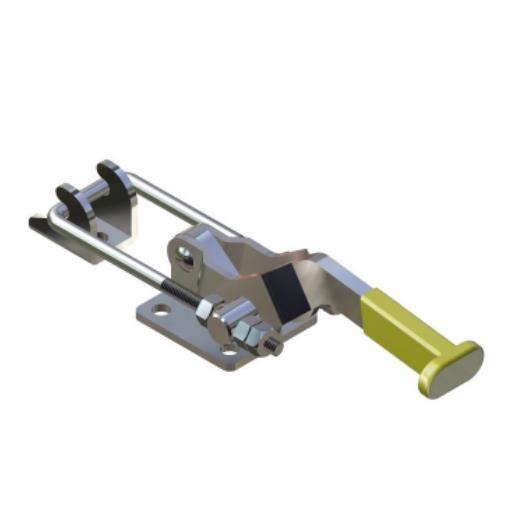

Detailed Drawings

DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs

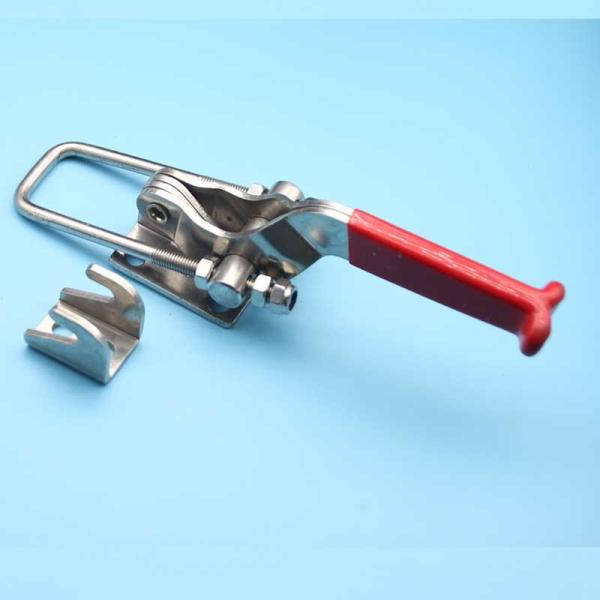

Product detail pictures

DK40341 W1 Latch Type Quick Release Toggle Clamps Holding Capacity 2000lbs

Product advantages

1. This quick release heavy duty toggle clamp is assembled and formed by stamping, and the surface of cold-rolled steel is not easy to rust after electroplating.

2. The rivets of toggle clamp are strong and stable, and the riveting process is strictly required.

3. The adjusting shaft is made of stainless steel by die-casting, with high bearing capacity.

4. The high temperature die-casting PVC handle of toggle clamp is not easy to wear and does not hurt the hand, and the color of the handle can be customized.

Product parameters

Model Material Surface Traitment Weight Dimension
DK40341 Iron Zinc-plated 655g Length:280mm
Width:51mm
Thickness:3mm
DK40341 ss304 Polished 655g Length:280mm
Width:51mm
Thickness:3mm
Product tags

latch type toggle clamp

,

toggle clamp latch

,

toggle latch clamp
