Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
Specifications
Brand Name :
Huiding
Model Number :
DK057-W6
Certification :
ISO9001
Place of Origin :
Yantai, Shandong, China
MOQ :
100Sets
Price :
USD0.63-3.2SET
Payment Terms :
L/C, T/T
Supply Ability :
200000 Sets Per Month
Delivery Time :
15 work days
Product Name :
Adjustable Stainless Steel Draw Latch
Material :
SS201,SS304,SS316, Stainless Steel
Finish :
polish
Oem :
Acceptable
Description

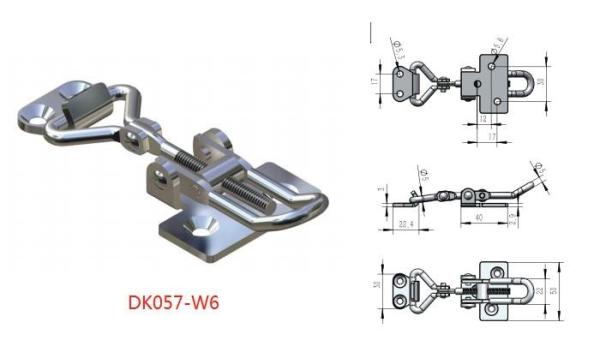

DK057-W6 Large Adjustable Range Metal Stainless Steel Toggle Latch For Vehicle

Product Description

The DK057 Series is a Y shaped threaded rod.The entire series includes the following models:

Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
DK057-G1 DK057-G2
Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
DK057-T1

DK057-T2
Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
DK057-W1 DK057-W2
Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle
DK057-W5 DK057-W6

The adjustable toggle latch (draw latch) is generally adjusted by the threads of two threaded rods, one is a Y-shaped threaded rod, and the other is a U-shaped threaded rod.

By adjusting the length of the threaded rod to adjust the tightening force, the threaded adjustable buckle is generally made of two materials, one is the cold-rolled plate material. The other material is stainless steel, which is formed by stamping stainless steel plates.

Product details of adjustable toggle latch

Large Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For VehicleLarge Chrome Plated Metal Toggle Latch 304 316 Y Shaped Threaded Rod For Vehicle

Product series features

Model Type of threaded rods With Keyhole Material
DK057-G1 Y-type Yes SPCC,SUS201,SUS304,SUS316
DK057-G2 Y-type Yes SPCC,SUS201,SUS304,SUS316
DK057-T1 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-T2 Y-type Yes SPCC,SUS201,SUS304,SUS316
DK057-W1 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-W2 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-W5 Y-type No SPCC,SUS201,SUS304,SUS316
DK057-W6 Y-type No SPCC,SUS201,SUS304,SUS316

Differences in stainless steel

304 stainless steel toggle latch contain 18% chromium and 8% nickel, while 316 grade stainless steel buckles are made from a material containing 16% chromium, 11% nickel and 2.5% molybdenum for significantly improved corrosion resistance. For best results, we also polished the 316 steel hasp lock as it further enhances corrosion resistance. The polished surface also gives a higher surface finish and is easier to clean.

Quality Control

1. The quality inspection of raw materials includes indicators such as steel plate hardness;
2. Regular data detection of products, such as length, width, height and weight;
3. Product bearing capacity test;
4. Salt spray test to test the corrosion resistance of products.
