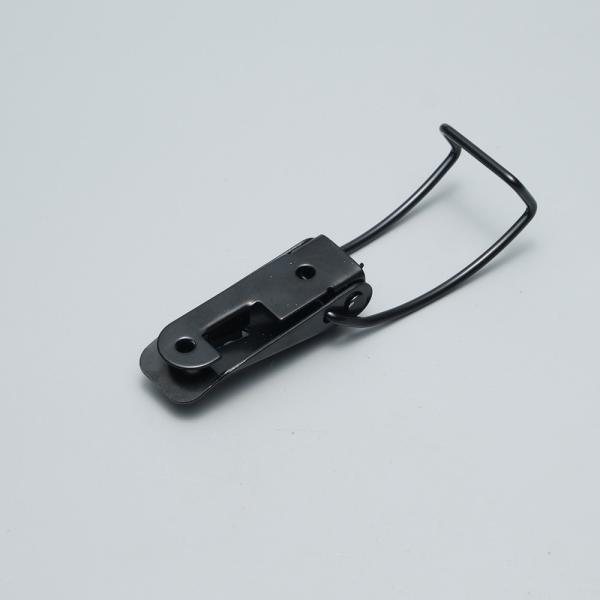

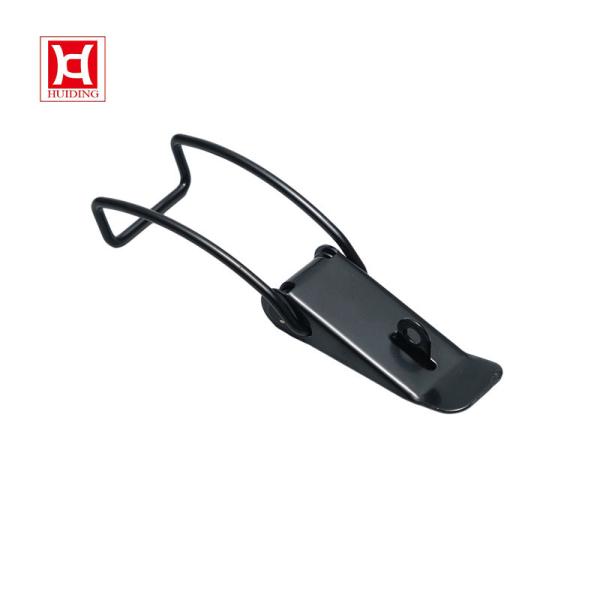

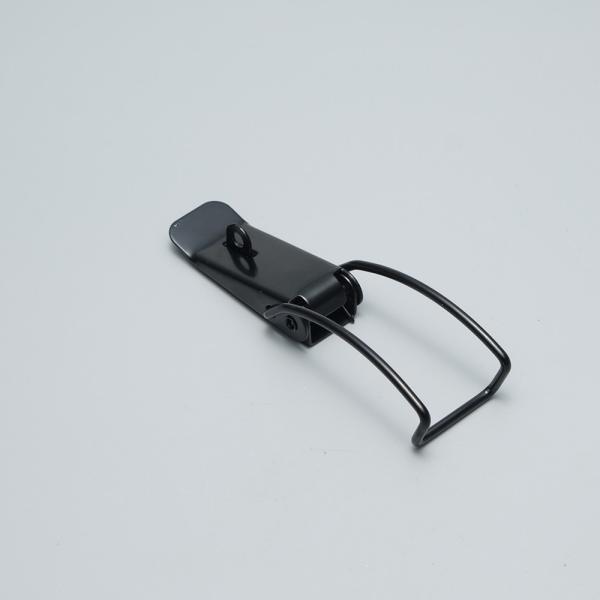

DK020G Black Spring Loaded Toggle Latch Zinc Plated
DK020G Black Spring Loaded Toggle Latch Zinc Plated
DK020G Black Spring Loaded Toggle Latch Zinc Plated
DK020G Black Spring Loaded Toggle Latch Zinc Plated
DK020G Black Spring Loaded Toggle Latch Zinc Plated
DK020G Black Spring Loaded Toggle Latch Zinc Plated
Specifications
Brand Name :
Huiding
Model Number :
DK020 G
Certification :
ISO9001
Place of Origin :
Yantai, Shandong, China
MOQ :
100Sets
Price :
USD1.03Set
Payment Terms :
L/C, T/T
Supply Ability :
200000 Sets Per Month
Delivery Time :
15 work days
Product Name :
Stainless Steel Spring Loaded Toggle Latch
Material :
Metal, steel,stianless steel, sus201,sus304
Finish :
Zinc plated, Black Oxide, galvanized,polish
Type :
Spring Toggle Latch
Service :
OEM
Port :
Qingdao
Description
DK020G Black Spring Loaded Toggle Latch Zinc-Plated

Product description

A spring loaded toggle latch is a mechanism used to fasten two objects together. It consists of a spring-loaded toggle that is attached to one object and a latch that is attached to the other object. When the toggle is pushed through a hole in the other object, the spring inside the toggle compresses, causing the toggle to fold in half and then spring back to its original shape inside the hole. This secures the two objects together and provides a strong hold. The latch is then used to lock the toggle in place. Spring toggle latches are commonly used in construction and engineering applications, as well as in furniture and cabinetry.

DK020G Black Spring Loaded Toggle Latch Zinc Plated

Drawing Of Dk020 Black Toggle Latch

DK020G Black Spring Loaded Toggle Latch Zinc Plated

Detailed parameters

Model Material Surface Traitment Weight Dimension
DK020 Iron Nickel-plated 48g Length:113.2mm
Width:34.5mm
Thickness:1.5mm
DK020 ss201 Polished 48g Length:113.2mm
Width:34.5mm
Thickness:1.5mm
DK020 ss304 Polished 48g Length:113.2mm
Width:34.5mm
Thickness:1.5mm

DK020G Black Spring Loaded Toggle Latch Zinc Plated

Product Quality Control

1. The quality inspection of raw materials includes indicators such as steel plate hardness;
2. Regular data detection of products, such as length, width, height and weight;
3. Product bearing capacity test;
4. Salt spray test to test the corrosion resistance of products.

Precautions

1. Don’t use rain or acid to wash the surface.

2.Don’t use a polisher to polish this product.

3.Don’t change the hole spacing of the product casually to avoid unnecessary damage.

4.Don’t replace the parts of the product at will, so as not to cause damage to the product.

5.Please use it according to the load-bearing capacity of the product to avoid unnecessary losses caused by overloading.

6. If the product is to be welded, please use non-finished products for operation to avoid high temperature burning of the electroplating layer.
