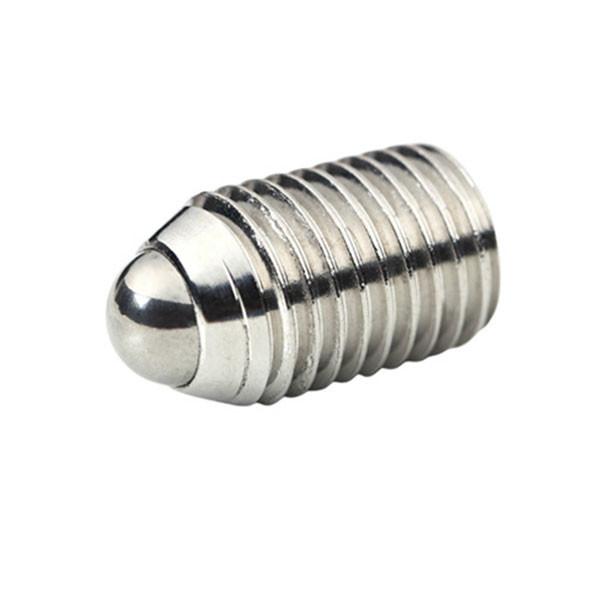

M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel
M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel
M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel
M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel
Specifications
Brand Name :
Huiding
Model Number :
HD-4036-M4
Place of Origin :
Shandong, China
MOQ :
1000Sets
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
100000pieces/month
Delivery Time :
10-15 days
Packaging Details :
carton
Product Name :
retractable spring plunger
Material :
Stainless Steel 304
Spring load :
Standard
Thread lock :
Without thread lock
Finish :
Polish/Black oxide
Keyword1 :
retractable spring plunger
Keyword 2 :
ball nose spring plunger
keyword 3 :
threaded spring plunger
Description

M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel

Description of Spring Plunger

Spring Plunger with pin and internal hexagon, (also known as retractable spring plunger, ball nose spring plunger, threaded spring plunger) is used for positioning, indexing, locking, latching as well as for other similar pressure applications.

It can be used for locating or for applying pressure, as a detent or for ejection.

This spring plunger is a positioning assembly made of three parts: pin, body and spring.

The optional length of M4 retractable ball nose spring plunger model is 6mm, 8mm, 10mm, 12mm, 16mm, 20mm.

M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel

Product Parameters of Spring Plunger

M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel

Model Width of opposite side of inner hexagonal External diameter Lenght Diameter ball Travel Spring force
initial pressure
A (MM) B (MM) C (MM) D (MM) E(MM) Min.-Max. (N)
M4-6 2 0.7 6 2.5 0.8 3.0-15.0
M4-8 2 0.7 8 2.5 0.8 3.0-15.0
M4-10 2 0.7 10 2.5 0.8 3.0-15.0
M4-12 2 0.7 12 2.5 0.8 3.0-15.0
M4-16 2 0.7 16 2.5 0.8 3.0-15.0
M4-20 2 0.7 20 2.5 0.8 3.0-15.0

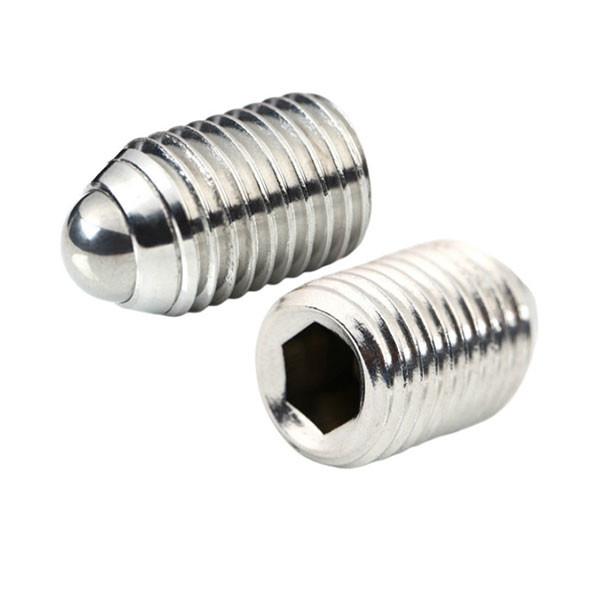

Product display of Spring Plunger

M4 Ball Nose Retractable Spring Plunger With Ball Stainless Steel

FAQ

1.Q:Delivery time?

A:We always keep hot-selling goods in stocks. When you place the order, we could send you within 3days.
If no ready goods,we could finish within 15-20days depending items.

2.Q: Are you trading company or manufacturer ?

A: We are factory.

Do you accept special order (custom order) ?

Yes , but details like measurement,quality, material are request.

How long is your delivery time?

2-3 days for in stock products . contact the sales for out of stock products.
